Summary
- Weight:16 ton
- Dimension(L*W*H):4800*2356*3330mm
- Power(W):86kW
- Model Number:XP163
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:20%
- Travel Speed:4-17.5km/h
- Static Linear Pressure:621N/cm
- Type:pneumatic tire roller
- Certification:CE/ISO9001
Specifications
- Weight:16000.000kg
- Condition:New
- Moving Type:Wheel
- Diesel tank volume:150L
- Rated power:86kW
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

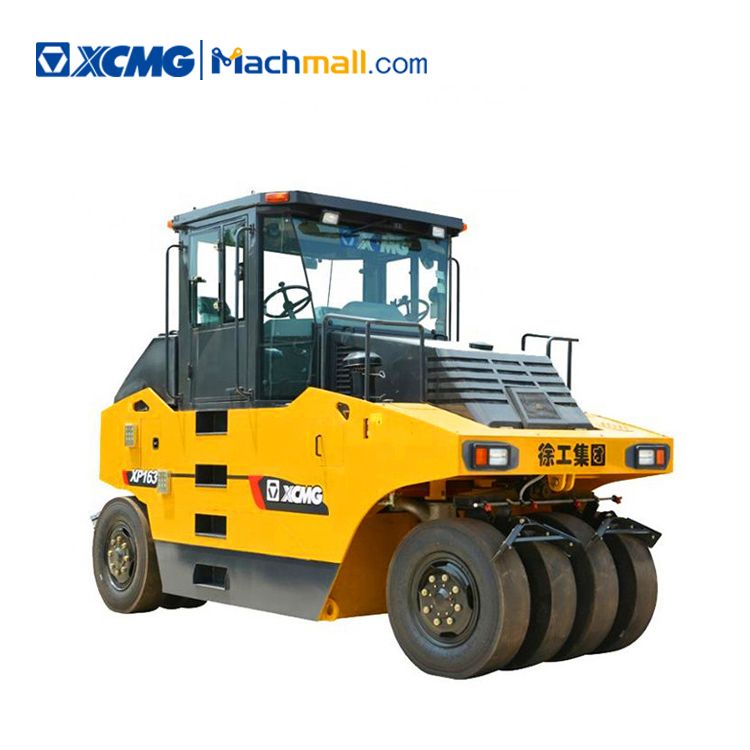

16 ton XCMG pneumatic tire roller XP163.
XCMG tire roller XP163 is self-propelled static roller, which is applicable to compacted asphalt pavement, foundation layer, secondary foundation layer and flling engineering and is the indispensable compaction equipment of road construction and water conservancy construction.
In particular, compaction of asphalt surface course of highways can obtain compaction effect that other compaction machinery cannot reach.
Performance Characteristics:
1. Flexible compacting function of tire can make compaction material obtain dense pavement surface course.
2. XCMG tire roller XP163 to enhance compaction performance and enlarge the scope of application.
3. Compacted sandy soil, composite soil and clay soil can obtain good compaction effect to avoid false compaction phenomenon.
4. Full hydraulic steering, air-assist hydraulic brake and multi-gear shifting transmission system are utilized, fast and flexible. It is more convenient for transfer between construction sites.
5. XCMG tire roller XP163 has water spray system as standard that can spray water to the tire surface to effectively prevent asphalt adhesion. Optional intemittent spraying function is available.
|
Item |
Unit |
XP163 |
|
|
Maximum operating mass |
kg |
16000 |
|
|
Ground pressure |
kPa |
150~ 300 |
|
|
Travel speed |
Gear I |
km/h |
4 |
|
Gear II |
km/h |
8.3 |
|
|
Gear II |
km/h |
17.5 |
|
|
Theoretical gradeability |
% |
20 |
|
|
Minimum turning radius |
mm |
7330 |
|
|
Minimum ground clearance |
mm |
260 |
|
|
Compaction width |
mm |
2250 |
|
|
Overlapped volume of roller |
mm |
45 |
|
|
Tires |
Specification |
|
11.00-20 |
|
Quantity |
|
Front 4 rear 5 |
|
|
Engine |
Type |
|
SC4H115.4G2B |
|
Rated power |
kw |
86 |
|
|
Fuel consumption |
g/kw.h |
≤205 |
|
|
Total length |
mm |
4800 |
|
|
Total width |
mm |
2356 |
|
|
Total height |
mm |
3330 |
|
|
Diesel tank volume |
L |
150 |
|
|
Water tank volume |
L |
650 |
|
