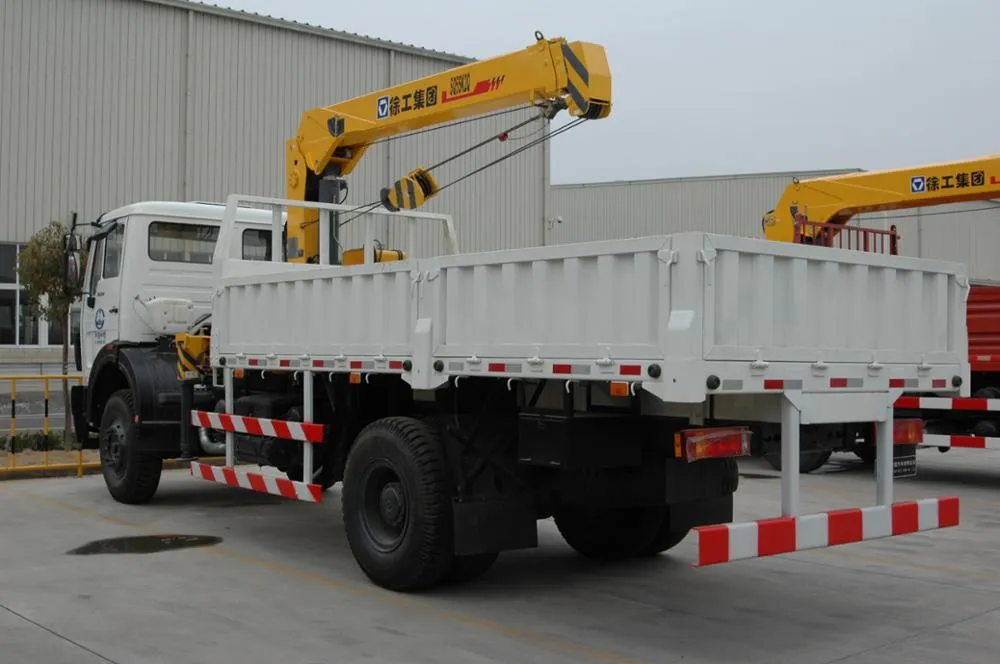

XCMG Official Telescoping Boom Crane SQ5SK3Q for sale
Summary
- Model Number:SQ5SK3Q
- Place of Origin:China
- Span:2280-5100mm
- Max. Lifting Height:12.6m
- Max. Lifting Load:5000kg
- cerBrand Name:XCMG
Specifications
- Weight:2280.000kg
- Condition:New
- Moving Type:Wheel
- Max.Lifting Moment:12.5t*m
- Max. Lifting Capacity:5000kg
- Boom Length:4.09～11.2m
- Max. Lifting Height:12.6m
- Derricking range:0-75°
- Weight:2280kg
- Dimension:4365×2430×3017mm
- Outrigger span:2280-5100mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
SQ5SK3Q Telescoping Boom Crane
1.Throttle Control System
Changing the form of previous manipulation and throttle operation individually，Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady，it can easily to carry out the lifting work.
2.End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer’s vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3.Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks，the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4.Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle，to avoid all kinds of accidents caused by swaying.
5.Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
|
Unit |
Parameter value |
|||
|
Max Lifting Moment |
t*m |
12.5 |
||
|
Max Lifting Capacity |
kg |
5000 |
||
|
Boom Length |
m |
4.09～11.2 |
3.94～11.2 |
|
|
Max Lifting Height |
m |
12.6 |
||
|
Derricking range |
° |
0～75° |
0～78° |
|
|
Outrigger span |
mm |
2280～5100 |
2280～5100 |
|
|
Size（length×width×height） |
mm |
4365×2430×3017 |
4282×2430×3134 |
|
|
Crane Weight |
kg |
2280 |
2100 |
|
