Summary
- Rated Speed:5.0/2.7km/h
- Max Digging Radius:6245mm
- Maximum Digging Depth:4070mm
- Maximum Digging Height:7120mm
- Bucket capacity:0.33m³
- Operating Weight:7730Kg
- Model Number:XE80D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:7730.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

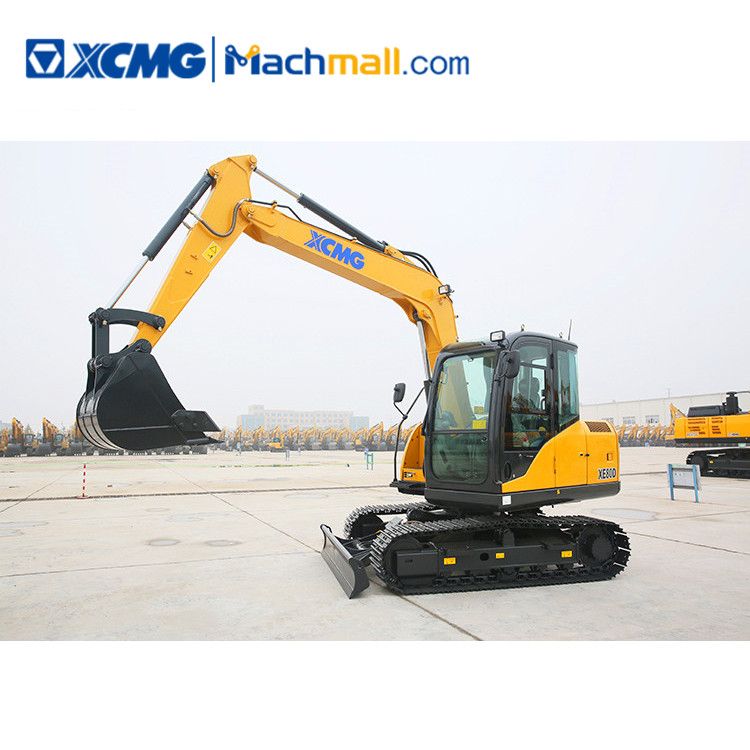

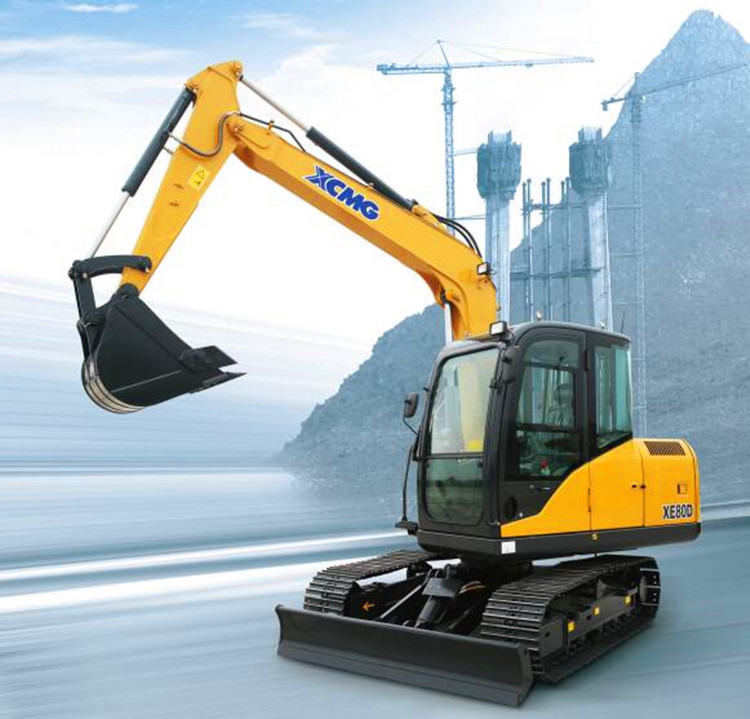

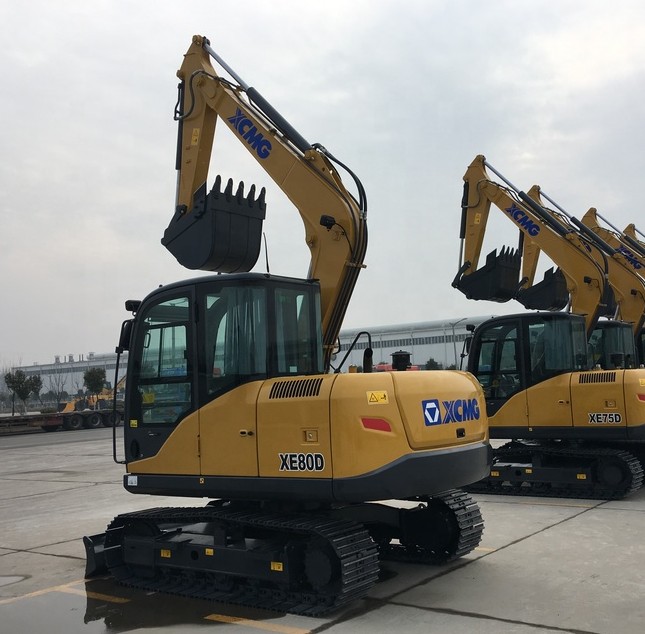

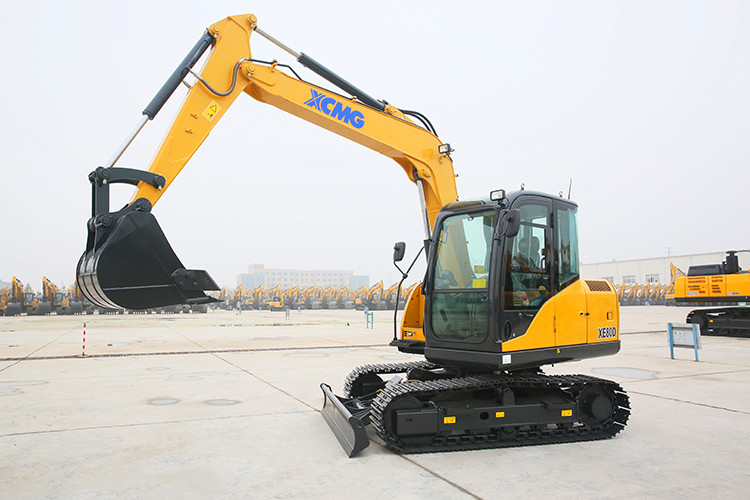

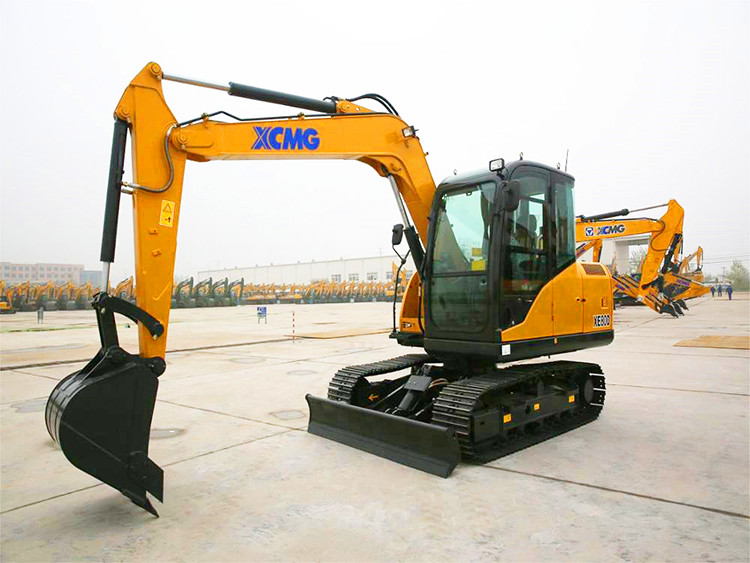

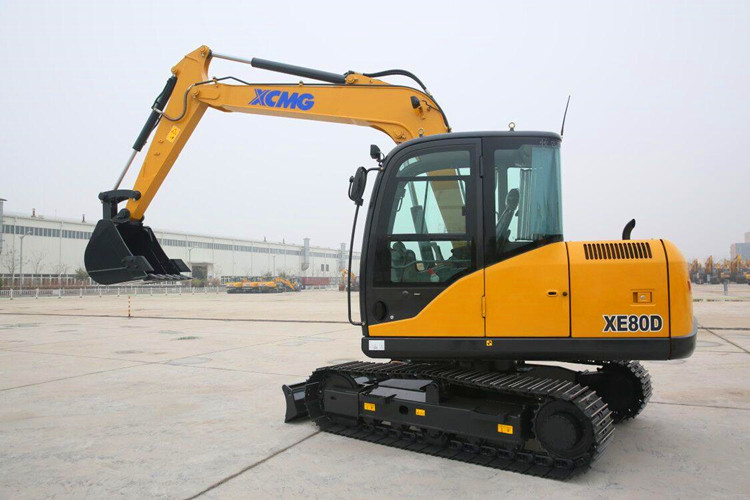

8 ton XCMG small crawler excavator XE80D.
XCMG small crawler excavator XE80D use of Yanmar naturally aspirated engine widely used in the industry, with the features of small displacement, low fuel consumption, low-speed and large-torque, is perfectly matched the excavator operation conditions.XCMG small crawler excavator XE80D uses direct injection technology with good oil adaptability. The mechanical speed regulation is upgraded to electronic speed regulation, the speed control is more stable, not only reduce the fuel consumption, but also effectively reduce the "black smoke" from the engine.
[Advantages and Highlights]
1. The new generation XE80D bucket capacity is enhanced more 10% than C Series products, the bucket capacity is increased to 0.33m3, improving the working efficiency of earthmoving operation.
2. The larger fuel tank capacity, with ultra-low fuel consumption level, extends the machine's continuous operation time.
3. According to the improved and upgraded hydraulic system, the hydraulic tank capacity is re-optimized, which is 11% lower than the C Series products, significantly reducing the machine maintenance costs.
|
Sales model |
Unit |
XE80DA |
|
|
Operating weight |
Kg |
7730 |
|
|
Bucket capacity |
m³ |
0.33 |
|
|
Engine |
Model |
/ |
4TNV98-ZCSXG |
|
No. of cylinders |
/ |
4 |
|
|
Output power |
kw/rpm |
46.3/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
239.1/1650 |
|
|
Displacement |
L |
3.319 |
|
|
Main performance |
Travel speed |
km/h |
5.0/2.7 |
|
Swing speed |
r/min |
11 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
34.85 |
|
|
Bucket digging force |
kN |
57 |
|
|
Arm digging force |
kN |
38 |
|
|
Maximum traction |
kN |
68.3 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
176 |
|
Main safety valve pressure |
MPa |
28 |
|
|
Travel system pressure |
MPa |
27.4 |
|
|
Rotary system pressure |
MPa |
20.6 |
|
|
Pilot system pressure |
MPa |
3.5 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
137 |
|
Hydraulic tank capacity |
L |
82 |
|
|
Engine oil capacity |
L |
12 |
|
|
Appearance size |
A Overall length |
mm |
6215 |
|
B Overall width |
mm |
2280 |
|
|
C Overall height |
mm |
2690 |
|
|
D Width of platform |
mm |
2260 |
|
|
F Overall width of chassis |
mm |
2200 |
|
|
G Track width |
mm |
450 |
|
|
H Length to center of rollers |
mm |
2195 |
|
|
I Track gauge |
mm |
1750 |
|
|
J Counterweight clearance |
mm |
800 |
|
|
K Min. ground clearance |
mm |
373 |
|
|
Working scope |
A Max. digging height |
mm |
7120 |
|
B Max. dumping height |
mm |
5160 |
|
|
C Max. digging depth |
mm |
4070 |
|
|
E Max. vertical wall digging depth |
mm |
3120 |
|
|
F Max. digging radius |
mm |
6245 |
|
|
G Min. swing radius |
mm |
1800 |
|
|
Standard configuration |
Length of boom |
mm |
3720 |
|
Length of arm |
mm |
1622 |
|
|
Bucket capacity |
m³ |
0.33 |
|
|
Bucket capacity |
m³ |
0.20 Narrow bucket |
|
