Model: XE200DA
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG second hand crawler excavator XE200DA
XCMG second hand crawler excavator XE200DA
Quantity:
- + /Set

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XE200DA
Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
Model Number
Brand Name
Place of Origin
Machine Weight
Maximum Digging Depth
Maximum Digging Height
Bucket capacity
Operating Weight
Max Digging Radius
Rated Speed
Certification
Used Equipment
XE200DA
XE200DA
XCMG
Fujian Province
20000 kg
6460 mm
9680 mm
0.93 m³
20 Ton
9790 mm
5.3/2.9 km/h
--
+   Add a Product
+   Add a Product

Summary

  • Model Number:XE200DA
  • Brand Name:XCMG
  • Place of Origin:Fujian Province
  • Machine Weight:20000 kg
  • Maximum Digging Depth:6460 mm
  • Maximum Digging Height:9680 mm
  • Bucket capacity:0.93 m³
  • Operating Weight:20 Ton
  • Max Digging Radius:9790 mm
  • Rated Speed:5.3/2.9 km/h

Specifications

  • Weight:20000.000kg
  • Condition:Used
  • Moving Type:Other
  • Area: Fujian Province
  • Brand:XCMG
  • Model:XE200DA
  • Type:Crawler excavator
  • Working_condition:other
  • YEAR:Jun 2020
  • Used_hours:4073

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Delivery Port:Any Port In China





XCMG second hand crawler excavator XE200DA



Working conditions: municipal engineering, commercial housing, farmland water conservancy, new rural construction, highway and bridge construction;   Optional accessories such as crushing pipes, crushing hammers, mechanical quick-change, hydraulic quickchange, etc. can be installed to broaden the application field of the machine.

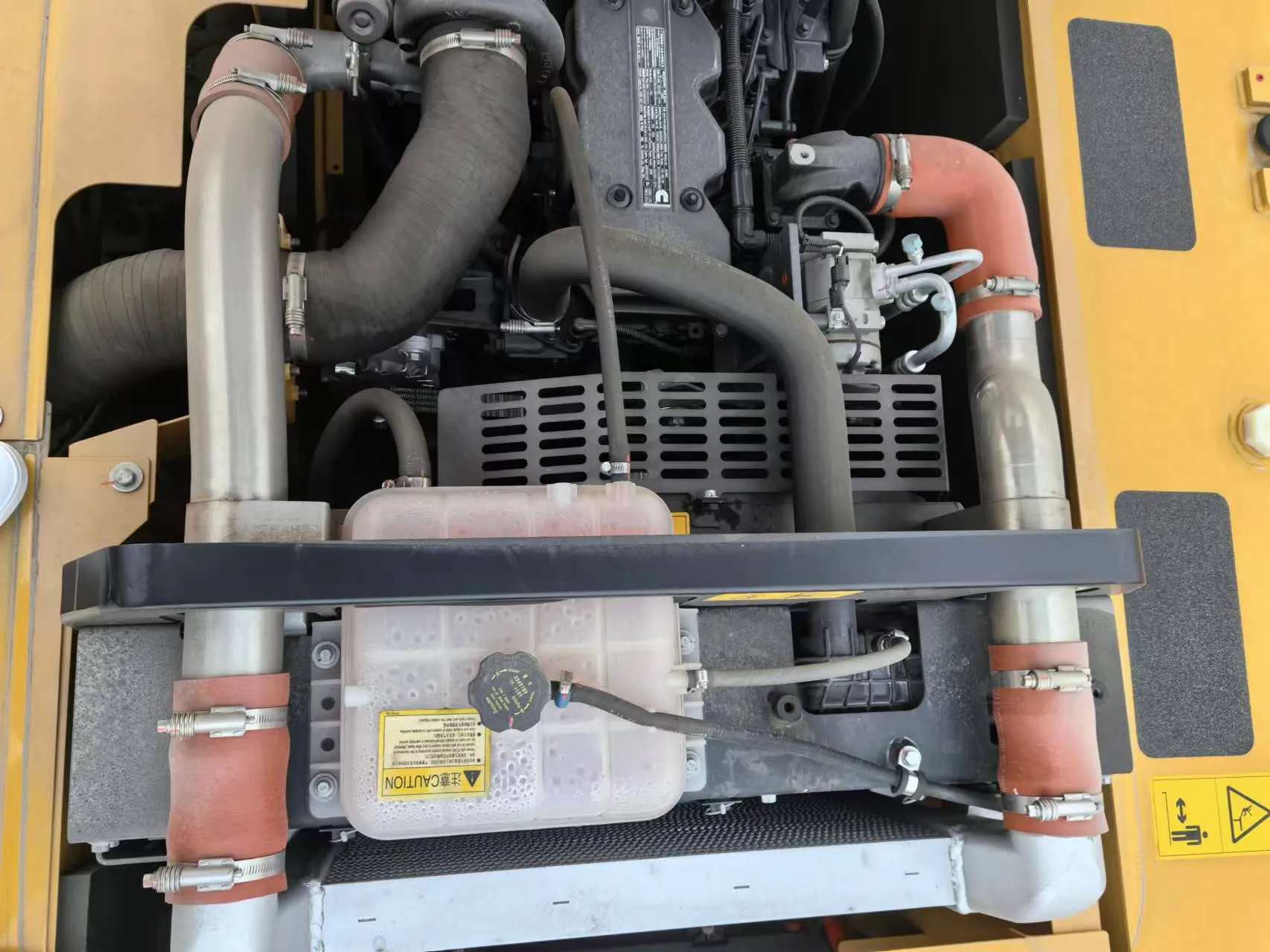

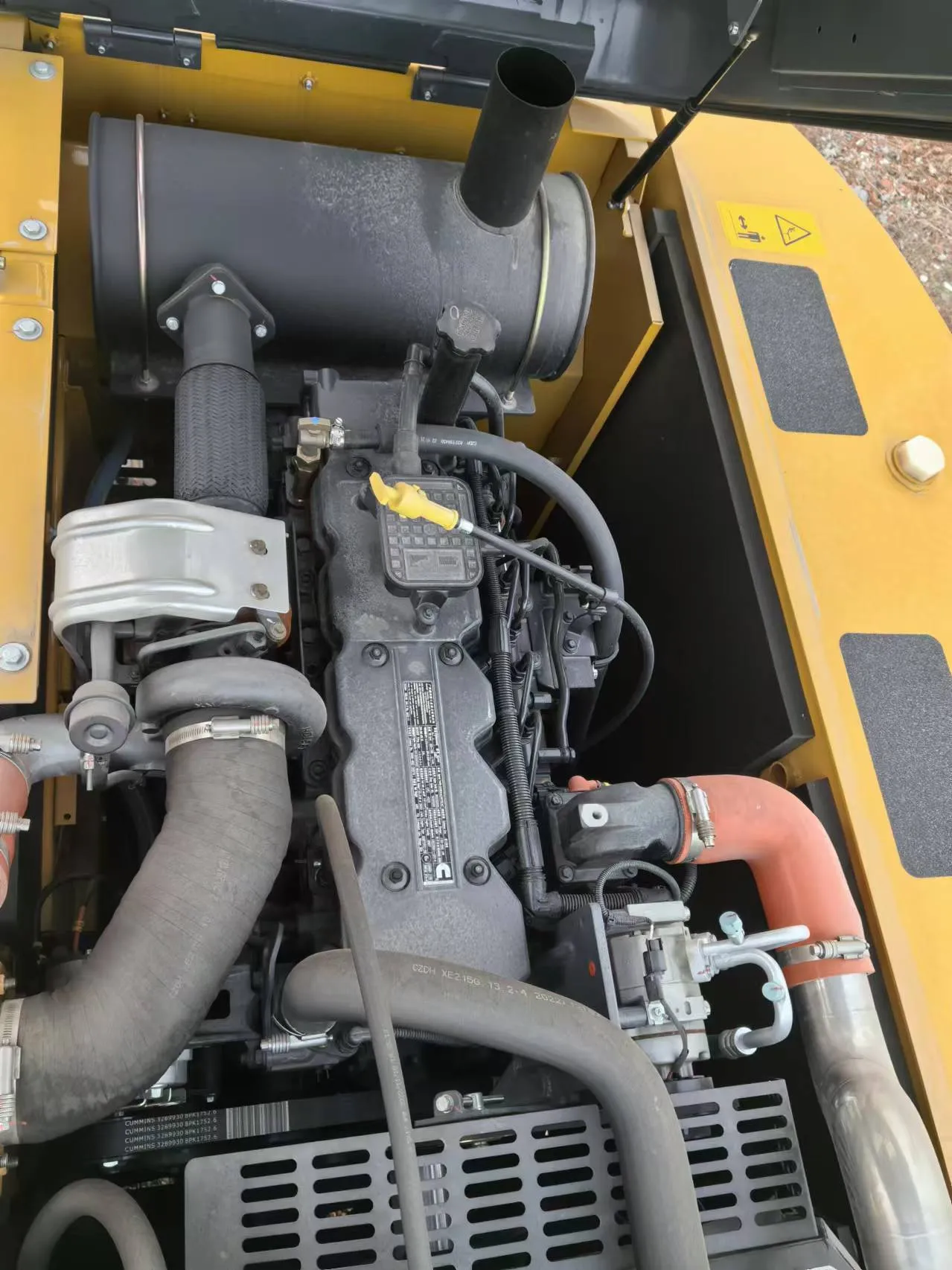

Cumins high-torque engine, customized and optimized fuel injection system according to the characteristics of the excavator, matched with high-speed turbocharger;



Efficient EGR+DOC+DPF post-treatment system, low standby pressure, no need to add urea, lower cost and failure rate, independent control of sub-pump, on-demand oil supply, energy saving, large displacement main pump, fast execution speed, large bore main valve, high reliability, high flow distribution efficiency, smooth compound action;



According to different working conditions, four predefined modes can be selected: standard, high efficiency, plateau and crushing, and the applicability of working conditions is better;



Long maintenance intervals reduce costs.   Most of the maintenance parts are within easy reach, which shortens the maintenance time and improves the uptime of the machine.



Description
Unit
Parameter value
Operating weight
kg
21500
Bucket capacity
0.9~1.1
Engine
Model
Engine
QSB7
Style
Direct injection
---
Four strokes
---
Water cooling
---
Turbo-charging
---
Air to air intercooler
---
No. of cylinders
---
6
Output power
kW/ r/min
135/2050
torque/speed
N.m
740/1250
Displacement
L
6.7

Main performance
Travel speed(H/L)
km/h
5.3/2.9
Gradeability
%
70
Rotary speed
r/min
12.6
Ground pressure
kPa
46.3
Bucket digging force
kN
138
Arm digging force
kN
112


Hydraulic system
Main pump
--
K3V112DT
Rated flow of main pump
L/min
2×207
Main safety valve pressure
MPa
31.4/34.3
Pressure of pilot system
MPa
3.9
Oil Capacity
Fuel tank capacity
L
400
Hydraulic tank capacity
L
220
Engine oil capacity
L
19.5

Appearance size
Overall length
mm
9625
Overall width
mm
2990
Overall height
mm
3100
Width of platform
mm
2830
Length of crawler
mm
4255
Overall width of chassis
mm
2990
Width of crawler
mm
600
Wheel base of crawler
mm
3460
Crawler gauge
mm
2390
Clearance under counterweight
mm
1050
Min. ground clearance
mm
476
Min. rear-end swing radius
mm
2890

Working scope
Max. digging height
mm
9680
Max. dumping height
mm
6815
Max. digging depth
mm
6460
Max. digging depth at the range of level 8 feet
mm
6275
Max. vertical wall digging depth
mm
5590
Max. digging reach
mm
9790
Min. swing radius
mm
3530







XCMG STORY
XCMG RECONDITIONED MACHINE
XCMG reconditioned machine is the second-hand machine program launched by XCMG for the post market. XCMG takes advantage of its dealers network to collect the second-hand XCMG machine that falls into strict standards: good condition, full function and low service hours. The returned machine is then disassembled, repaired, painted, rebuilt and tested officially by XCMG, and the product life is therefore extended. The price of XCMG reconditioned machine is far lower than that of the new one, but its performance and safety are not compromised thanks to XCMG's state-of-the-art processes and technologies. In order to dispel customers' concerns, XCMG establishes a strict evaluation system for reconditioned machines and invites SGS to issue third-party certification.
OUR TEAM
150+ SPECIALISTS
150+ specialists participate in the reconditioning process.
Inspection Team
Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine.
Reconditioning and Repairing Team
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
Issuing Report Team
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
OUR FACTORY
REMANUFACTURING FACTORY
RECONDITION PROCESSES
RECONDITION PROCESSES OF THE USED
We maintain a meticulous and rigorous attitude toward quality, focusing on extraordinary creativity, elaborate designs and exquisite craftsmanship.
COLLECTION
Examine the working conditions, conduct static and dynamic assessment on the used machine. Only machines with light deprecation, low working hours and full functions can be collected.
INSPECTION
Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine. More than 300 details are checked and compared to XCMG standard. Recondition plan is then decided.
RECONDITIONING AND REPAIRING
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
TESTING
Follow the test procedure, ensure the performance and durability of the machine. Unqualified products are returned to step 3.
READY FOR DELIVERY
Ready for Delivery!!!
ISSUING REPORT
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
PAINTING
The whole machine is repainted to restore its appearance. Bright as new.
FAQ
FREQUENTLY ASKED QUESTIONS
1.What’s the warranty policy for XCMG reconditioned machines?
The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump, distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.
2.How about the quality of your machine?
The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.
3.Are you the original manufacturer?
Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.
4.Can you satisfy my special requirement?
As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).
5.What is accpetable payment terms?
Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
