Summary
- Weight:16000kg
- Dimension(L*W*H):6150*2300*3200mm
- Power(W):103kW
- Model Number:XS163J
- Brand Name:Xuzhou, Jiangsu, China
- Place of Origin:China
- Grade Ability:30%
- Travel Speed:11.17km/h
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- weight:16000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

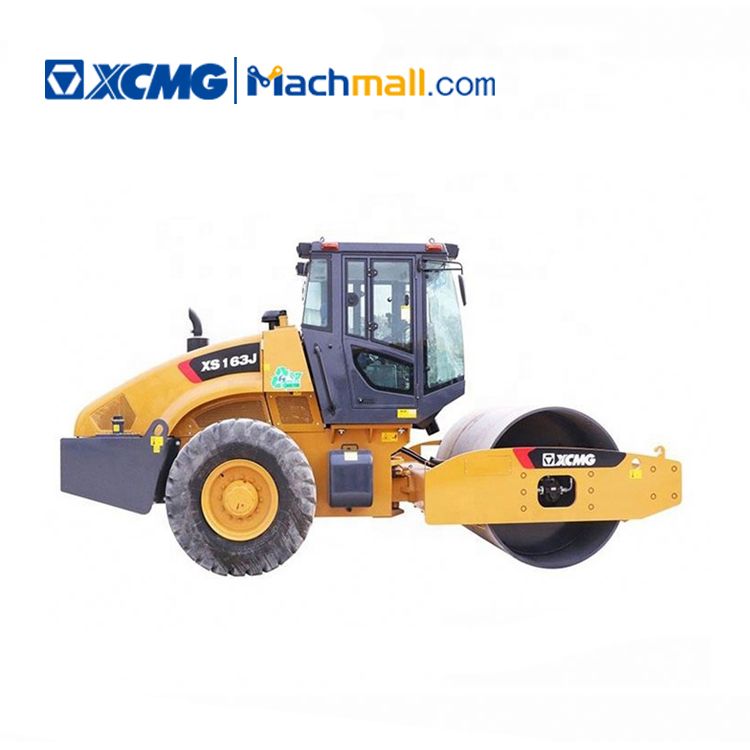

XCMG official 16 ton XS163J vibratory road roller compactor.
XCMG roller compactor XS163J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc.
And XCMG roller compactor XS163J is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, XCMG roller compactor XS163J is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
Performance Characteristics:
1. XCMG roller compactor XS163J Use the H-series, water cooling, low-speed diesel engine manufactured by Shanghai.
2. Adopt closed hydraulic drive system ensure better drive performance and gradeability.
3. XCMG roller compactor XS163J Use the mechanical gear box with synchro mesh unit to realize convenient operation.
4. Main clutch uses the heavy-duty special with a reliable performance and good maintainability.
5. XCMG roller compactor XS163J can meet the requirements of different working conditions.
Item |
Unit |
XS163J |
||
Service mass |
kg |
16000 |
||
Distributed mass of driving wheel |
kg |
8000 |
||
Distributed mass of vibration wheel |
kg |
8000 |
||
Static line load |
N/cm |
376 |
||
Vibration frequency |
Hz |
28/33 |
||
Theoretical amplitude |
mm |
1.9/0.95 |
||
Exciting force |
kN |
290/200 |
||
Range of speed |
Forward |
I |
km/h |
2.85 |
II |
km/h |
5.08 |
||
III |
km/h |
11.17 |
||
Backward |
I |
km/h |
2.88 |
|
II |
km/h |
5.02 |
||
Wheel base |
mm |
3076 |
||
Compaction width |
mm |
2130 |
||
Theoretical gradeability |
% |
30 |
||
Minimum turn radius |
mm |
6800 |
||
Diameter of vibration wheel |
mm |
1523 |
||
Minimum ground clearance |
mm |
440 |
||
Engine |
Model |
|
SC4H140.1G2 |
|
Rated speed |
r/min |
1800 |
||
Rated power |
kW |
103 |
||
Overall dimension (length x width x height) |
mm |
6150*2300*3200 |
