Specifications
- Weight:16100.000kg
- Condition:New
- Moving Type:Other
- Weight:16100kg
- Dimension(L*W*H):9180*2625*3470mm
- Engine Brand:Cummins
- Forward Speed:38km/h
- Reverse Speed:23km/h
- Rated power/speed:160kW/2200rpm
- Tractive force(f=0.75):115.3KN
- Max. gradeability:36%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

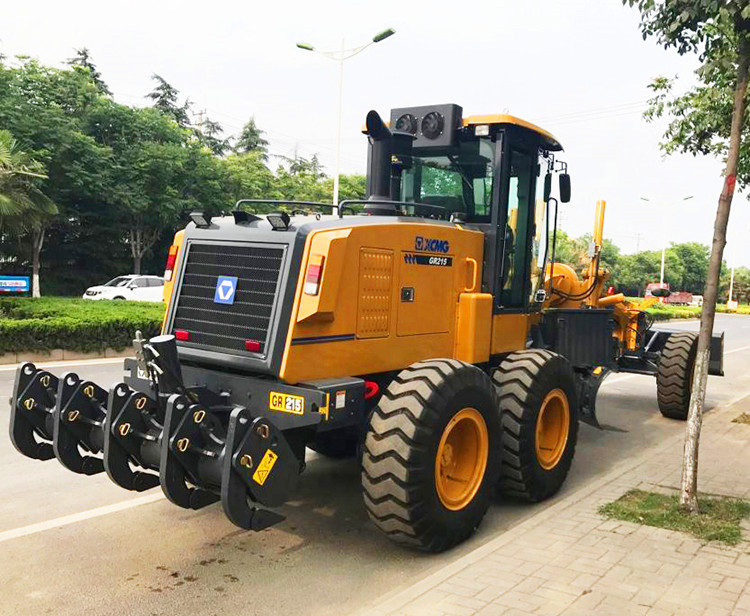

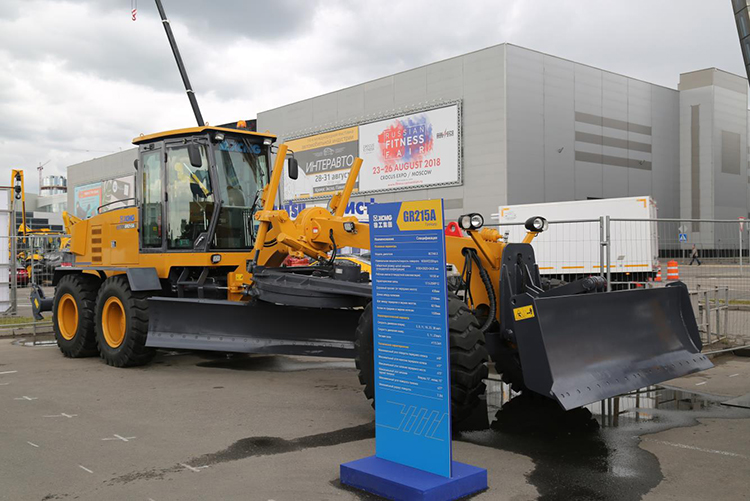

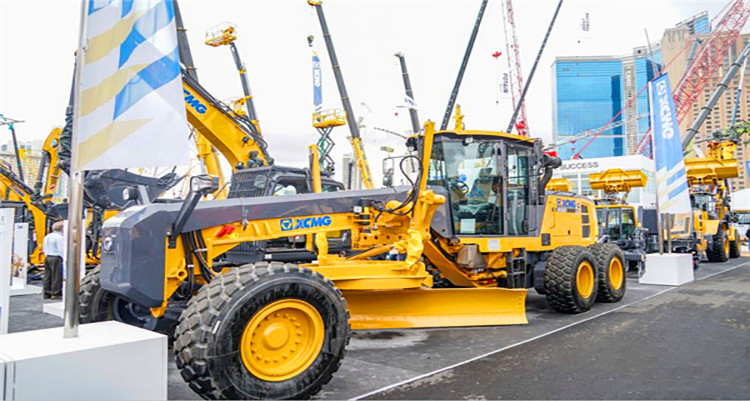

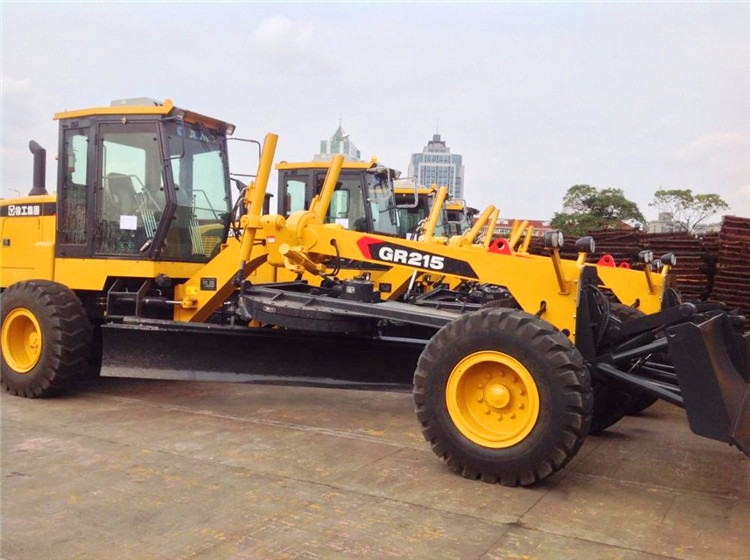

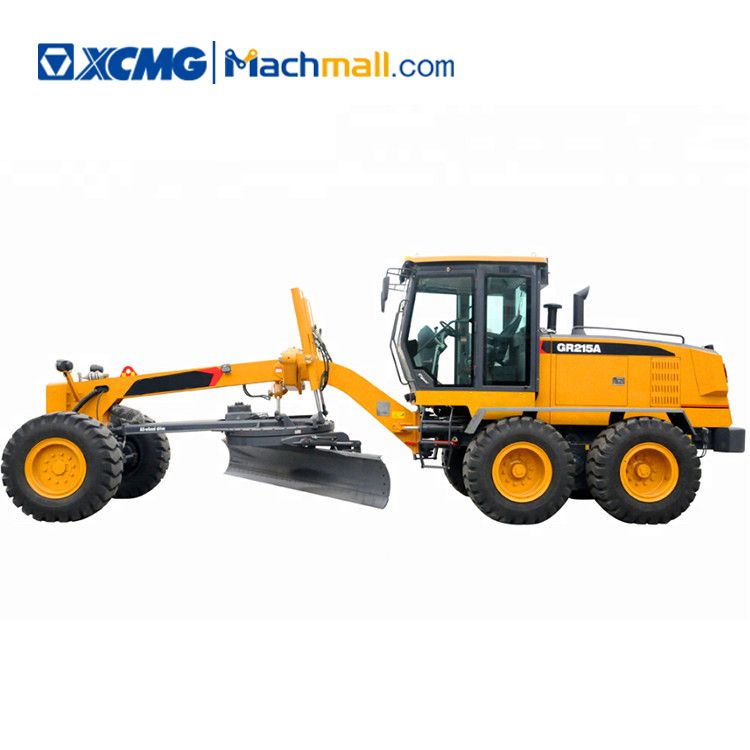

XCMG official 215HP road graders GR215A with manual.
XCMG road grader GR215A adopts the external ring gear type working device to achieve higher transmitted torque, larger blade cutting angle, and better material control capability and features the maximum traction force among the domestic like machines.

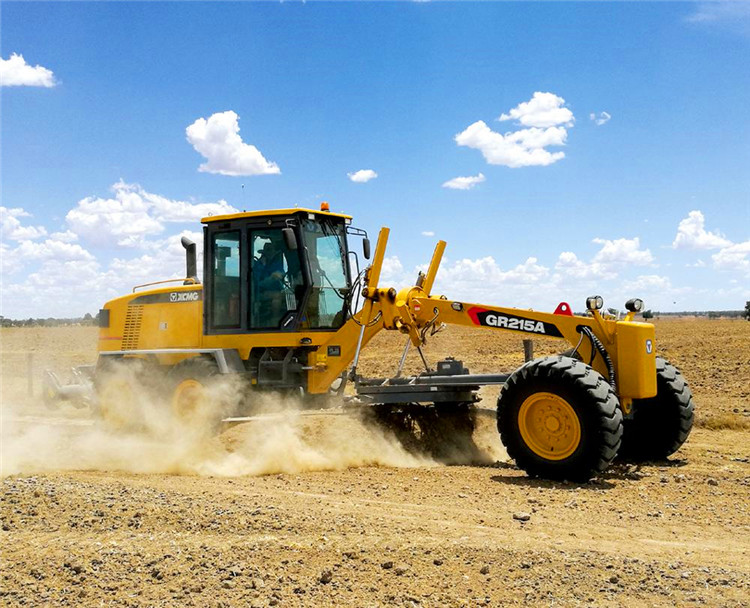

XCMG road grader GR215A is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing, and snow removing and is an ideally essential machine for large building constructions, water conservancy projects, and farm.
1.Energy-saving and noise-reducing
XCMG road grader GR215A adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%.
2.Strong Power
Adopting Sichai High-efficiency State III Variable Power Engine.
3.With load rotation
Improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.
4.Efficient operation
The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.
|
Basic specification |
|
|
Engine model |
Cummins QSB6.7/6CTA8.3 |
|
Rated power/speed |
164kW/2200rpm 160kW/2200rpm |
|
Dimension(LxWxH) |
9180×2625×3470mm |
|
Operating weight(Standard) |
16100kg |
|
Performance specification |
|
|
Travelling speed ,forward |
5,8,11,19,23,38 km/h |
|
Travelling speed ,reverse |
5,11,23 km/h |
|
Tractive force(f=0.75) |
115.3KN |
|
Max. gradeability |
36% |
|
Tire inflation pressure |
260 kPa |
|
Working hydraulic pressure |
16 MPa |
|
Transmission pressure |
1.3~1.8MPa |
|
Max. steering angle of front wheels |
±50° |
|
Max. lean angle of front wheels |
±17° |
|
Max. oscillation angle of front axle |
±15° |
|
Max. oscillation angle of balance box |
15 |
|
Frame articulation angle |
±27° |
|
Min. turning radius using articulation |
7.3m |
|
Biade |
|
|
Maximum lift above ground |
450mm |
|
Maximum depth of cutting |
500mm |
|
Maximum blade position angle |
90° |
|
Blade cutting angle |
28°-70° |
|
Circle reversing rotation |
360° |
|
Moldboard width ×height |
4270×610mm |
