Summary
- Weight:16 ton
- Dimension(L*W*H):4800*2356*3330mm
- Power(W):86kW
- Model Number:XP163
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:20%
- Travel Speed:4-17.5km/h
- Static Linear Pressure:621N/cm
- Type:pneumatic tire roller
- Certification:CE/ISO9001
Specifications
- Weight:16000.000kg
- Condition:New
- Moving Type:Wheel
- Diesel tank volume:150L
- Ground pressure:150-300kPa
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG XP303S 30 ton pneumatic roller compactor.
Characteristics and Scope of Application of XCMG Pneumatic Tire Roller:
XCMG pneumatic tire roller features high efficiency, reliability, comfort and high value preservation. It is suitable for compaction of foundation layer, secondary foundation layer and asphalt layer of various materials in highway, municipal and national defense construction.
XCMG XP3 Series Pneumatic Tire Roller:
XCMG XP3 series pneumatic tire rollers include XP263S/XP303S two high-end products, XP163/XP203/XP263/XP303 and other mid-end products, covering a total of 8 models from 16 tons to 30 tons. It has the largest ground pressure ratio and the largest overlap of front and rear wheels in China to ensure compaction compactness and flatness.

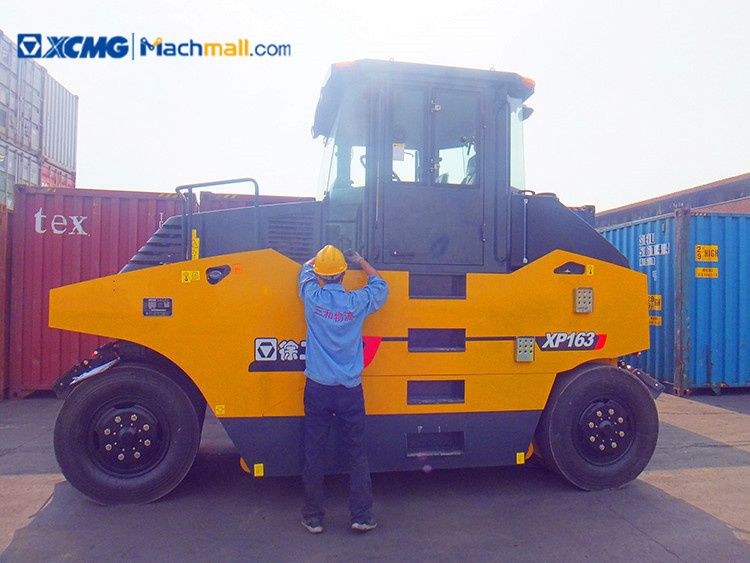

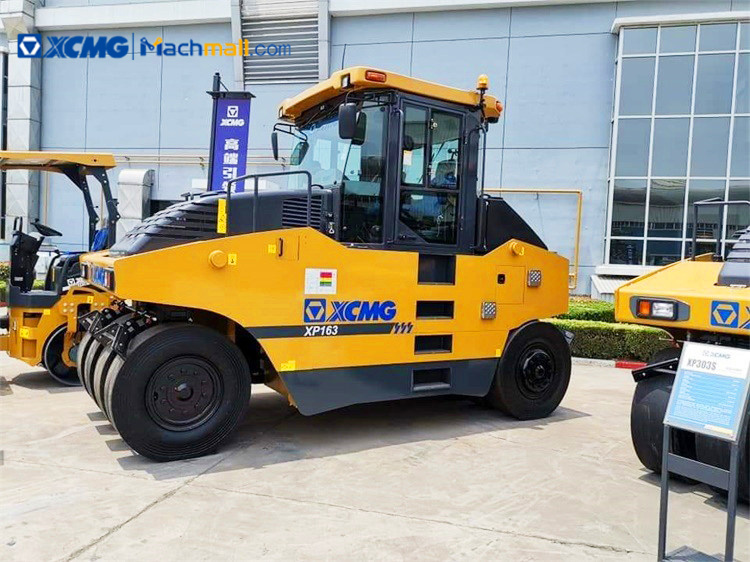

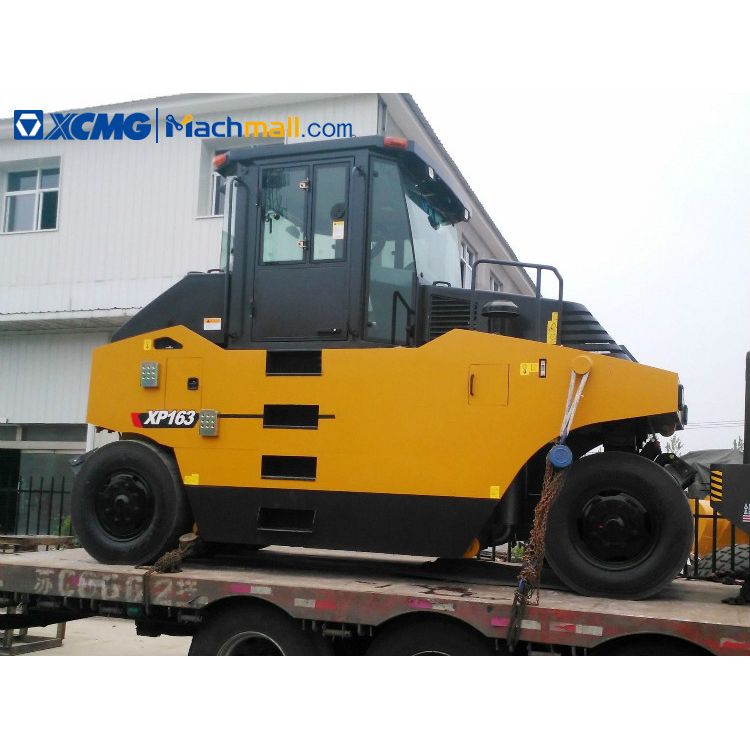

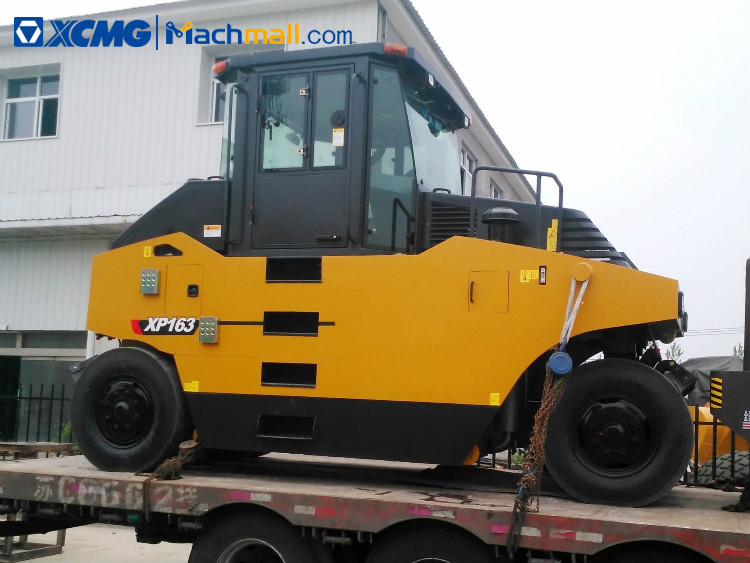

XCMG XP163 Pneumatic Tire Road Roller Highlights:
1. The use of PLC embedded control system achieves five-speed adjustable and one-key control of automatic inflation.
2. The tire grounding pressure can be adjusted by increasing or decreasing the counterweight and changing the tire inflation pressure to improve the compaction performance.
3. Full hydraulic steering, pneumatic hydraulic braking and multi-gear transmission system to achieve fast speed, flexible mobility and more convenient for transfer between construction sites.
4. XP163 is equipped with standard sprinkler system, it also can be equipped with intermittent sprinkler function.
Market Share of XCMG Pneumatic Road Roller :
XCMG road rollers have maintained the top sales volume in China for 30 consecutive years.
XCMG’s large-tonnage road rollers has the largest sales volume in the world.
|
Item |
Unit |
XP163 |
|
|
Maximum operating mass |
kg |
16000 |
|
|
Ground pressure |
kPa |
150~ 300 |
|
|
Travel speed |
Gear I |
km/h |
4 |
|
Gear II |
km/h |
8.3 |
|
|
Gear II |
km/h |
17.5 |
|
|
Theoretical gradeability |
% |
20 |
|
|
Minimum turning radius |
mm |
7330 |
|
|
Minimum ground clearance |
mm |
260 |
|
|
Compaction width |
mm |
2250 |
|
|
Overlapped volume of roller |
mm |
45 |
|
|
Tires |
Specification |
|
11.00-20 |
|
Quantity |
|
Front 4 rear 5 |
|
|
Engine |
Type |
|
SC4H115.4G2B |
|
Rated power |
kw |
86 |
|
|
Fuel consumption |
g/kw.h |
≤205 |
|
|
Total length |
mm |
4800 |
|
|
Total width |
mm |
2356 |
|
|
Total height |
mm |
3330 |
|
|
Diesel tank volume |
L |
150 |
|
|
Water tank volume |
L |
650 |
|
