![XCMG Official Pipe Jacking Machinery XDN1000 for sale XCMG Official Pipe Jacking Machinery XDN1000 for sale](http://www.machmall.com/images/store/357636/item/XDN1000_1.jpg_l.jpg)

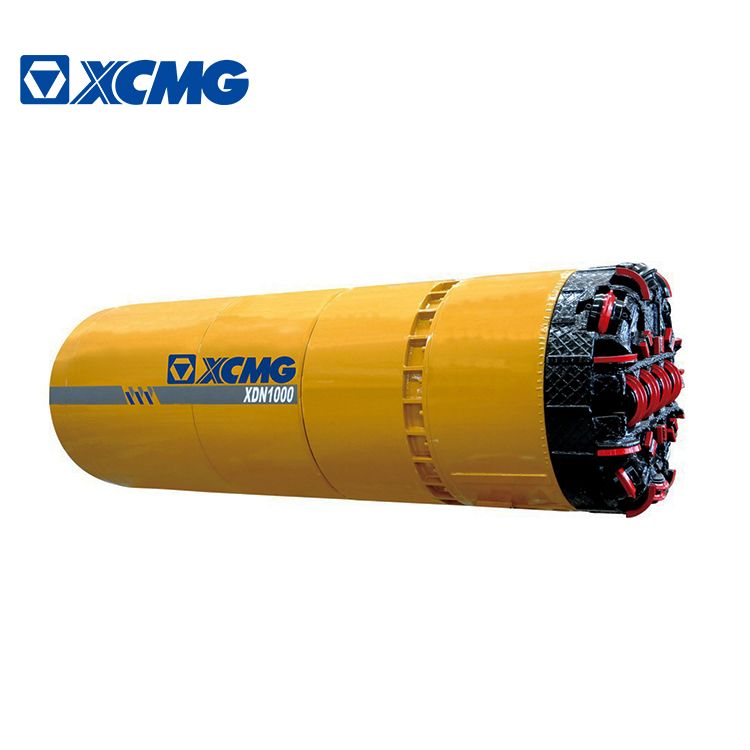

XCMG Official Pipe Jacking Machinery XDN1000 for sale
![](/app/topc/statics/images/close.png)
![XCMG Official Pipe Jacking Machinery XDN1000 for sale](/images/store/357636/item/XDN1000_1.jpg)
![](/app/topc/statics/images/close.png)
Specs & Compare
Details
Select 3 models for comparison
Certification
Weight
Dimension(L*W*H)
Model Number
Brand Name
Place of Origin
Certification
Weight
Dimension(L*W*H)
Model Number
Brand Name
Place of Origin
Engineering & Construction Machinery
--
--
--
--
--
--
ISO9001
6000kg
--
XDN1000
XCMG
China
+ Add a Product
+ Add a Product
Summary
- Certification:ISO9001
- Weight:6000kg
- Model Number:XDN1000
- Brand Name:XCMG
- Place of Origin:China
Specifications
- weight:6000.000kg
- Condition:New
- Moving Type:Other
- Pipe diameter(ID):1000mm
- Pipe diameter(OD):1200mm
- Outer diameter× length:1220x3600mm
- Force per cylinder:480kN
- Jacking cylinders thrust:1500kN
- Jacking cylinders stroke:1250x2mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XDN1000 Pipe Jacking Machinery
1.High reliability:Hydraulic overload protection system is reliable and
safer,and
the water proof
is good.
2.Great geology
adaptability:Revolution can be adjusted
without grade and different cutting wheels are designed for different ground
conditions.So it makes great adaptability.
3.High rock
breaking efficiency:The special design of
large eccentric cone crusher can raise the working efficiency with secondary
crushing which also makes rock pieces easier to discharge.
4.Good
construction operability:Jacking speed and
slurry flow can be continuously adjusted that makes it easier to achieve a
balance of jacking speed and delivery of slurry flow.
Description |
Unit |
Parameter value |
|
Pipe diameter |
ID |
mm |
Φ1000 |
OD |
Φ1200 |
||
Extend
diameter |
mm |
Φ1100 Φ1200 |
|
Outer diameter× length |
mm |
Φ1220×3600 |
|
Cutting
wheels |
Motor power |
kW |
15×2 |
Torque |
kN.m |
89 |
|
Revolution |
r/min |
0-2.8-3.9 |
|
Roll correction system |
Force per cylinder |
kN |
480 |
Cylinder number |
EA |
3 |
|
Steering angle |
° |
3 |
|
Motor power |
kW |
2.2 |
|
slurry line diameter |
mm |
Φ100 |
|
Total power |
kW |
47.2 |
|
Weight |
kg |
6000 |
|
Jacking cylinders |
Thrust |
kN |
1500 |
Number |
EA |
2 |
|
Stroke |
mm |
1250×2 |
|
Charge pump Motor power |
kW |
22 |
|
Discharge pump Motor power |
kW |
22 |
|
Injection pump Motor power |
kW |
11 |
