XCMG official XM1003H milling Machine for sale

View All >

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG official XM1003H milling Machine for sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Dimension(L*W*H)

Weight

Power(W)

Model Number

Brand Name

Place of Origin

Milling width (mm)

Milling depth (mm)

Certification

Engineering & Construction Machinery

4600mm x 2414mm x 3000mm

15800kg

164kW

XM1003H

XCMG

China

1000mm

255mm

+ Add a Product

Summary

Dimension(L*W*H):4600mm x 2414mm x 3000mm
Weight:15800kg
Power(W):164kW
Model Number:XM1003H
Brand Name:XCMG
Place of Origin:China
Milling width (mm):1000mm
Milling depth (mm):255mm

Specifications

Weight:15800.000kg
Condition:New
Moving Type:Wheel

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG official XM1003H milling Machine for sale

	Item	XM1003H
Milling drum	Milling width	1000mm
	Milling depth	255mm
	Cutter spacing	18mm
	Number of cutters	80
	Diameter of rotor(including cutter)	860mm
Engine	Manufacturer	Dongfeng Cummins
	Model	QSB6.7
	Cooling type	Water cooling
	Number of cylinders	6
	Rated power/2,200rpm	164kW
	Displacement	6.7L
	Full-load fuel consupmtion	42L
	Composite fuel consumption	15L
	Emission standard	China-III
	Electric system	24V
Capacities of tanks	Fuel tank	370L
	hydraulic oil tank	120L
	Water tank	900L
Driving performance	Maximum working speed	40m/min
	Maximum traveling speed	8km/h
	Theoretical gradeability	85%
	Ground clearance	180mm
Tires	Type of tires	Solid rubber tires
	Front tire specification	645mm x 300mm
	Rear tire specification	645mm x300mm
Conveyance of milled material	Belt width	500mm
Conveyance of milled material	Theoretic conveyance capacity	127m3/h

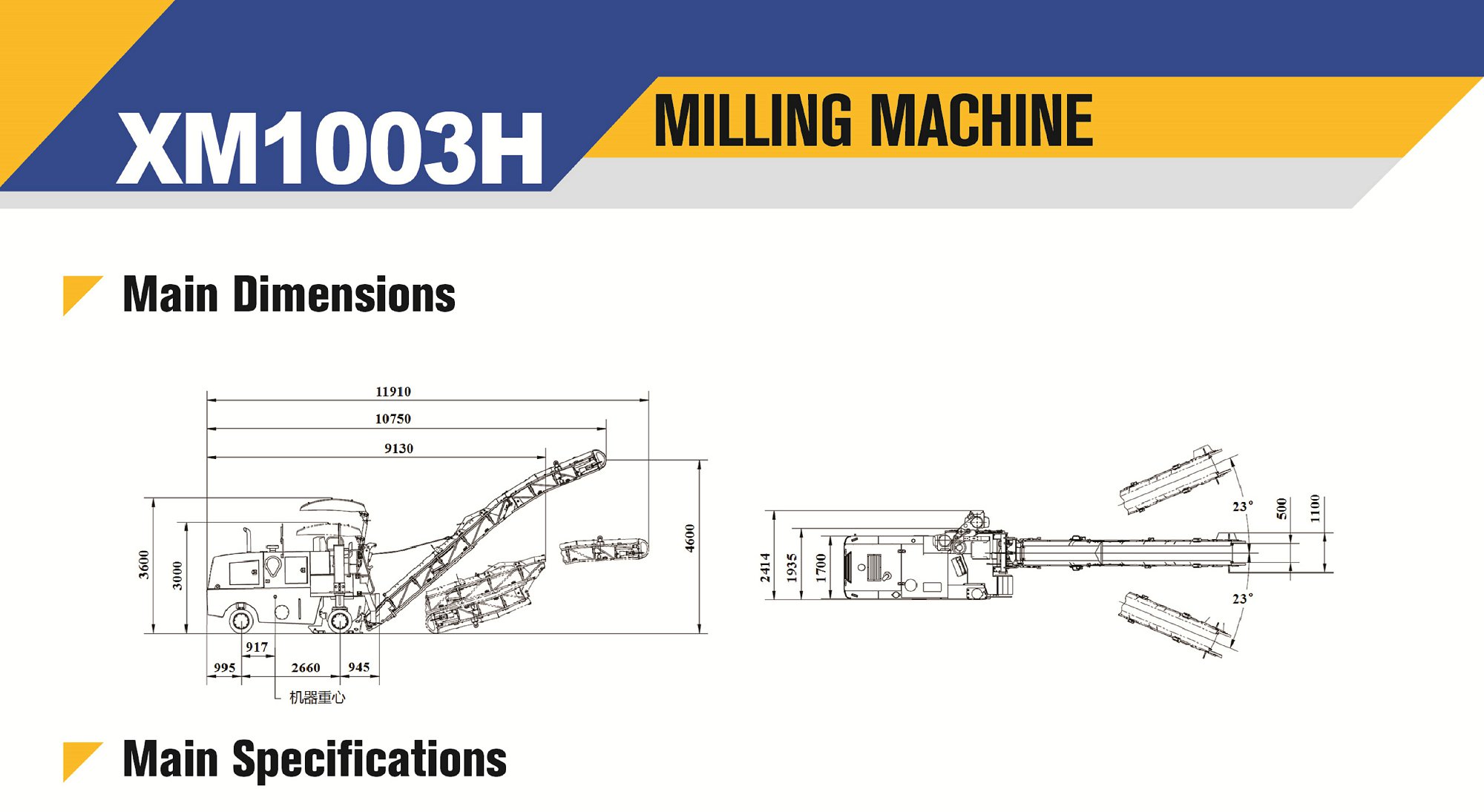

Transport dimensions	Machine dimensions(L x W x H)	4600mm x 2414mm x 3000mm
	Main machine dimensions(With right outrigger swung info frame(L x W x H)	4600mm x 1935mm x 3000mm
	Folded conveyor dimensions(L x W x H)	7900mm x 1100mm x 980mm
Machine weights	Unloaded weight without filled media	15000kg
	Operating weight	15800kg
	Front axle load(Under operating weight	5450kg
	Rear axle load(Under Operating weight)	10350kg
