XCMG official Double volleyball style Inner gear slewing bearing price

FOB Price: Get the latest price

1 Piece(Min. Order)

View All >

Supply Ability： 10,000 Set/ Sets per Month

Delivery： 7-30 days

Port： Any Port In China

Certified： ISO 9001, ISO 14001

Payment Terms：

Inquiry Chat Now

Favorite Products

Product:

XCMG official Double volleyball style Inner gear slewing bearing price

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Parts

Packaging & Shipping

Details

Specifications

Weight:1.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Delivery Port:Any Port In China

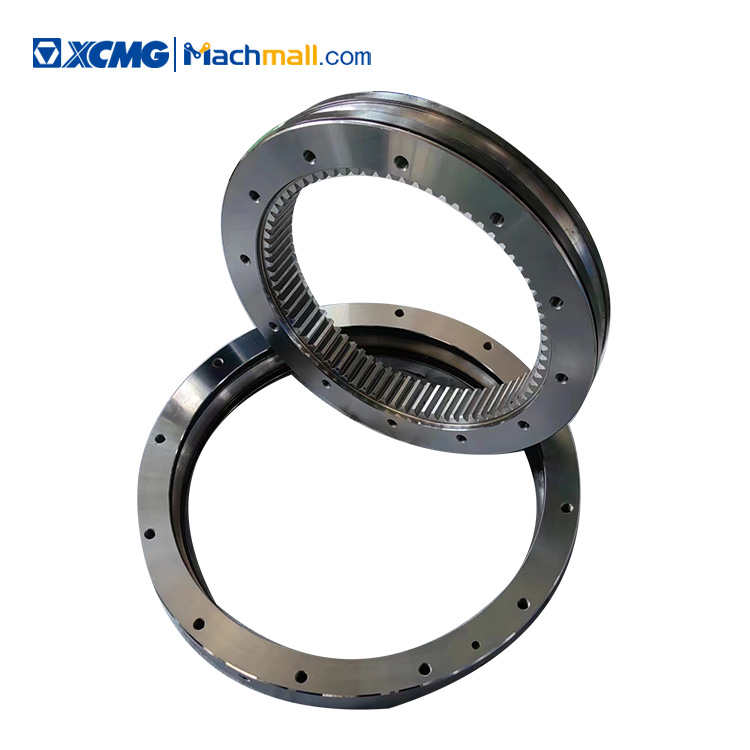

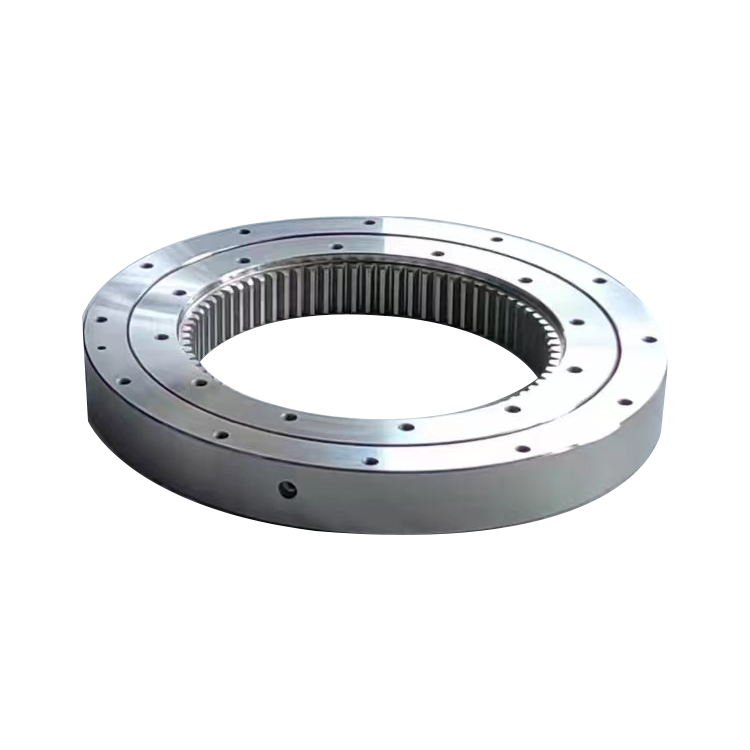

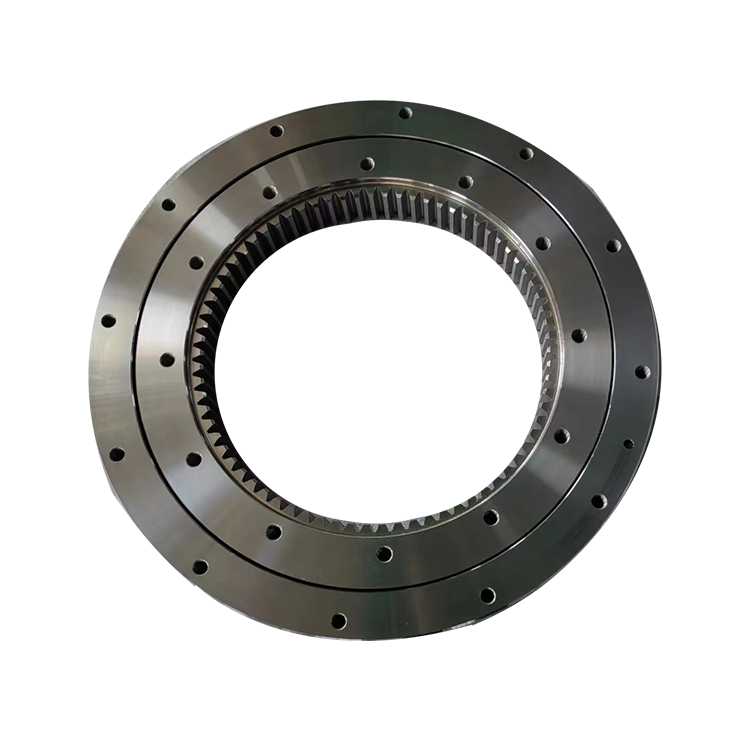

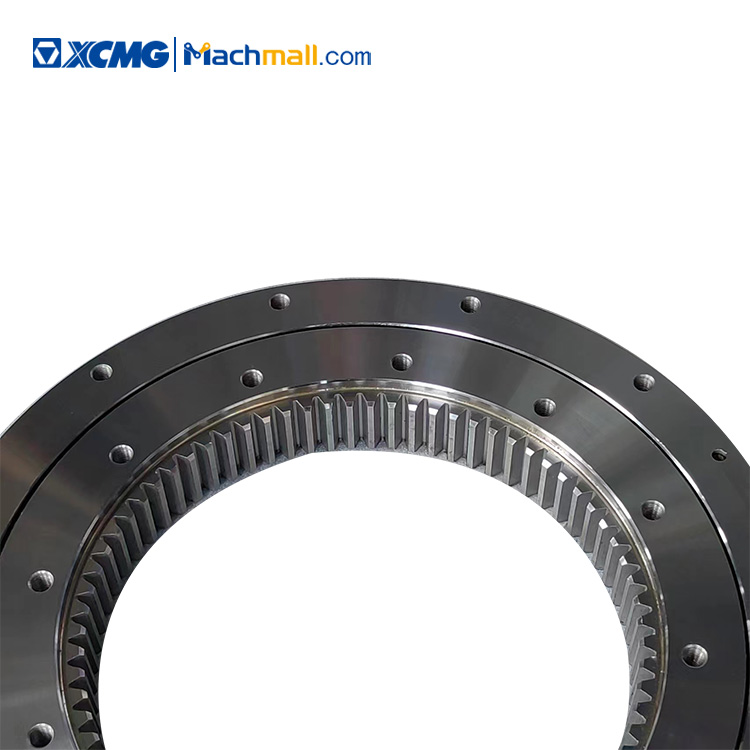

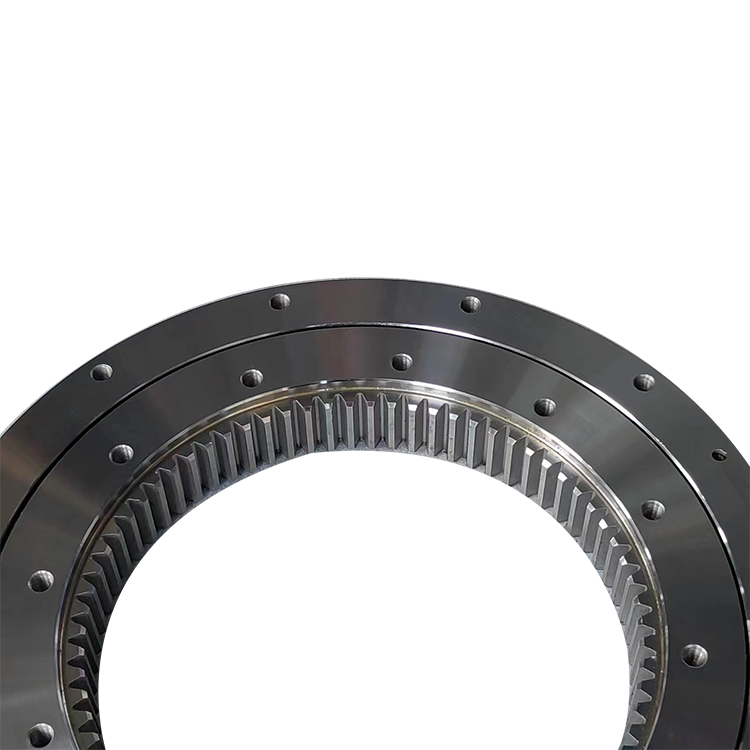

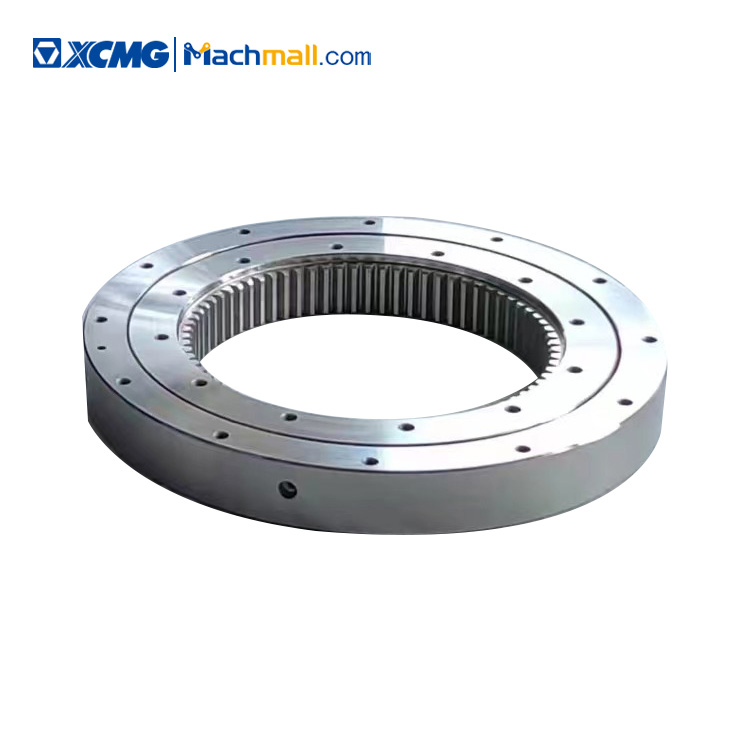

XCMG official Double volleyball style Inner gear slewing bearing price

The products cover 7 categories and the size of the track center from 200mm to 4000mm.

The slewing ring produced by our company has higher accuracy, strong load bearing capacity, compact and firm structure, easy maintenance and long service life; It is widely used in engineering machinery, construction machinery, ship and port equipment, metallurgy and mining equipment, environmental protection machinery, light industry machinery, petrochemical machinery, military equipment and other fields.

Slewing bearings are also called rotary table bearings or slewing bearings, an oversized bearing that can withstand the comprehensive load, or a combination bearing with high efficiency and high bearing capacity, which can bear large axial load, radial load and overturning moment at the same time. Its working mode and principle are similar to bearings, its principle is very simple: the way to move the object has sliding rolling, reduce friction resistance. Slewing bearing consists of two rings, a group of rolling body and cage, which is a universal mechanical foundation. There are different working modes according to the actual use and design structure.

NO.	Inner gear DL mm	Outer Dimension				Installation Dimension			Structural Dimension					Gear parameter Gear					Gear circumferential force		Reference Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	0 mm	D3 mm	d1 tum	nl	H1 mm	h mm	b mm	x	m mm	De mm	z	正火 10N	调质 10N
1	023.25.500	616	384	106	58o	420	20	18	482	477	4	6	26	60	0.5	5	357	72	3.7	5.2	100
	024.25.500															6	350.4	59	4.5	6.2
2	023.25.560	676	144	106	640	480	20)	18	542	537	4	96	26	60	0.5	5	417	84	3.7	5.2	115
	024.25.560															6	410.4	69	4.5	6.2
3	023.25.630	746	514	106	710	550	24	18	612	607	4	96	26	60	0.5	6	482.4	81	4.5	6.2	130
	024.25.630															8	475.2	60	6	8.3
4	023.25.710	826	594	106	790	630	24	18	692	687	4	96	26	60	0.5	6	560.4	94	45	6.2	140
	024.25,710															8	555.2	70	6	8.3
5	023.30.800	942	658	124	898	702	30	22	777	771	6	114	29	80	0.5	8	619.2	78	8	11.1	200
	024.30.800															10	614	62	10	14
6	023.30.900	1042	758	124	998	802	30	22	877	871	6	114	29	80	0.5	8	715.2	90	8	11.1	250
	024.30.900															10	714	72	10	14
7	023.30.1000	1142	858	124	1098	o02	36	22	977	971	6	114	29	80	0.5	10	814	82	10	14	300
	024.30.1000															12	796.8	67	12	16.7
8	023.30.1120	1262	978	124	1218	1022	36	22	1097	1091	6	114	29	80	o.5	10	924	93	10	14	340
	024.30.1120															12	916.8	77	12	16.7
9	023.40.1250	1426	1074	160	1374	1126	40	26	1215	1214	5	150	30	90	o.5	12	1012.8	85	13.5	18.8	580
	024.40.1250															14	1013.6	73	15.8	219
10	023.40.1400	1576	1224	160	1524	1272	40	26	1365	1364	5	150	30	90	0.5	12	1156.8	97	135	18.8	650
	024.40.1400															14	1153.6	83	15.8	219
11	023.40.1600	1776	1424	160	1724	1476	45	26	1565	1564	5	150	39	90	0.5	14	1349.6	97	15.8	21.9	750
	024.40.1600															16	1350.4	85	18.1	25
12	023.40.1800	1976	1624	160	1924	1676	45	26	1765	1764	5	150	39	90	0.5	14	1545.6	11	15.8	219	820
	024.40.1800															16	1542	g7	18.1	25
13	023.50.2000	2215	1785	190	2149	1851	48	33	1965	1962	8	178	47	120	0.5	16	1702.4		24.1	333	1150
	024.50.2000															18	1699.2	95	27.1	37.5
14	023.50.2240	2455	2025	190	2389	2091	48	33	2206	2202	8	178	47	120	0.5	16	1942.1	122	24.1	333	1500
	024.50.2240															18	1933.2	108	27.1	37.5
15	02.3.50.2500	2715	2285	190	2649	2351	56	33	2465	2462	8	178	47	120	0.5	18	2203.2	123	27.1	37.5	1700
	024.50.2500															20	2188	110	30.1	41.8
16	023.50.2800	3015	2585	190	2949	2651	56	33	2765	2762	8	178	47	120	0.5	18	2491.2	139	27.1	37.5	1900
	024.50.2800															20	2488	125	30.1	41.8
17	023.60.3150	3428	2872	226	3338	2962	56	45	3104	3102	8	214	56	150	0.5	20	2768	139	37.7	52.2	3300
	024.60.3150															22	2758.8	126	41.5	574
18	023.60.3550	3828	3272	226	3738	3362	56	45	3504	3502	8	214	56	150	0.5	20	3168	159	37.7	52.2	3700
	024.60.3550															22	3176.8	145	415	57.4
19	023.60.4000	4278	3722	226	4188	3812	60	45	3954	3952	10	214	56	150	0.5	22	3616.8	165	415	57.4	420O
	024.60.4000															25	0.361	145	47.1	65.2
20	023.60.4500	4778	4222	226	4688	4312	60	45	4454	4452	10	214	56	150	0.5	22	4122.8	188	41.5	57.4	4700
	024.60-4500															25	4110	165	47.1	62.5
