Summary
- Dimension(L*W*H):12600×2530×4000mm
- Weight:35000kg
- Power(W):315000W
- Model Number:HB50V
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:35000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

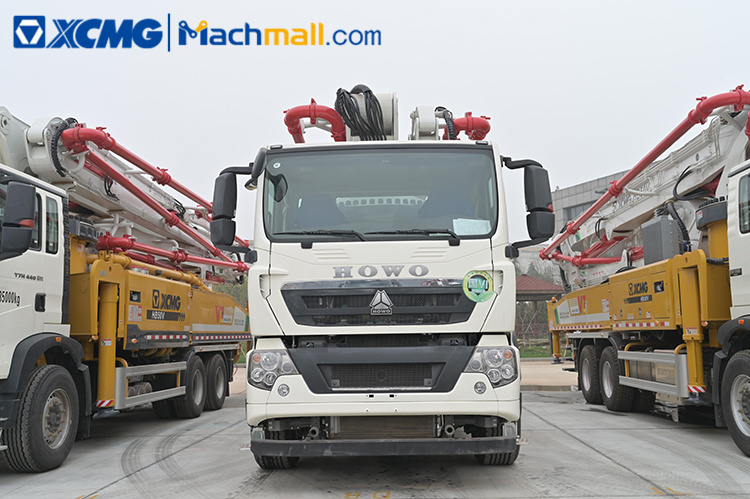

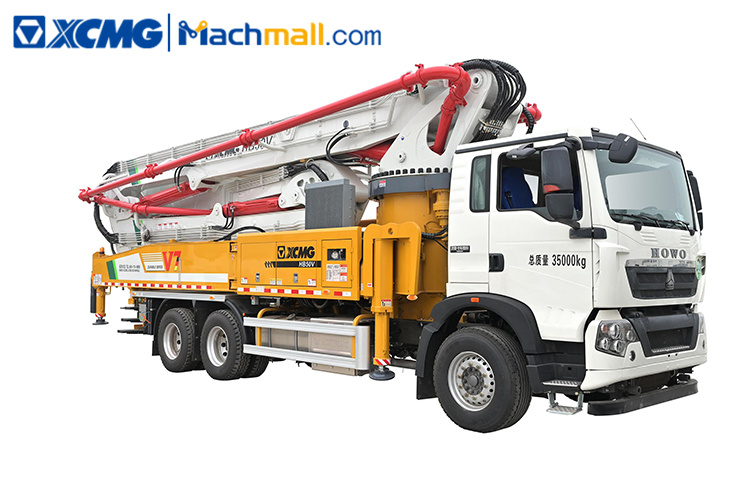

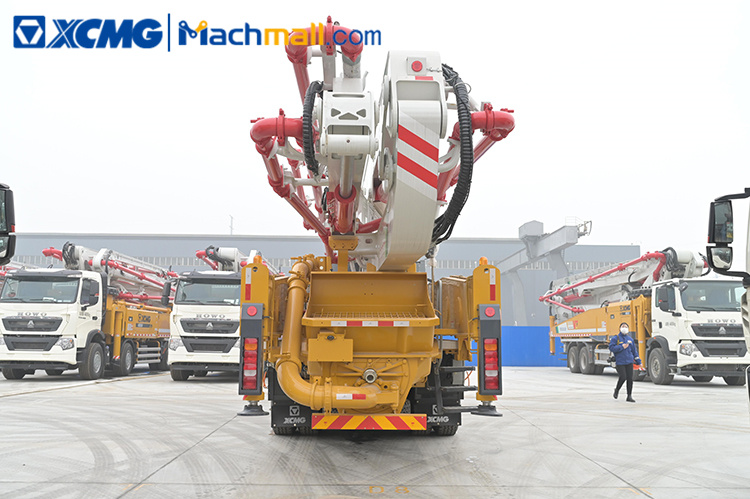

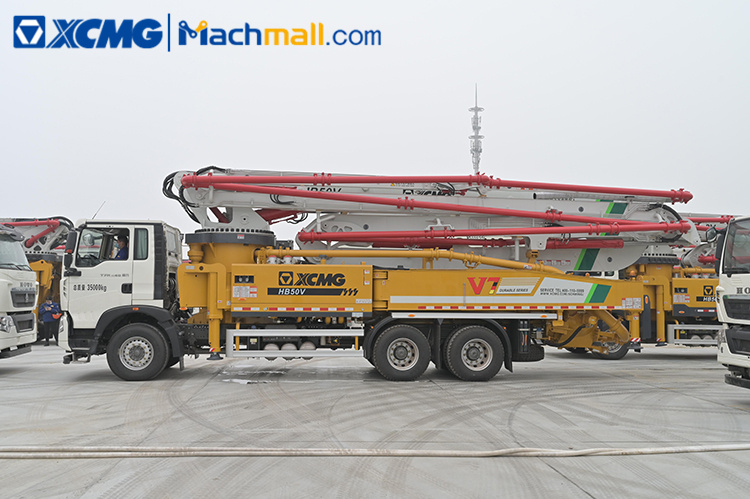

HB50V XCMG new truck concrete pump with HOWO chassis.
XCMG new truck concrete pump with HOWO chassis HB50V is equipped with HOWO chassis, more efficient skirt valve and S valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.
XCMG new truck concrete pump with HOWO chassis HB50V adopts benz chassis, which complies with China V emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.
Advantages and highlights:
1.Reinforced rock valve, one-piece alloy cutting ring and highly wear-resisting double-layer pumping pipe prolong the service life of easy-wear parts.
2.Intelligent program control, rotary speed monitoring and dual-stroke logical protection ensure switchover at zero rotary speed and mechanics in proper place, thoroughly evading gear collision damage of transfer case.
|
Category |
Item |
Unit |
HB50V |
|
Overall |
Outline dimension |
mm |
12600×2530×4000 |
|
|
Overall weight |
kg |
35000 |
|
Chassis |
Brand |
/ |
HOWO |
|
|
Wheelbase |
mm |
4800+1350 |
|
|
Max.power |
kW |
315 |
|
Engine |
Emission |
/ |
China V |
|
|
Theoretical |
m³/h |
170 |
|
Pumping system |
Concrete pumping pressure |
Mpa |
8 |
|
|
Theoretical pumping times |
Times/min |
23～26 |
|
|
Delivery cylinder diameter × stroke |
mm |
φ260×2000 |
|
Placing boom |
Reach height |
m |
49.1 |
|
|
Reach depth |
m |
34.4 |
|
|
Slewing radius |
m |
44.2 |
|
|
Slewing angle |
° |
±270 |
|
Others |
Transfer tuble |
/ |
Rock valve/S valve |
