Specifications
- Weight:16000.000kg
- Condition:New
- Moving Type:Other
- Rated power/speed:140kW/2200rpm
- Overall dimensions:9331*2625*3330mm
- Overall weigh:16000kg
- Traction f=0.75:83kN
- Maximum gradeability:25%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

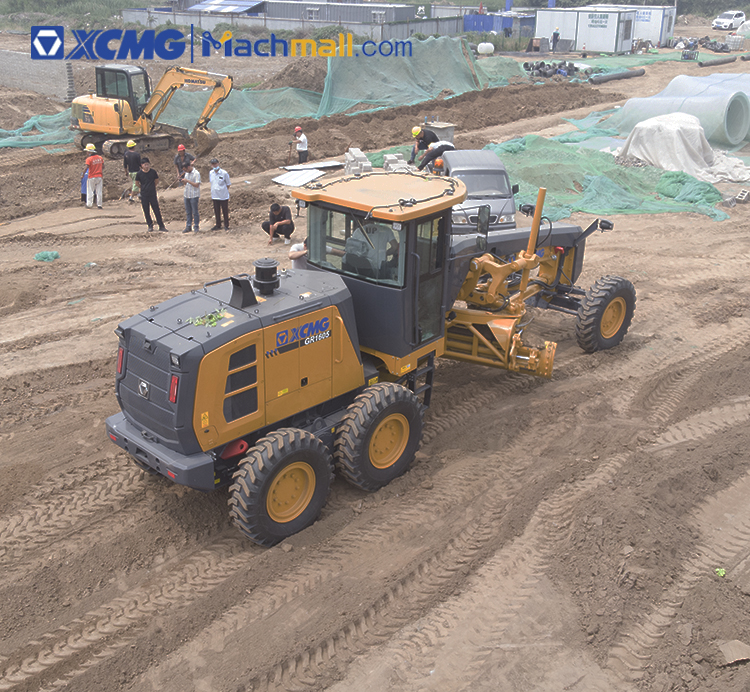

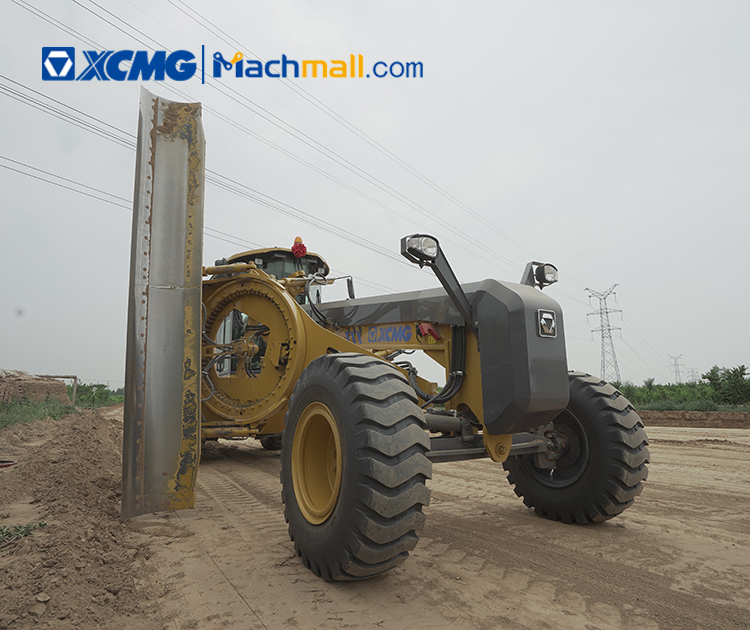

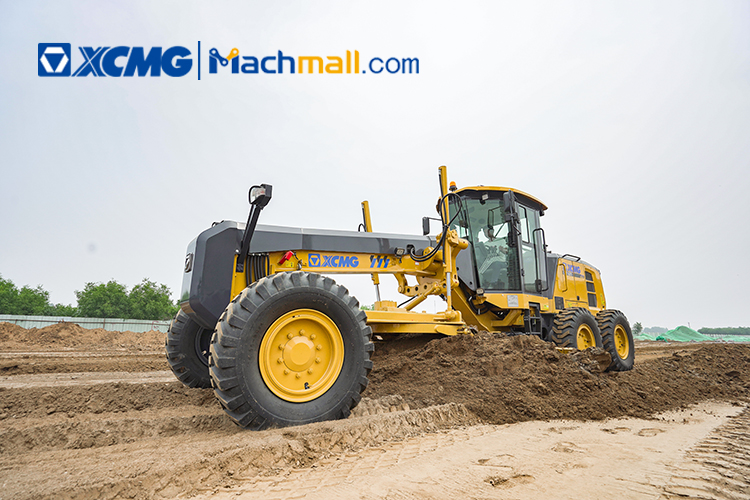

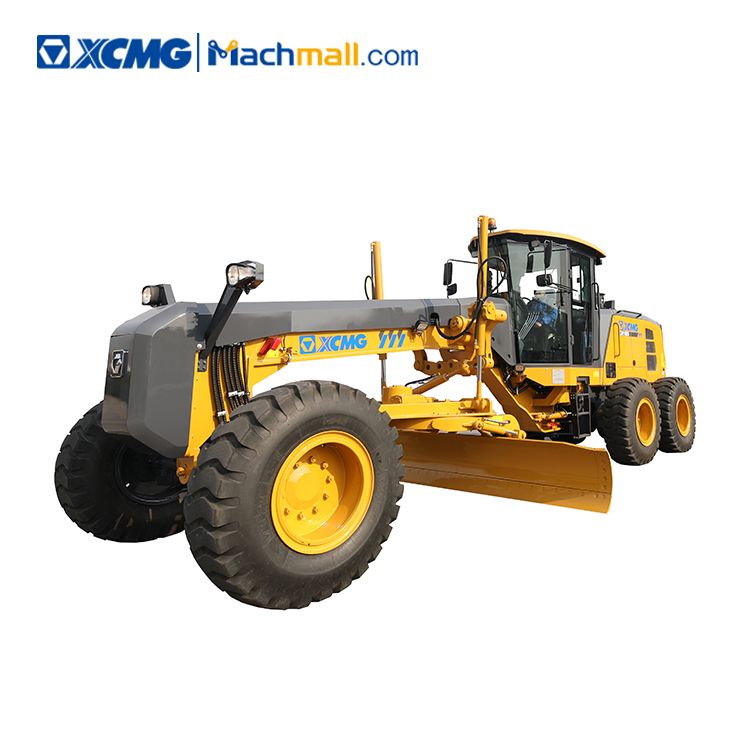

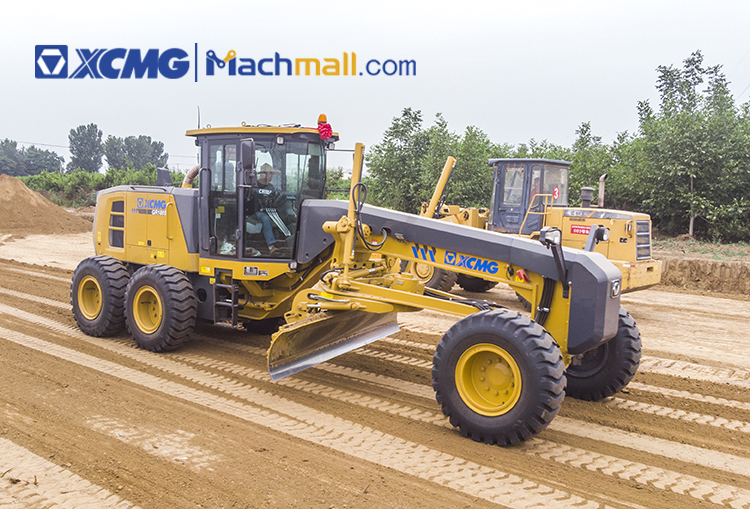

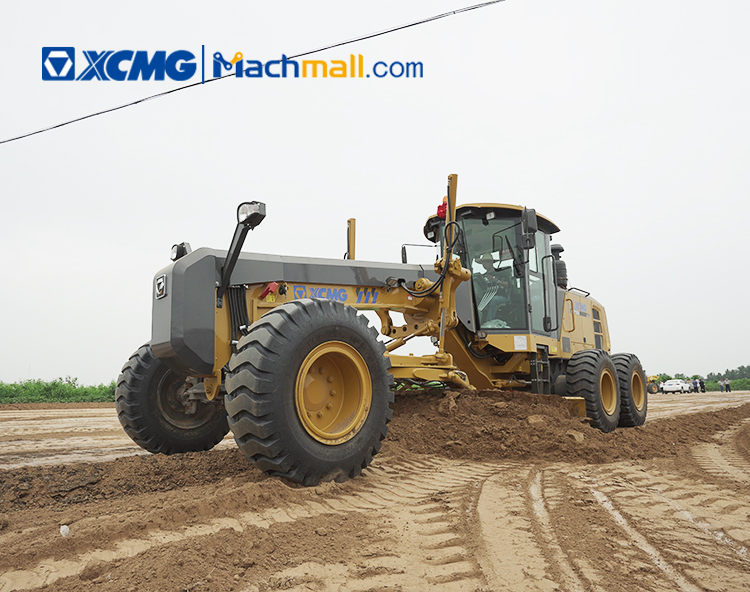

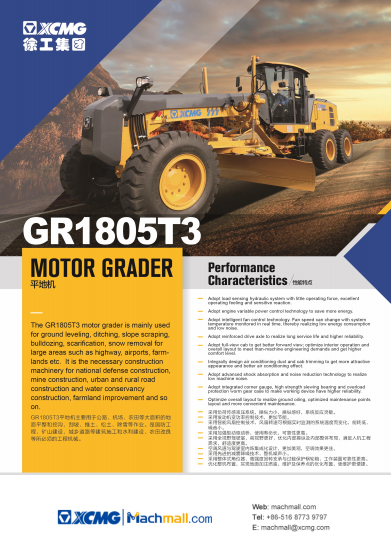

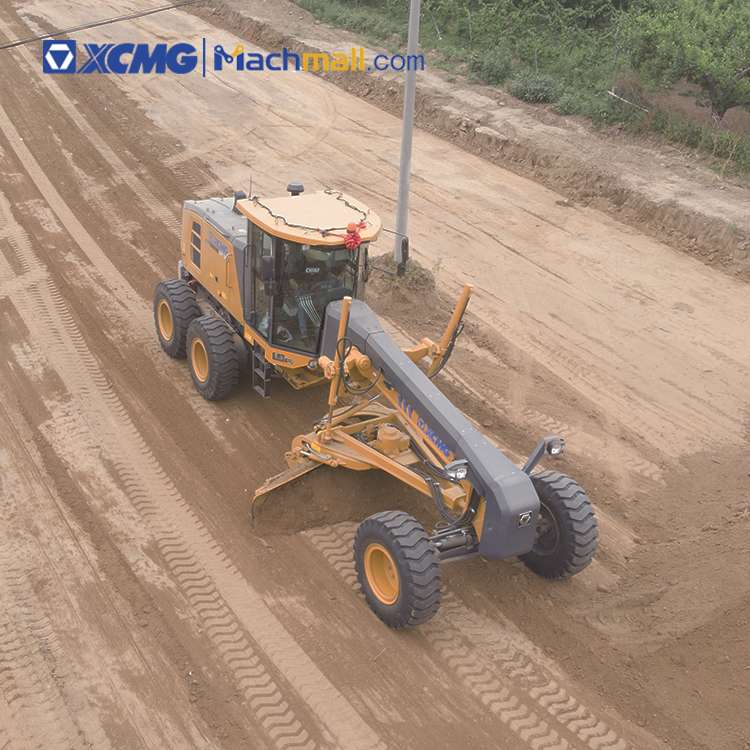

XCMG official 140kW motor graders GR1805T3.
XCMG motor graders GR1805T3 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.
XCMG motor graders GR1805T3 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Performance Characteristics:
1. XCMG motor graders GR1805T3 is equipped with a high-efficiency transmission turbine box and adopting reinforced front and rear axles, with long service life and higher reliability;
2. Engine variable power control technology, more energy efficient; Advance antivibration and noise reduction technology, low noise of the whole machine.
3. Maintenance accessibility, adopting the backflip hydraulic lift hood, the machine cover is has large opening, easy for maintenance and repair of the machine.
4. Functional extension, a variety of optional parts, extending the machine performance and application range.
|
Items |
GR1805T3 |
||
|
Basic Parameters |
Engine model |
SC7H190 |
|
|
Rated power/speed |
140kW/2200rpm |
||
|
Overall dimensions (standard configuration) |
9331×2625×3330mm |
||
|
Overall weight (standard configuration) |
16000 kg |
||
|
Tyre specification |
17.5-25 |
||
|
Wheel track |
2156mm |
||
|
Distance between front and rear axles |
6516mm |
||
|
Distance between middle and rear wheels |
1568mm |
||
|
Performance Parameters |
Forward speed |
5、8、13、18、30、47km/h |
|
|
Reverse speed |
5、13、30km/h |
||
|
Traction f=0.75 |
83 kN |
||
|
Maximum gradeability |
≥25% |
||
|
Tyre inflation pressure |
260kPa |
||
|
Working system pressure |
24.5MPa |
||
|
Gearbox pressure |
1.85—2.2Mpa |
||
|
Working Parameters |
Maximum steering angle of front wheel |
±48° |
|
|
Maximum tilting angle of front wheel |
±18° |
||
|
Maximum swinging angle of front axle |
±16° |
||
|
Maximum swinging angle of balance box |
±15° |
||
|
Maximum steering angle of frame |
±20° |
||
|
Minimum turning radius |
7.2m |
||
|
Shovel blade |
Maximum lifting height |
450mm |
|
|
Maximum shoveling depth |
715mm |
||
|
Maximum tilting angle |
90° |
||
|
Cutting angle |
Front 40°; Rear 5° |
||
|
Length × Chord height |
3965X610mm |
||
|
Oil Filling Volume |
Coolant |
50L |
|
|
Fuel tank |
380L |
||
|
Engine |
24L |
||
|
Gearbox |
38L |
||
|
Balance box |
120L |
||
|
Driving axle |
36L |
||
|
Hydraulic oil |
270L |
||
