XCMG Official GR2403 Motor Grader for sale
![](/app/topc/statics/images/close.png)
![XCMG Official GR2403 Motor Grader for sale](http://www.machmall.com/images/store/357636/item/GR2403_JPG.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Dimension(L*W*H):8970 x 2625 x 3420mm
- Weight:17000kg
- Model Number:GR2403
- Brand Name:XCMG
- Place of Origin:China
- Reverse Speed(km/h):5、11、23km/h
- Forward Speed(km/h):5、8、11、19、23、38km/h
- Certification:Can provide relevant certification
Specifications
- weight:17000.000kg
- Condition:New
- Moving Type:Wheel
- Engine model:QSB6.7
- Rated power/speed:178kW/2000rpm
- Tire specification:17.5-25
- Ground clearance (front axle):430mm
- Space of front and rear axles :6219 mm
- Tractive effort f=0.75:≥87kN
- Working system pressure:20MPa
- Maximum steering angle of front wheel:±48°
- Minimum turning radius:7.3m
- Maximum lift height:400mm
- Maximum shoveling depth:500mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Item |
Unit |
GR2403 |
||
Basic parameters |
Engine model |
QSB6.7 |
||
Rated power/speed |
kW/rpm |
178/2000 |
||

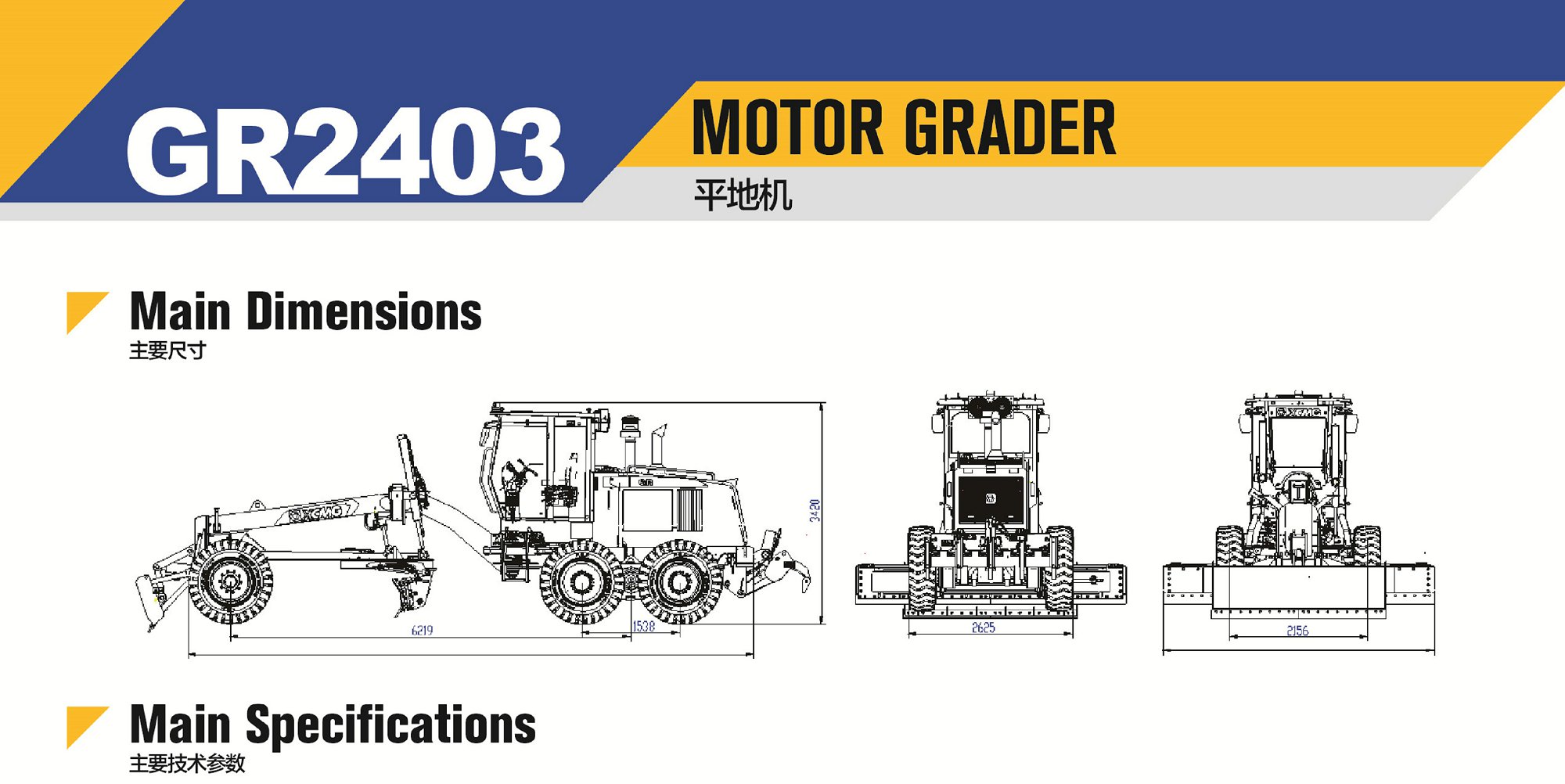

Overall dimension(standard) |
mm |
8970 x 2625 x 3420 |
||
Total weight(standard) |
kg |
17000 |
||
Tire specification |
17.5-25 |
|||
Ground clearance |
mm |
430 |
||
Tread |
mm |
2156 |
||
Space of front and rear axles |
mm |
6219 |
||
Space of middle and rear wheels |
mm |
1538 |
||
Performance parameters |
Forward velocity |
km/h |
5、8、11、19、23、38 |
|
Reverse speed |
km/h |
5、11、23 |
||
Tractive effort f=0.75 |
kN |
≥87 |
||
Maximum gradeadbility |
% |
≥25 |
||
Inflation pressure of tires |
kPa |
260 |
||
Working system pressure |
MPa |
20 |
||
Transmission pressure |
MPa |
1.3-1.8 |
||
Working parameters |
Maximum steering angle of front wheels |
° |
±48 |
|
Maximum inclination angle of front wheels |
° |
±17 |
||
Maximum swing angle of front axle |
° |
±15 |
||
Maximum swing angle of balance box |
° |
front 15, rear 15 |
||
Maximum steering angle of frame |
° |
±27 |
||
Maximum turning radius |
m |
7.3 |
||
Blade |
Maximum lifting height |
mm |
400 |
|
Maximum shoveling depth |
mm |
500 |
||
Maximum lateral inclination angle |
° |
90 |
||
Cutting angle |
° |
28-70 |
||
Oil filling amount |
Slewing angle |
° |
360 |
|
Length x chord height |
mm |
3965 x 610 |
||
Coolant |
L |
50 |
||
Fuel tank |
L |
280 |
||
Engine |
L |
24 |
||
Transmission |
L |
38 |
||
Balance box |
L |
46 |
||
Drive axle |
L |
28 |
||
Hydraulic oil |
L |
110 |
