Specifications
- Weight:11000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

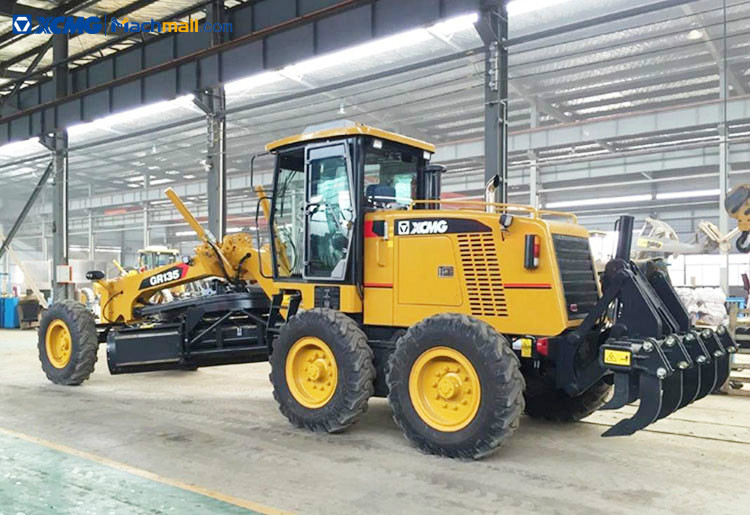

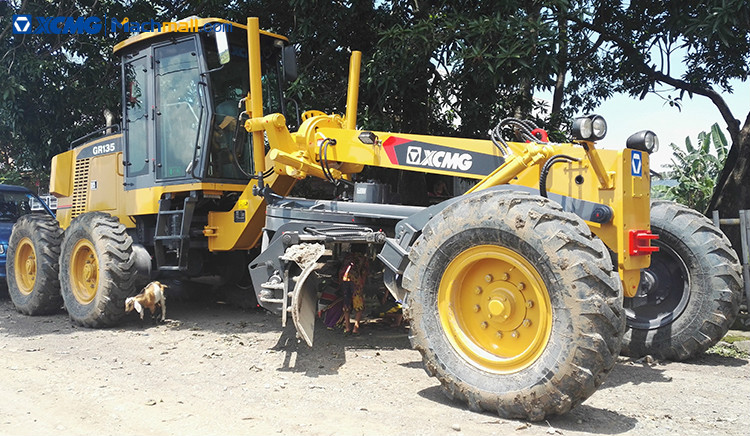

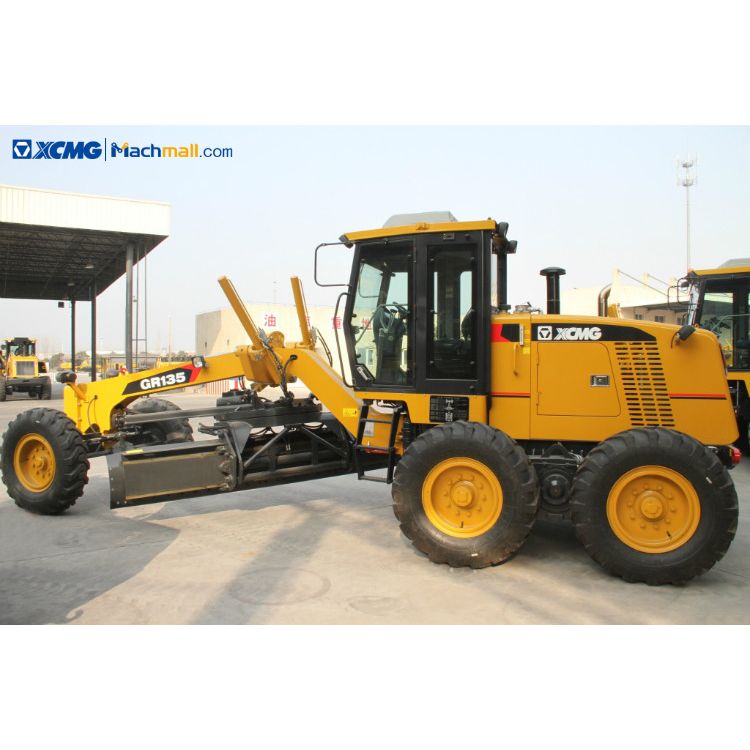

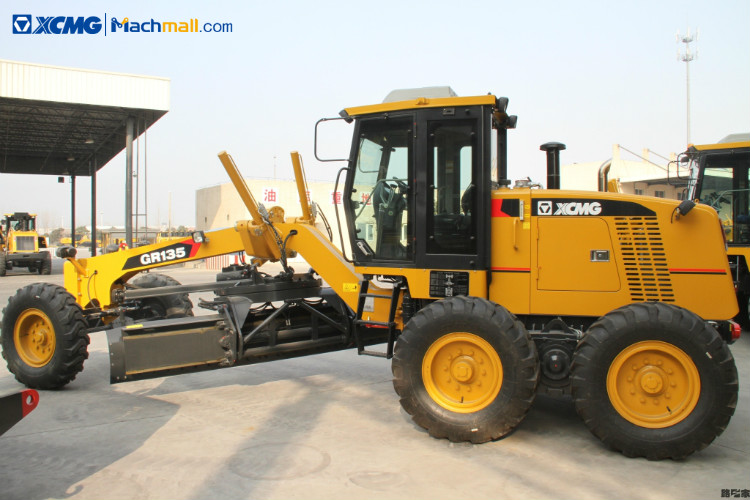

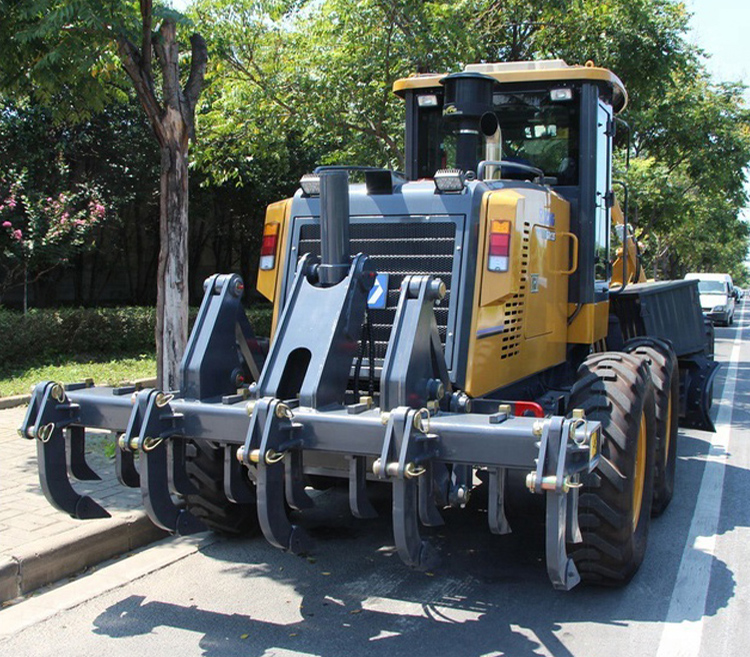

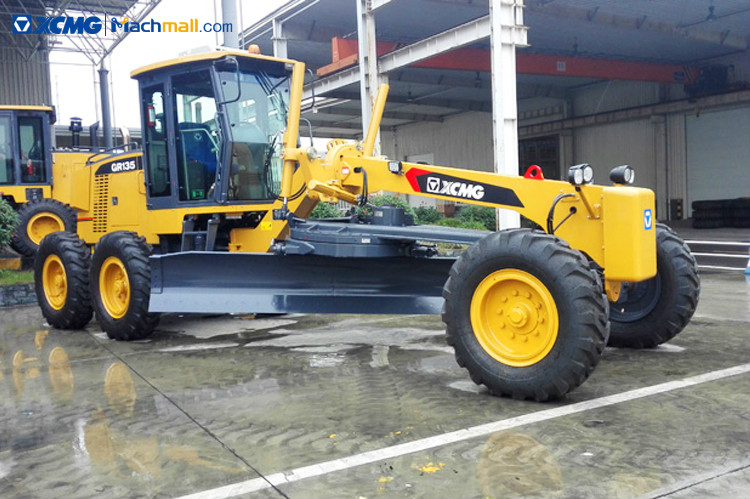

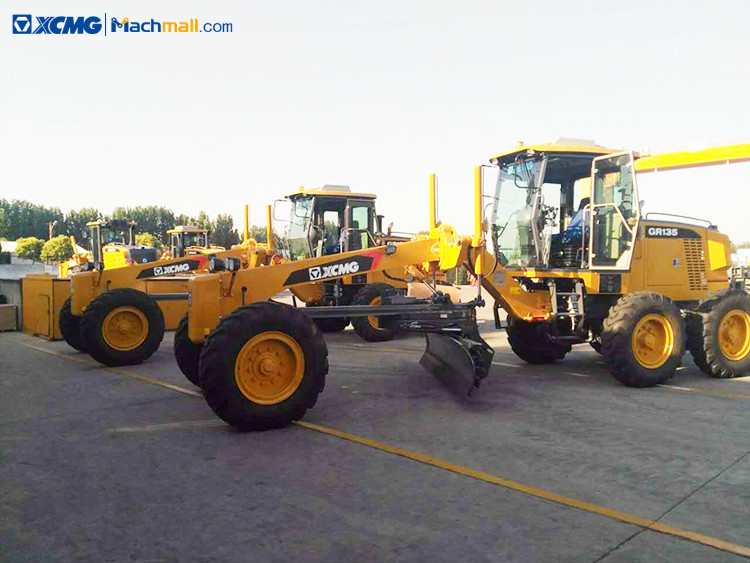

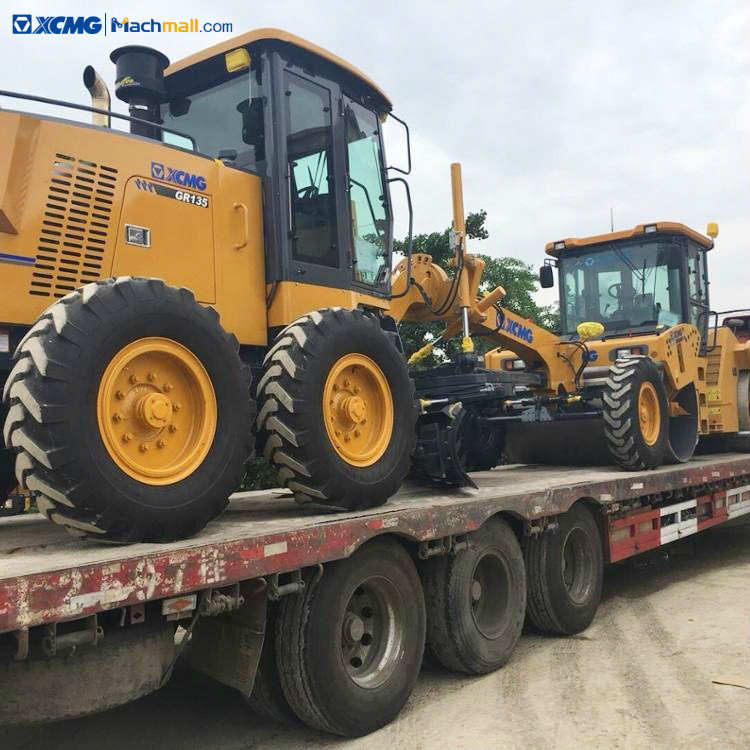

XCMG motor grader GR135 135hp new small motorgrader with ripper.

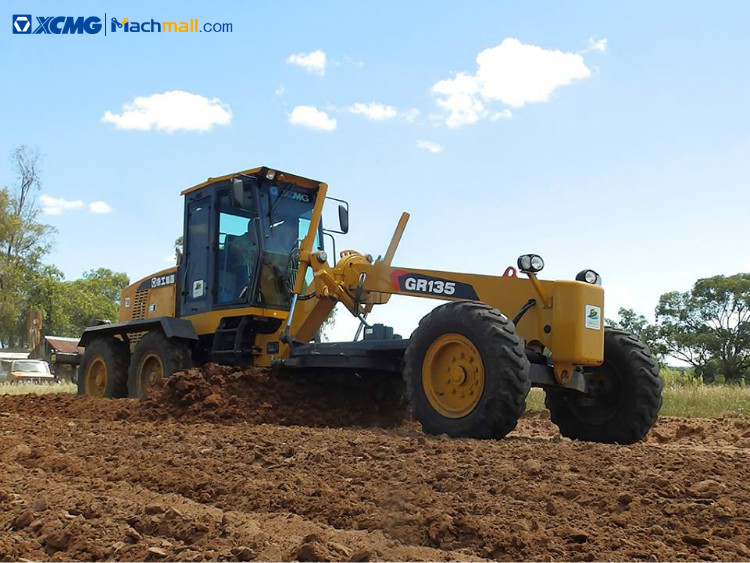

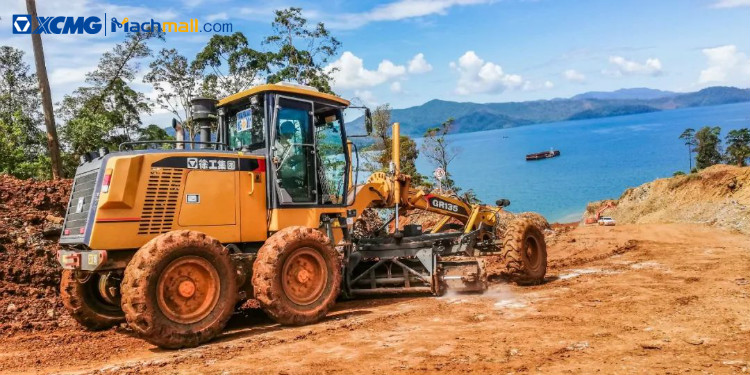

XCMG motor grader with ripper GR135 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farm-lands etc.
XCMG motor grader GR135 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
1. GR135 adopt Dongfeng 6BT5.9-C130- II turbocharged diesel engine, Large output torque and power reserve coeficient and low oil consumption.
2. Torque converter has big torque coefficient, wide high efficiency area. It has good combination working characteristics with engine. The transmis- sion box has six forward gears, three backward gears, with neutral start
protection function, gear shift controlled by electro-hydraulic, flexible operation, shift without impact, reasonable speed ratio distribution, meet the requirements of various working conditions.
3. The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability. The main drive of the rear axle is equipped with“NO - SPIN" self-locking differential.
4. The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the articulated frame, which can further reduce the turning radius.
5. The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the maintainability.
|
Item |
|
|
GR135 |
|
Basic parameters |
Engine model |
|
6BT5.9-C130-Ⅱ |
|
|
Rated power/speed |
|
97(2200r/min) |
|
|
Overall dimension (standard) |
|
8015*2380*3050mm |
|
|
Total weight (standard) |
|
11000kg |
|
|
Tire specification |
|
13.00-24 |
|
|
Ground clearance (front axle) |
|
515mm |
|
|
Tread |
|
2020mm |
|
|
Space of front and rear axles |
|
5780 mm |
|
Performance parameters |
Forward velocity |
|
5、8、13、20、30、42km/h |
|
|
Reverse speed |
|
5、13、30km/h |
|
|
Tractive effort f=0.75 |
|
61.3kN |
|
|
Maximum gradeability |
|
0.2 |
|
|
Tire inflation pressure |
|
300kPa |
|
|
Working system pressure |
|
16MPa |
|
|
Transmission pressure |
|
1.3—1.8Mpa |
|
Working parameters |
Maximum steering angle of front wheel |
|
±49° |
|
|
Maximum slant angle of front wheel |
|
±17° |
|
|
Maximum oscillating angle of front axle |
|
±15° |
|
|
Maximum oscillating angle of equilibrium box |
|
±16° |
|
|
Maximum steering angle of frame |
|
±27° |
|
|
Minimum turning radius |
|
6.6m |
|
|
Scrape knife |
Maximum lift height |
410mm |
|
|
|
Maximum cutting depth |
515mm |
|
|
|
Maximum tilt angle |
90° |
|
|
|
Cutting angle |
54°—90° |
|
|
|
Angle of revolution |
360° |
|
|
|
Length & chord height |
3660*610mm |
|
Oil filling amount |
Coolant |
|
50L |
|
|
Fuel tank |
|
280L |
|
|
Engine |
|
18L |
|
|
Transmission |
|
26L |
|
|
Hydraulic oil |
|
96L |
|
|
Drive axle |
|
28L |
|
|
Balancing box |
|
46 L |
