GR135

Specs & Compare

Details

Specifications

Weight:11000.000kg
Condition:New
Moving Type:Other
Forward Speed:42km/h
Reverse Speed:30km/h
Dimension(L*W*H):8015*2380*3050mm
Space of front and rear axles:5780mm
Maximum lift height:410mm

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG official 135HP mini motor grader machine GR135 for sale

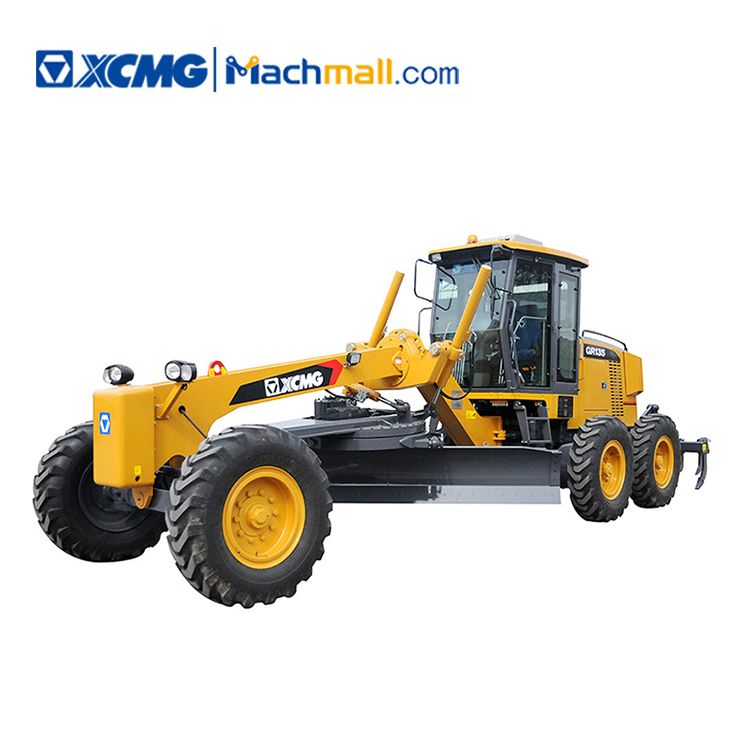

XCMG official 135HP mini motor grader machine GR135.

XCMG motor grader GR135 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farm- lands etc.

XCMG motor grader GR135 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

Advantages and Highlights:

1. XCMG motor grader GR135 adopt Dongfeng cummins 6BT5.9-C130- II turbocharged diesel engine, Large output torque and power reserve coeficient and low oil consumption.

2. Torque converter has big torque coefficient, wide high efficiency area, meet the requirements of various working conditions.

3. The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability.

4. The front axle is steering axle. Can further reduce the turning radius.

5. The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the maintainability.

XCMG official 135HP mini motor grader machine GR135 for sale

Item			GR135
Basic parameters	Engine model		6BT5.9-C130-Ⅱ
	Rated power/speed		97(2200r/min)
	Overall dimension (standard)		8015X2380X3050
	Total weight (standard)		11000kg
	Tire specification		13.00-24
	Ground clearance (front axle)		515mm
	Tread		2020mm
	Space of front and rear axles		5780 mm
Performance parameters	Forward velocity		5、8、13、20、30、42km/h
	Reverse speed		5、13、30km/h
	Tractive effort f=0.75		61.3kN
	Maximum gradeability		20%
	Tire inflation pressure		300kPa
	Working system pressure		16MPa
	Transmission pressure		1.3—1.8Mpa
Working parameters	Maximum steering angle of front wheel		±49°
	Maximum slant angle of front wheel		±17°
	Maximum oscillating angle of front axle		±15°
	Maximum oscillating angle of equilibrium box		±16°
	Maximum steering angle of frame		±27°
	Minimum turning radius		6.6m
	Scrape knife	Maximum lift height	410mm
		Maximum cutting depth	515mm
		Maximum tilt angle	90°
		Cutting angle	54°—90°
		Angle of revolution	360°
		Length & chord height	3660x610mm

XCMG official 135HP mini motor grader machine GR135 for sale
