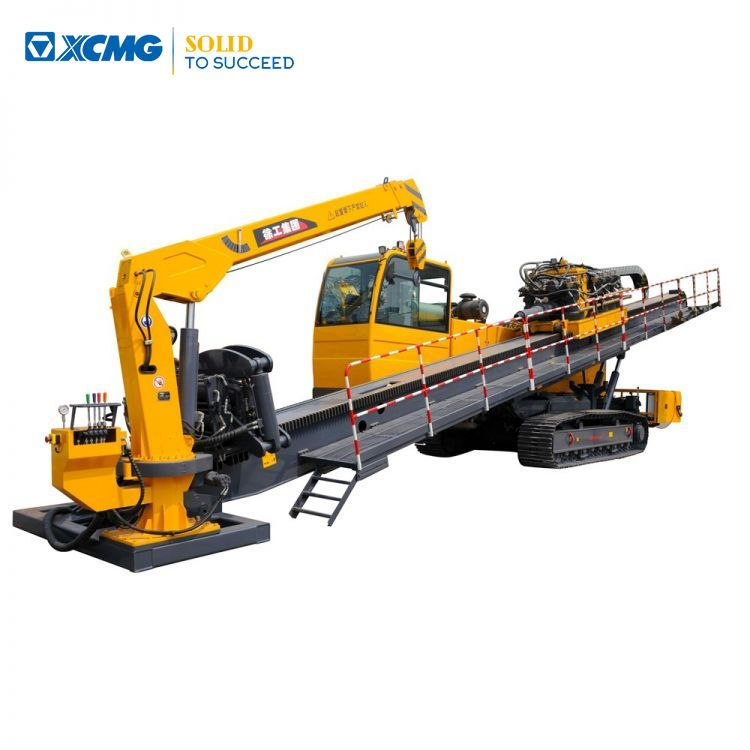

XCMG official manufacturer XZ2860Plus Horizontal Directional Drill (HDD)
Summary
- Certification:ISO9001
- Dimension(L*W*H):17500×3200×3550mm
- Weight:48000kg
- Power(W):264kw
- Model Number:XZ2860Plus
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Horizontal Directional Drill
Specifications
- Weight:48000.000kg
- Condition:New
- Moving Type:Crawler
- Max.thrust-pull force:3600kN
- Max. thrust-pull speed:25m/min
- Max. spindle speed:76r/min
- Max. inclination angle:16
- Max. torque:110000N •m
- engine model(China II ):6LTAA8.9-C360(optional)
- rated power(China II ):528 kW (264×2)/(2200 r/min) (optional)
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XZ2860Plus Horizontal Directional Drill
1、Numerical meter display theworking torque, push or pull force and so on parametric in working conditions.Electronic sensor has rapid reaction and can show overload immediately. It alsoendures accuracy and delay of the traditional hydraulic meter’s indication. Itsolve the matter to depend the operator to calculate the torque and force bythe equipment’s switch directive.
2、Drill frame slide by thecylinder. Combine with link weldment. It is easy safe and simple to adjust theentry angle of the equipment. The gearbox adopts three methods to avoid thestrike on the end of the drill frame. So it is more safety to the HDD.
3、Dual-engines areused. The HDD has all the motion on the condition of any engine starting.Multi-condition technology of adjusting the travel speed combining with themulti-speed control of rotation and push or pull make HDD be suitable to thecomplex geology. You can use one engine in the condition of small pipe diameterin order to reduce the fuel consume. So it is inexpensive in construction.
4、Clamp can travel on thedrill frame. It has the future of big torque and convenience of cathead. TheHDD adopt the patent of rotation tooth. It is easy to achieve in clipping thepipe. It is reliable in clamping.
5、The HDD adopt Overloadprotection. Torque and force and cylinder can adjust by the digital technique.It is easy and simple to adjust. and can be betoken in advance.
6、The HDD’s rotation adoptclosed hydraulic system and it’s push or pull adopt load sensitivitytechnology. The main part of hydraulic and electric and transmission are madeof world first-class brand products, good performance, good reliability.
|
Item |
Date |
|
|
Engine |
Manufacturers |
Cummins |
|
Model |
QSL8.9 |
|
|
6LTAA8.9-C360(optional) |
||
|
Rated Power |
528
kW (264×2)/ (2100 r/min) |
|
|
528
kW (264×2)/ (2200 r/min) (optional) |
||
|
Thrust-Pull |
Max pull/thrust force |
2860/2860
kN (XZ2860) |
|
3600/3600
kN (XZ2860Plus) |
||
|
Max pull/thrust speed |
25m/min |
|
|
Rotation |
Torque（N·m） |
90000
N·m(XZ2860) |
|
110000
N·m(XZ2860Plus) |
||
|
Max spindle speed（r/min） |
95 r/min
(XZ2860) |
|
|
76 r/min
(XZ2860Plus) |
||
|
Loader Crane |
Lifting weight |
3.2t |
|
Loading capacity |
6.4t·m |
|
|
Max inclination angle |
/ |
16 |
|
Travel driving |
Type |
Steel crawler self-propelled |
|
Traveling speed（Km/h） |
1.5 |
|
|
Pipe |
Diameter × Length（mm×mm） |
Φ140×9600
mm×mm |
|
Weight |
/ |
46000kg (XZ2860) 48000kg
(XZ2860Plus) |
