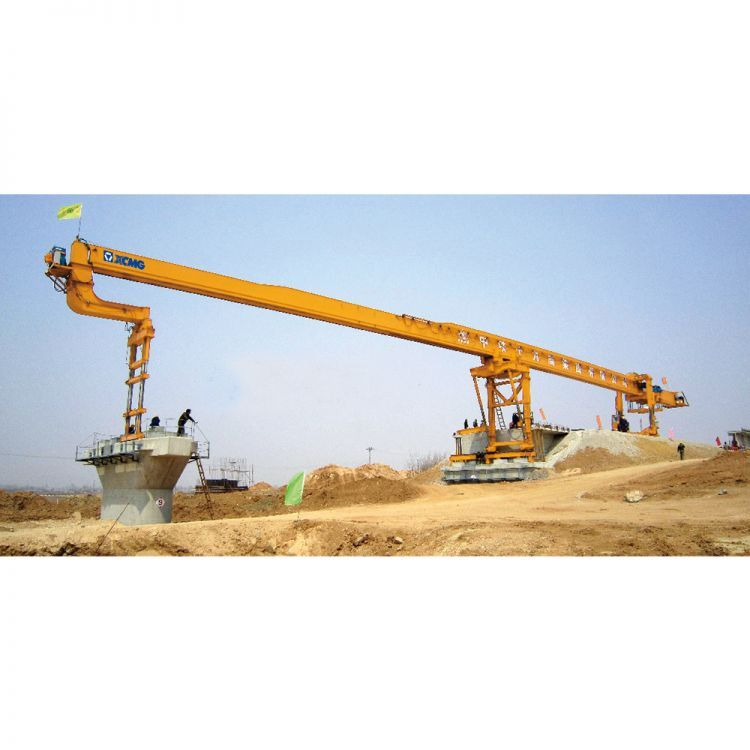

XCMG Official Manufacturer TJ180L Bridge-erecting machine for sale
Summary
- Overall Dimension(L*W*H): 75300×5200×8400 mm
- Weight:170000 kg
- Model Number: TJ180L
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
Specifications
- Weight:170000.000kg
- Condition:New
- Moving Type:Other
- Rate lifting capacity:180 t
- Total weight of main machine:170 t
- Suitable span:≤32 m(railway),≤40 m(highway)
- Erection beam piece:≤25‰(railway),≤40‰(highway)
- Erection bridge type:Straight axle,curved axle R≥400m
- Bridging speed:1 pcs/h
- Via hole speed for complete vehicle:3 m/min
- Lengthways move for crown block:5 m/min
- Hanging beam lifting speed:0.8 m/min
- Lateral moving speed of hanging beam complete machine:2.5 m/min
- Outline dimension of complete vehicle:75300*5200*8400 mm
- Power equipment:80 kW
- Traveling mechanism:Tire or wheel track
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
TJ180L Bridge-Erecting Machine
Main Applications
It’s
used to erect the prestressed reinforced concrete girder segments in span of
≤40m for road bridges and the T-girders (girders 2201, 2101, and 2103 for
common bridges) and girder 9753 for special bridges for ≤200km/h mixed
passenger and freight new and renovated railways.
This
machine is of single-boom simple support type with wheeled/rail-mounted type
through-hole mode and can mechanically traverse the girder segments in full
amplitude to realize one-time proper placement of girder segments
Technical Features
The
single-span body structure and the front outriggers in triangular structure
remarkably improve the machine stability.
The
three-outrigger structure features optimized and compact machine structure,
requiring no anchorage throughout the operations.
The
through-hole traveling adopts wheel-drive mode to remarkably improve the
through-hole efficiency.
The
operator can easily master the simple and convenient working procedures and the
simple and clear working principles to better guarantee the operation safety.
|
Rate lifting capacity |
180 t |
|
Total weight of main machine |
170 t |
|
Suitable span |
≤32 m(railway),≤40 m(highway) |
|
Erection beam piece |
≤25‰(railway),≤40‰(highway) |
|
Erection bridge type |
Straight axle, curved axle R≥400m |
|
Bridging speed |
1 pcs/h |
|
Via hole speed for complete vehicle |
3 m/min |
|
Lengthways move for crown block |
5 m/min |
|
Hanging beam lifting speed |
0.8 m/min |
|
Lateral moving speed of hanging beam complete machine |
2.5 m/min |
|
Outline dimension of complete vehicle |
75300*5200*8400 mm |
|
Power equipment |
80 kW |
|
Traveling mechanism |
Tire or wheel track |
