Summary
Specifications
- Weight:13300.000kg
- Engine Brand:SHANGCHAI
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

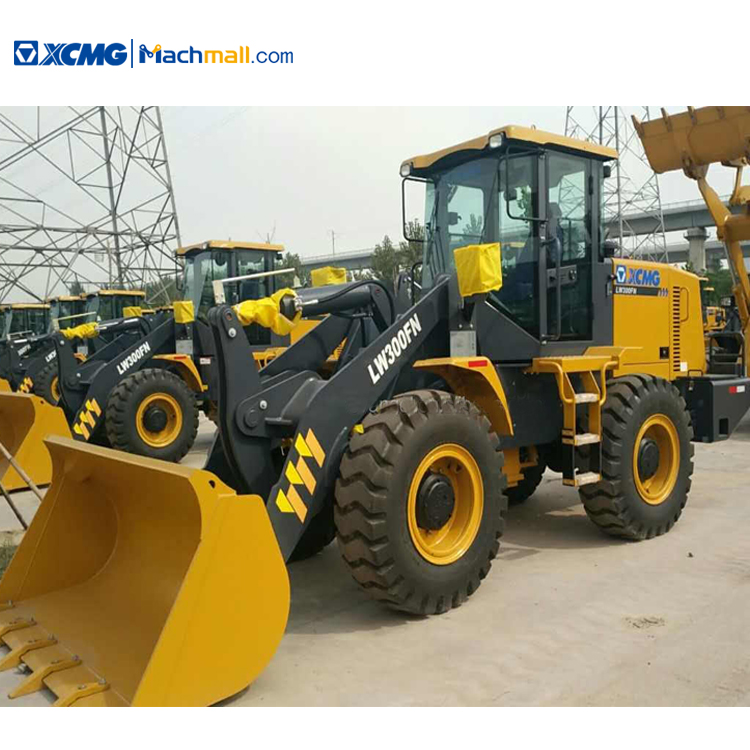

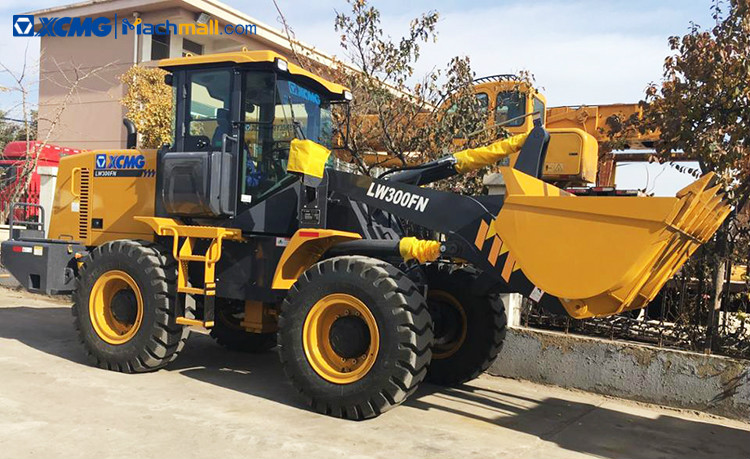

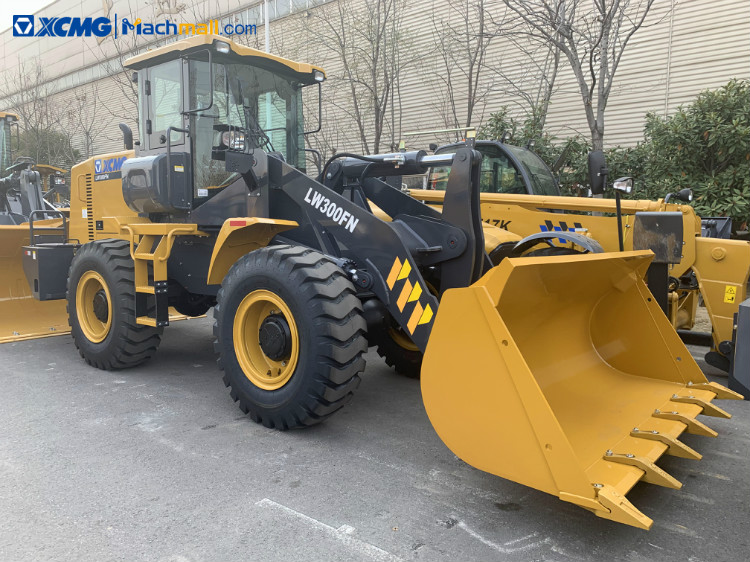

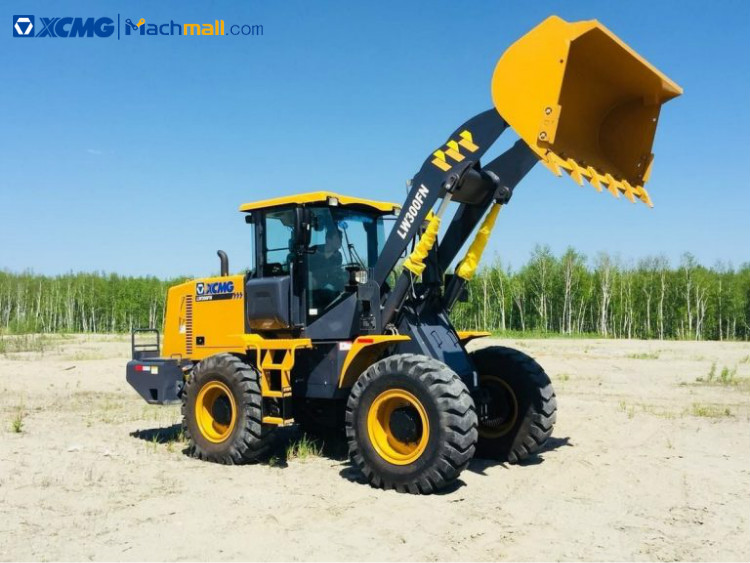

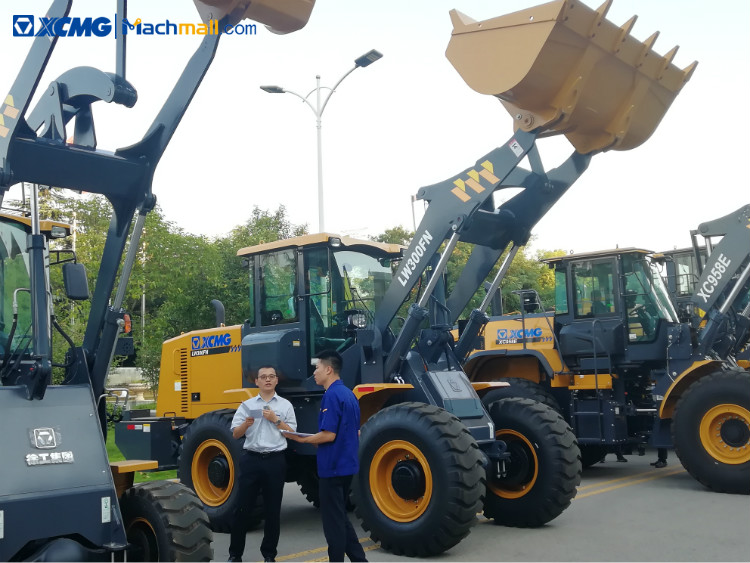

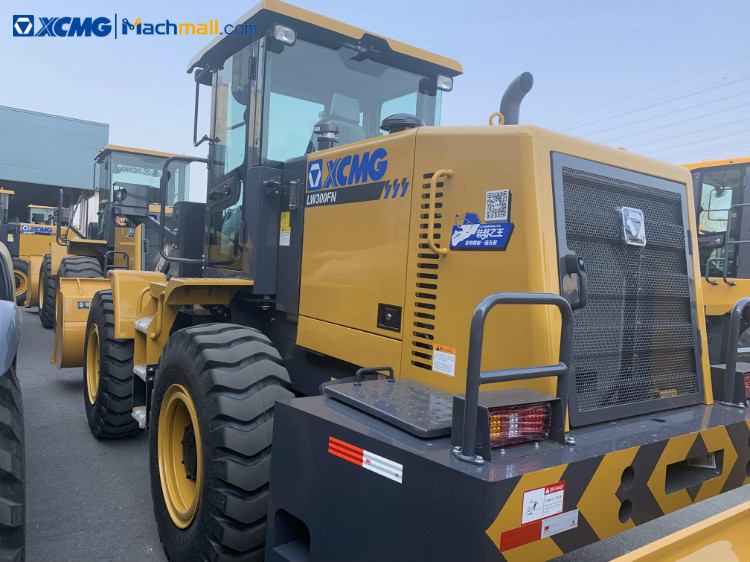

XCMG loader LW300FN 2.5m3 92kw 3 ton loader.
XCMG loader LW300FN is the most popular model of China 3t wheel loader, updated from the old model zl30g, now LW300FN is upgrading to new model LW300FV equipped with EURO III engine with electric injector, new model will have high performance.
1. It features high efficiency, energy-saving, and strong power.
2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
4. The bucket is made of high strength material to realize high wear and impact resistance.
5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.
6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
XCMG loader LW300FN performance highlights:
Outstanding capability, with traction at ≥9t and breakout force at ≥13t. High adaptability, with turning radius at 5,165mm (tire center).
Variety attached tools meeting requirements of different working conditions:

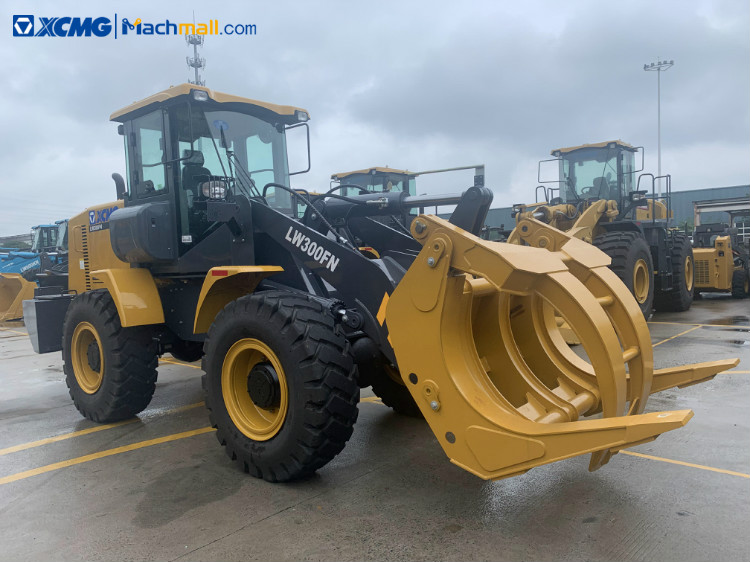

Log clamp I/ Log clamp IV (offset tooth)/ Toad's mouth clamp/ Paired and Staggered interconvert/ Grasping grass machine/ Pallet fork/ Snowplow.
|

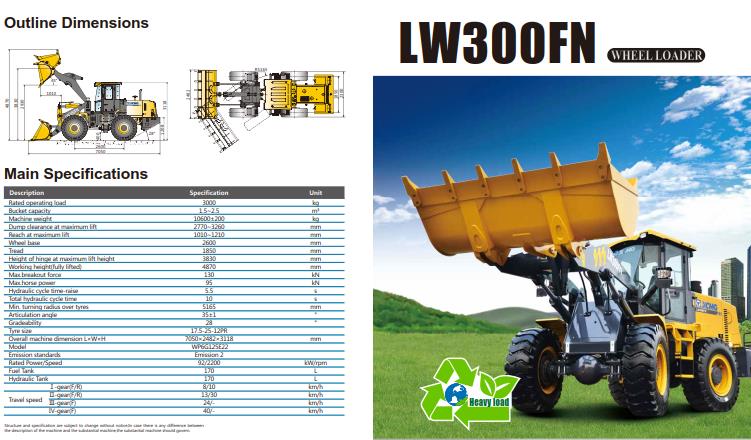

Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
3000 |
|
Bucket capacity |
m³ |
1.5~2.5 |
|
Machine weight |
kg |
10600±200 |
|
Dump clearance at maximum lift |
mm |
2770~3260 |
|
Reach at maximum lift |
mm |
1010~1210 |
|
Wheel base |
mm |
2600 |
|
Tread |
mm |
1850 |
|
Height of hinge at maximum lift height |
mm |
3830 |
|
Working height(fully lifted) |
mm |
4870 |
|
Max.breakout force |
kN |
130 |
|
Max.horse power |
kN |
95 |
|
Hydraulic cycle time-raise |
s |
5.5 |
|
Total hydraulic cycle time |
s |
10 |
|
Min. turning radius over tyres |
mm |
5165 |
|
Articulation angle |
° |
35±1 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
17.5-25-12PR |
|
Overall machine dimension L×W×H |
mm |
7050×2482×3118 |
|
Model |
|
WP6G125E22 |
|
Emission standards |
|
Emission 2 |
|
Rated Power/Speed |
kW/rpm |
92/2200 |
|
Fuel Tank |
L |
170 |
|
Hydraulic Tank |
L |
170 |
|
Ⅰ-gear(F/R) |
km/h |
44418 |
|
Ⅱ-gear(F/R) |
km/h |
13/30 |
|
Ⅲ-gear(F) |
km/h |
24/- |
|
Ⅳ-gear(F) |
km/h |
40/- |
