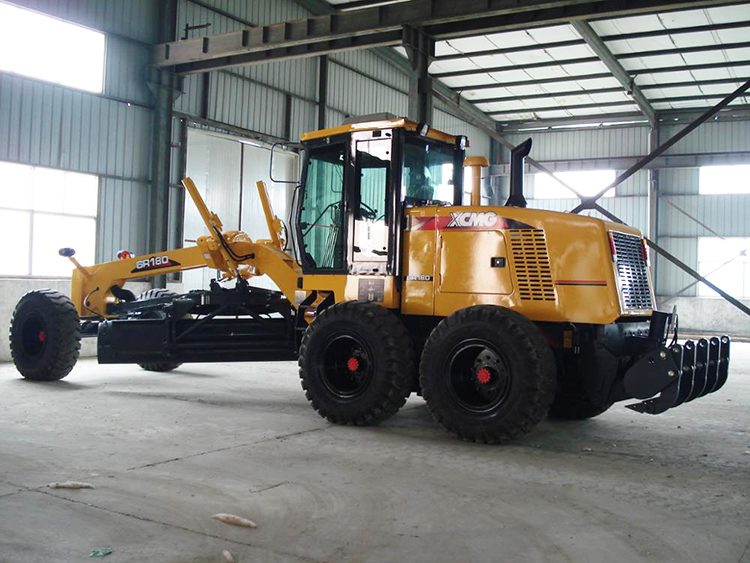

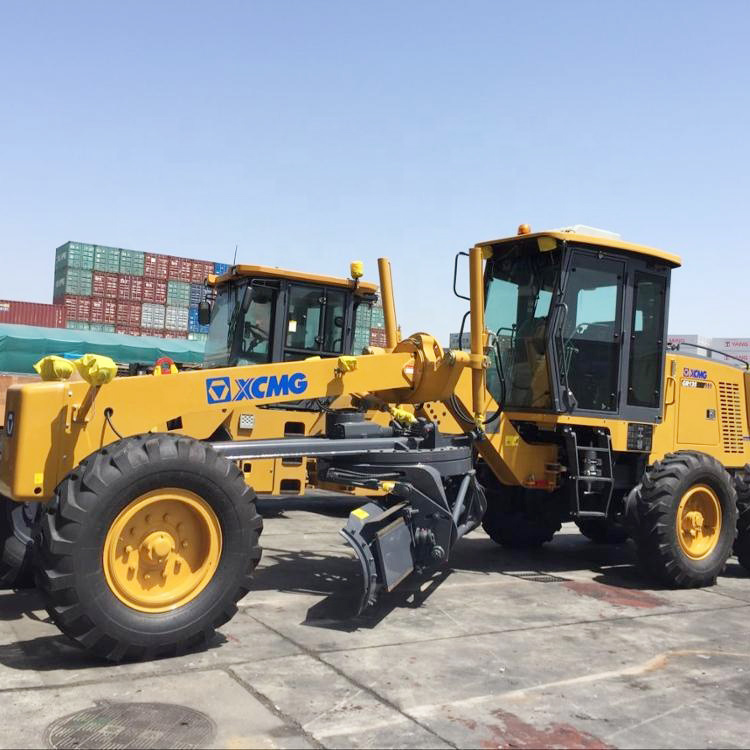

XCMG grader 180HP motor grader GR180 for sale
Specifications
- Weight:15400.000kg
- Condition:New
- Moving Type:Other
- Reverse Speed:23km/h
- Forward Speed:38km/h
- Dimension(L*W*H):8900*2625*3420mm
- Weight:15400kg
- Working system pressure:18MPa
- Space of front and rear axles:6219mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG grader 180HP motor grader GR180.
XCMG GR series motor graders cover a wide range of models, including small type,conventional type,mining type,type for cold zone, desert and plateau as well as CE certified series. There are mainly models of GR165/GR180/GR200/GR215/GR230.
The main performance characteristics of XCMG grader GR180 include:
1.Articulated frame, front wheel steering, small turning radius, maneuverability and flexibility.
2.Electro-hydraulic control power shift gearbox with 6 forward gears and 3 reverse gears.
3.Adopting internationalized hydraulic parts, reliable in work.
4.The rear axle is a three-stage drive axle equipped with a self-locking differential.
5.Adjustable console, seat, control handles and instruments are reasonably arranged, easy to use, and driving comfort is improved.
Optional device for XCMG grader GR180 motor grader:
Optional front bulldozing board, rear ripper, front ripper, and automatic leveling device.
Market share of XCMG grader:
XCMG GR series motor graders are leading the industry, and their Chinese market share and export volume have been ranked first in the industry for four consecutive years.
|
Item |
GR180 |
|
|
Basic parameters |
Engine model |
6CTA8.3-C190-Ⅱ |
|
Rated power/speed |
142kW/2200rpm |
|
|
Overall dimension (standard) |
8900x2625x3420 |
|
|
Total weight (standard) |
15400 kg |
|
|
Tire specification |
17.5-25 |
|
|
Ground clearance (front axle) |
430mm |
|
|
Tread |
2156mm |
|
|
Space of front and rear axles |
6219 mm |
|
|
Space of middle and rear wheels |
1538 mm |
|
|
Performance parameters |
Forward velocity |
5､8､11､19､23､38km/h |
|
Reverse speed |
5､11､23km/h |
|
|
Tractive effort f=0.75 |
≥79 kN |
|
|
Maximum gradeability |
≥25% |
|
|
Tire inflation pressure |
260kPa |
|
|
Working system pressure |
18MPa |
|
|
Transmission pressure |
1.3—1.8Mpa |
|
|
Oil filling amount |
Coolant |
50L |
|
Fuel tank |
280L |
|
|
Engine |
24L |
|
|
Transmission |
38L |
|
|
Balancing box |
46L |
|
|
Drive axle |
28L |
|
