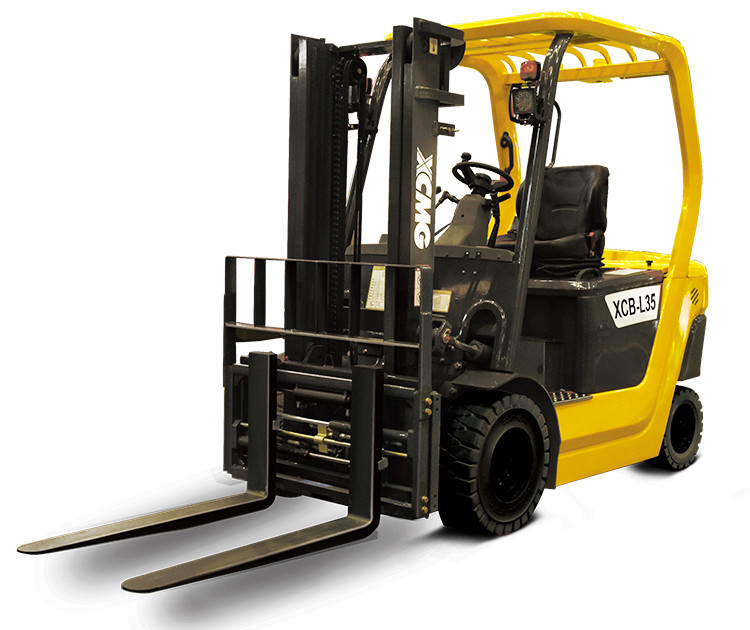

XCMG 3.5 T Forklift Electric China Fork Lift Trucks Machine XCB-L35 Price
Summary
- Fork Width:1270mm
- Fork Length:2555mm
- Max Lifting Height:3000mm
- Rated Loading Capacity:3500Kg
- Power Source:AC Motor
- Model Number:XCB-L35
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:3500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 3.5 T Forklift Electric
China Fork Lift Trucks Machine XCB-L35 Price.
* It features the breakthrough to the limitations of the
style design in forklift industry with its unique and brand new structural
appearance of XCMG. The application of XCMG XEC electrical control matching
technology provides multiple modes of speed selection for various different
working conditions. Better elevating speed with new safety mode is design for
easy and convenient operation. Through accurate electrical controlled
adjustment, the integrated drive axle can achieve the gradeability up to 17%.
* The application of XCMG XEC electrical control matching
technology not only improves the smoothness of vehicle starting, acceleration
and brake as well as the comfort of operation, but also enhance the protection
of materials and personnel. The hydraulic system is applying dual-seaI
structure of 24° cone and O-ing, effectively preventing the system from any
possible leakage. It is also using the most advanced sixth generalion
hydraulic cylinder to ensure the safety and reliability of operation.
* The covering parts can be removable without any help of
the tools, providing more space and convenience of maintenance.
* On the basis of
ergonomics, it is the first time in the industry configured with dual DOF
(degree of freedom) steering control mechanism of XCMG independent intellectual
property right to create a more oomfortable experience of operation and
control.
|
Model |
Unit |
XCB-L35 |
||
|
Rated capacity |
kg |
3500 |
||
|
Load center distance |
mm |
500 |
||
|
Size |
Max.lifting height |
mm |
3000 |
|
|
Free lifting height |
mm |
145 |
||
|
Mast tilt angle front/rear |
° |
6/12 |
||
|
Length fork excluded |
mm |
2555 |
||
|
Width |
mm |
1270 |
||
|
Mast height |
mm |
2060 |
||
|
Overhead guard height |
mm |
2200 |
||
|
Min.under clearance |
mm |
135 |
||
|
Wheel base |
mm |
1680 |
||
|
Min.Turning radius |
mm |
2770 |
||
|
Performance |
Travelling speed loaded/unloaded |
km/h |
16/17 |
|
|
Lifting speed loaded/unloaded |
mm/s |
330/450 |
||
|
Gradeability loaded/unloaded |
% |
15/17 |
||
|
Motor&Battery |
Motor |
Drive motor power |
kW |
16.6 |
|
Pump motor power |
kW |
13.5 |
||
|
Battery |
Voltage |
V |
80 |
|
|
Amphere |
Ah |
420/450/540 |
||
