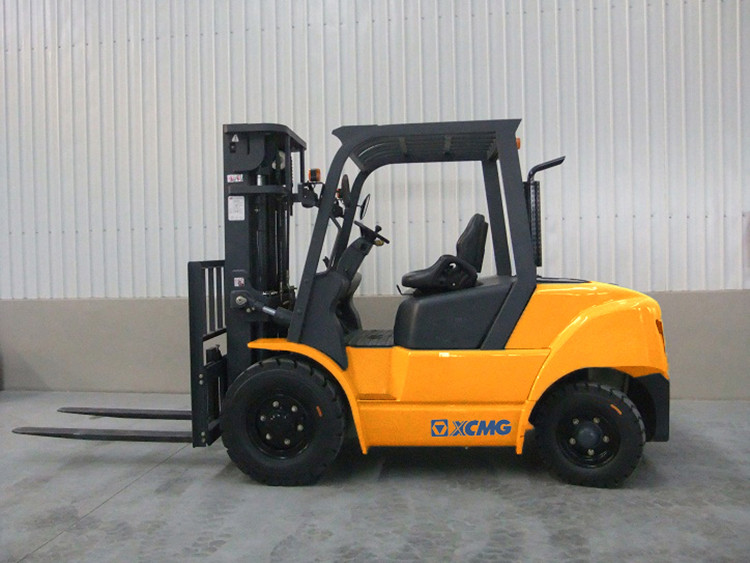

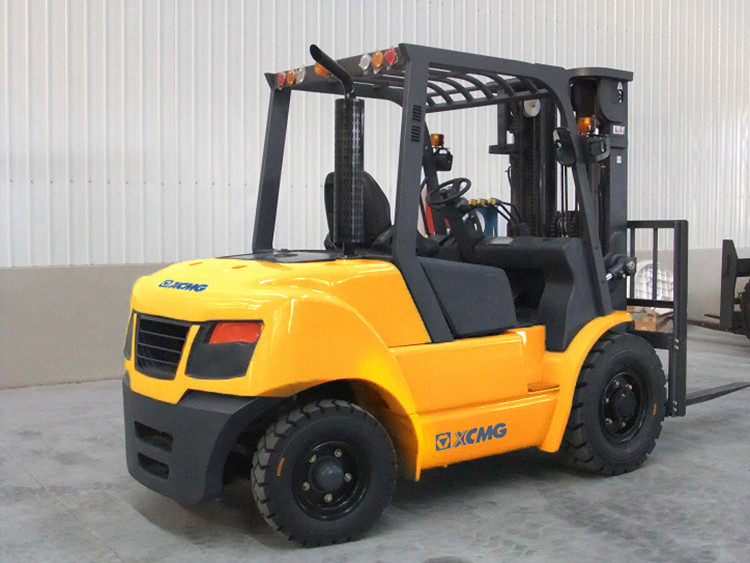

XCMG 4.5 Ton Diesel Forklift Truck China Fork Lift Trucks Machine FD45T With Perkins Engine Price
![](/app/topc/statics/images/close.png)
![XCMG 4.5 Ton Diesel Forklift Truck China Fork Lift Trucks Machine FD45T With Perkins Engine Price](http://www.machmall.com/images/store/357636/item/FD45T.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Fork Width:150mm
- Fork Length:1070mm
- Min Lifting Height:2262mm
- Max Lifting Height:4266mm
- Rated Loading Capacity:4500Kg
- Power Source:Diesel Engine
- Model Number:FD45T
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:4500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 4.5 Ton Diesel Forklift
Truck China Fork Lift Trucks Machine FD45T With Perkins Engine Price.
XCMG Diesel Forklift provide you with multiple choice as
per your real need,we have different reliable engines for choice. All these
engine have been tested that they can be trusted through all kinds of tough
working condition and get recognition from millions of client across the
worldwide.

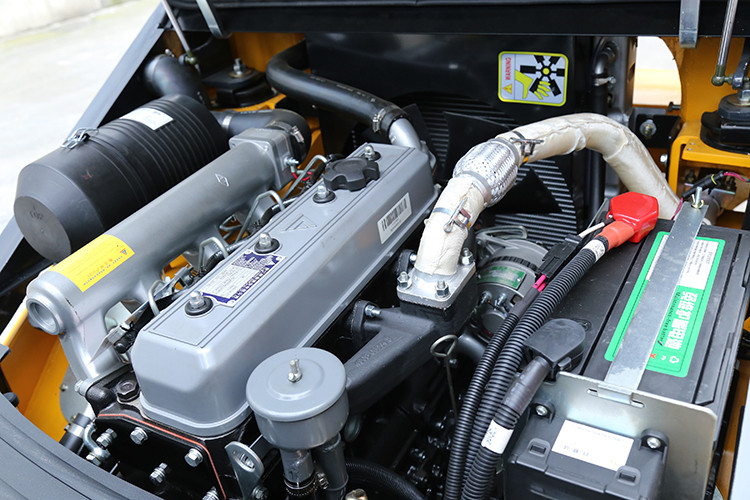

These engines are specifically designed for the forklift
use,with low fuel consumption,less noise and vibration,all these features
improve the whole performance of the forklift.
High efficiency is also delivered through the performance
of the axles,the excellent brake system make sure the forklift operate with
safety,the steering axle provide prompt and precise feedback to the driver when
steering.
[Advantages and Highlights]
1, One-piece designed of suspension
frame.
2, New water tank & cooling system.

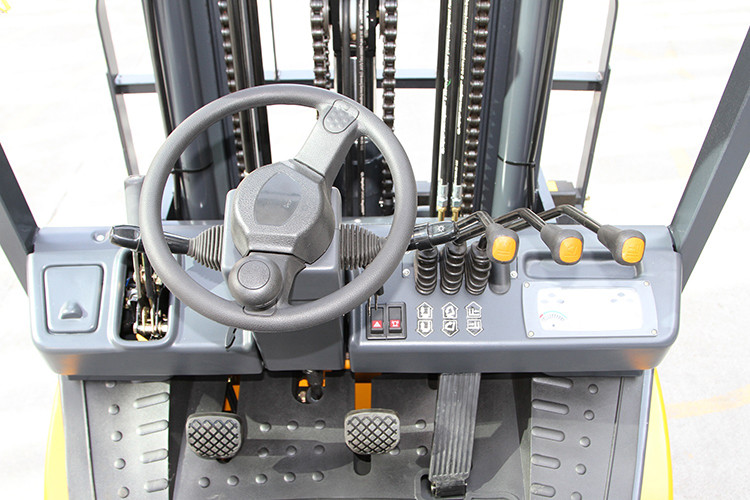

3, Larger operation space.Optimized steering wheel, operating handle and
pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating
safety.
Model |
FD45T-L |
FD45T-JK |
|
Power Type |
Diesel |
||
Rated Load Capacity |
Q(kg) |
4500 |
|
Load Centre |
C(mm) |
500 |
|
Rated Lift Height |
H3(mm) |
3000 |
|
Free Lift Height |
H2(mm) |
84 |
|
Fork Size (L×W×T) |
mm |
1070×150×50 |
|
Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
578 |
|
Rear Overhang |
X2(mm) |
570 |
|
Ground Clearance (Bottom of Mast) |
H7(mm) |
175 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
3091 |
|
Overall Width |
B1(mm) |
1485 |
|
Mast Lowered Height |
H1(mm) |
2260 |
|
Mast Extended Height (With Backrest) |
H4(mm) |
4266 |
|
Overhead Guard Height |
H5(mm) |
2240 |
|
Turning Radius (Outside) |
Wa(mm) |
2790 |
|
Travel Speed (No Load) |
km/h |
22 |
|
Lifting Speed (Full Load) |
mm/sec |
450 |
|
Tyre (Front x 2) |
mm |
300-15-18PR |
|
Tyre (Rear x 2) |
mm |
7.00-12-12PR |
|
Total Weight |
kg |
6800 |
|
Battery |
V/Ah |
24/80 |
|
Engine Model |
LR4B3-22 |
1104D-44 (Eu III) |
|
Engine Manufacturer |
YTO |
Perkins |
