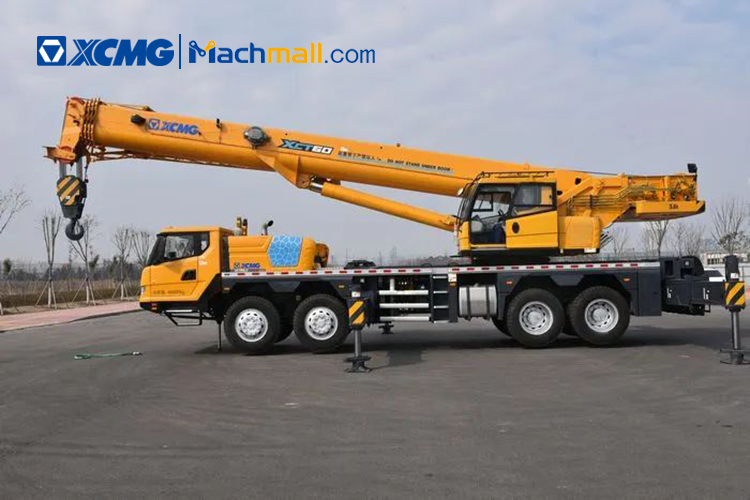

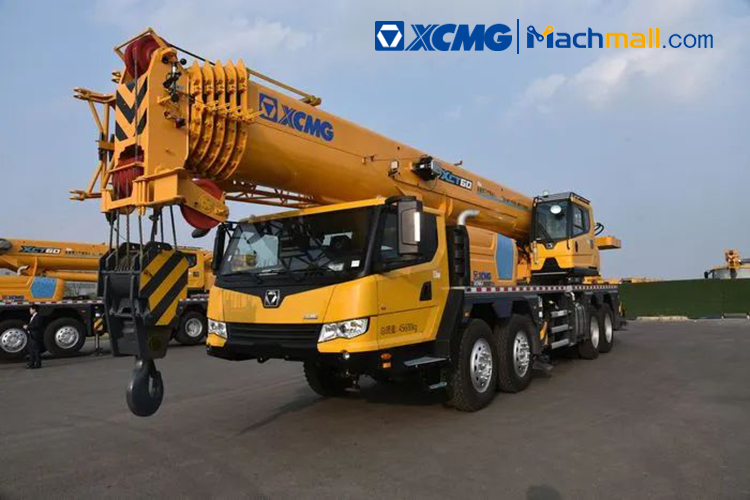

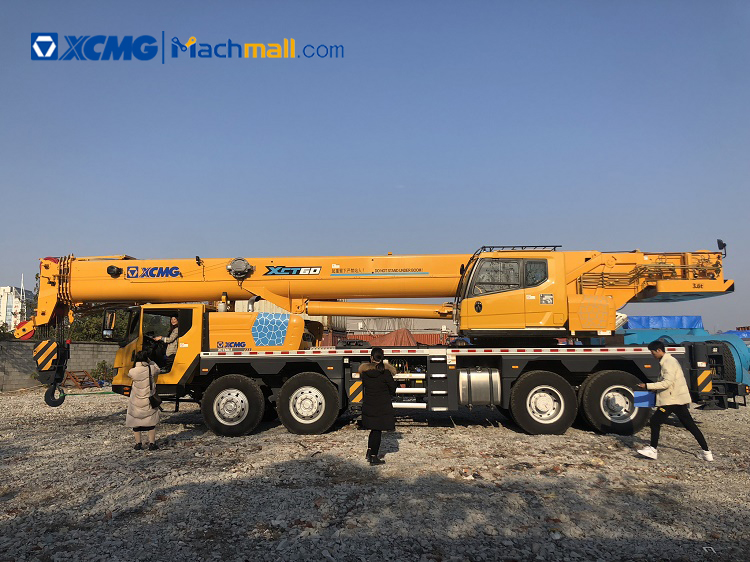

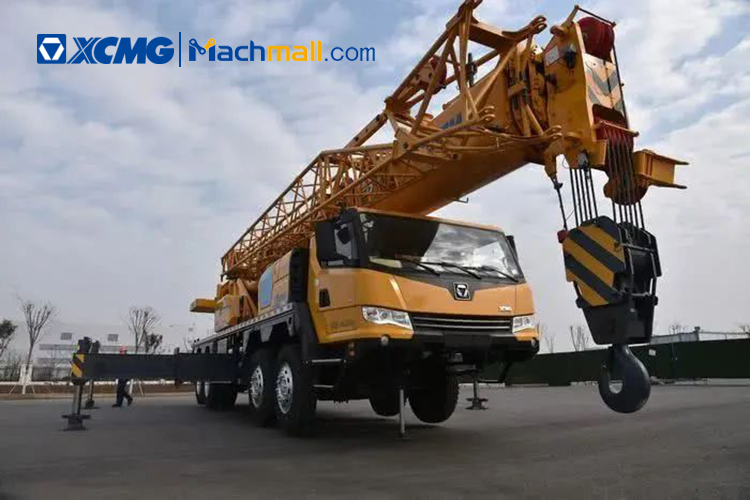

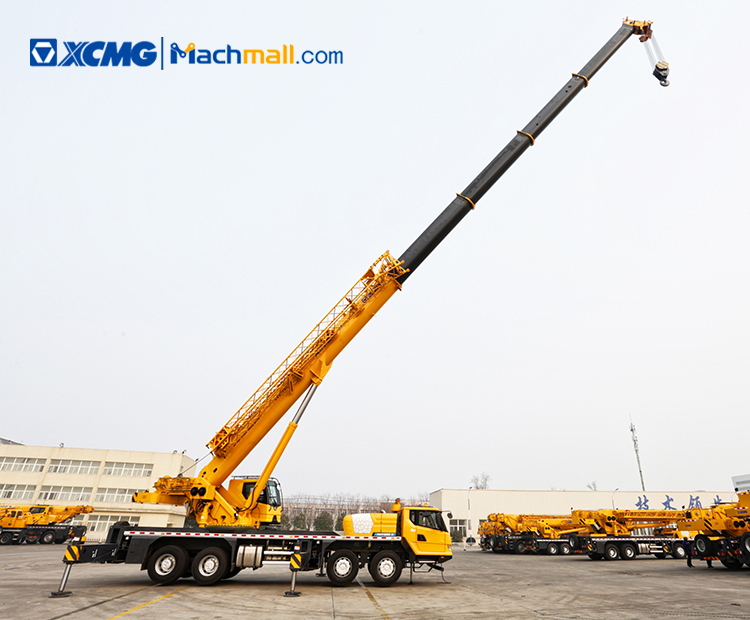

XCMG factory 60 ton telescopic truck crane XCT60_Y.

（1）XCT60_Y Truck crane is widely used for the lifting operations in general engineering projects, such as construction sites, urban renewal, communication and transportation, ports, bridges, and complex working environments.

（2）The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 45℃. The whole vehicle is also waterproof and corrosion resistant. The reliability and service life of parts are greatly improved.

（3）Abundant configurations of operating methods (mechanical control or pilot hydraulic proportional control ) and jib types (swing-away jib or  under slung jib) can meet the requirements of different customers.

（4）Dual-pump confluence technology is applied to the crane movements, such as hook up / hook down, boom out, as well as boom up, so that the working efficiency of elevating and telescoping operation gets ahead of all competing cranes.

（5）Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity.

（6）The elevating balance valve with load compensation function.

（7）5-section boom of 44 m with U-type profile; the max. parts of line is 13 for the main hook block. The performance is 5% higher than that of the competitors. The telescoping mode is updated from sequential telescoping to random telescoping. The change of boom length is more efficient, and the performance of medium-long boom is higher.

（8）Diesel engine, with rated power of 275kW, and max. torque of 1800N.m

（9）Max. travel speed 90Km/h; max. grade ability 38%

（10）Parking brake: spring energy brake, acting on wheels of 2,3,4 axles

（11） Slewing speed 0-2r/min

（12）Max. single line pull 45KN

（13）Max. hoisting 128m/min

（14）Waterproof connectors, with rubber sleeve, protection level IP67.
