Summary
- Rated Speed:2000rpm
- Maximum Digging Depth:6972mm
- Maximum Digging Height:10074mm
- Bucket capacity:1.4m³
- Operating Weight:33800kg
- Model Number:XE335C
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:33800.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

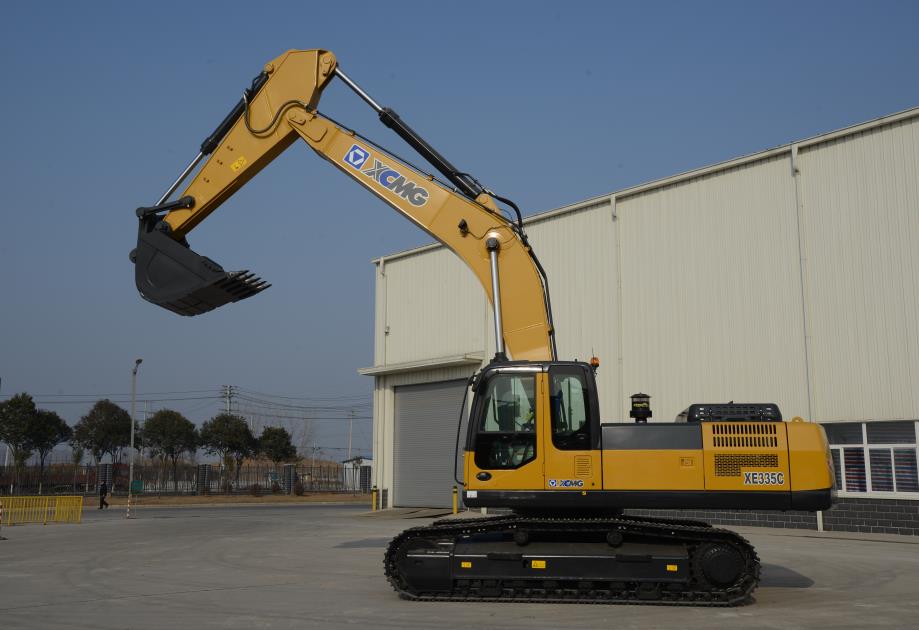

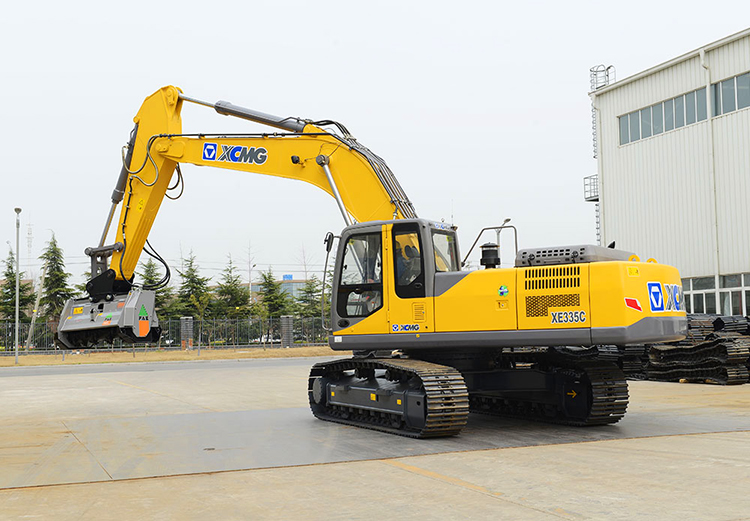

33 Ton XCMG Official crawler excavator XE335C.
XCMG crawler excavator XE335C as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, tunnels and other harsh construction environment.
1. Ecological and economical
* ISUZU engine with low fuel consumption, low noise and low emission can provide strong power.
* Negative flow control system maximizes work efficiency.
* Smart electronic control system can achieve the balance of power and hydraulic load.
2. Multiple applications
* Different boom and bucket combinations maximize utilization of different conditions.
* Multi-functional machine system meets various job requirements such as digging and crushing.
XE335C |
Item |
Unit |
Parameters |
Model |
Operating weight |
kg |
33800 |
Bucket capacity |
m³ |
1.4-1.6-10 |
|
Engine |
Engine model |
/ |
ISUZU AA-6HK1XQP |
Direct injection |
/ |
√ |
|
4×strokes |
/ |
√ |
|
Water cooling |
/ |
√ |
|
Turbocharging |
/ |
√ |
|
A/A intercool |
/ |
√ |
|
Cylinders |
/ |
6 |
|
Output power of engine |
Kw/rpm |
190.5/2000 |
|
Max.torque/engine |
N.m/rpm |
872.8/1700 |
|
Displacement |
L |
7.79 |
|
Mian pertormance |
Travel speed |
km/h |
5.5/3.3 |
Slewing speed |
r/min |
9.7 |
|
Gradient capability |
° |
≤35° |
|
Ground pressure |
kPa |
66 |
|
Digging capacity of tcuket |
kN |
263 |
|
Digging capacity of tcuket rod |
kN |
225 |
|
Max.traction |
kN |
261 |
|
Working scope |
A Max.digging height |
mm |
10074 |
B Max.unloading height |
mm |
6898 |
|
C Max.digging depth |
mm |
6972 |
|
D Digging depth at the range of 8feets horizontally |
mm |
6728 |
|
E Max.vertical digging depth |
mm |
5366 |
|
F Max.digging radius |
mm |
10650 |
|
G Max.swing height |
mm |
4424 |
|
Standard configuration |
Boom length |
mm |
6400 |
Length of bucket rod |
mm |
2670 |
|
Bucket capacity |
m³ |
1.4 |
|
Optional counfiguration |
Length of bucket rod |
mm |
2900/3200/4000 |
Bucket capacity |
m³ |
1.6 |
