50 ton XCMG manufacturer XE500HB crawler excavator price
Summary
- Max Digging Radius:10855mm
- Maximum Digging Depth:7000mm
- Maximum Digging Height:9855mm
- Bucket capacity:3.1m³
- Operating Weight:48500Kg
- Model Number:XE500HB
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:48500.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

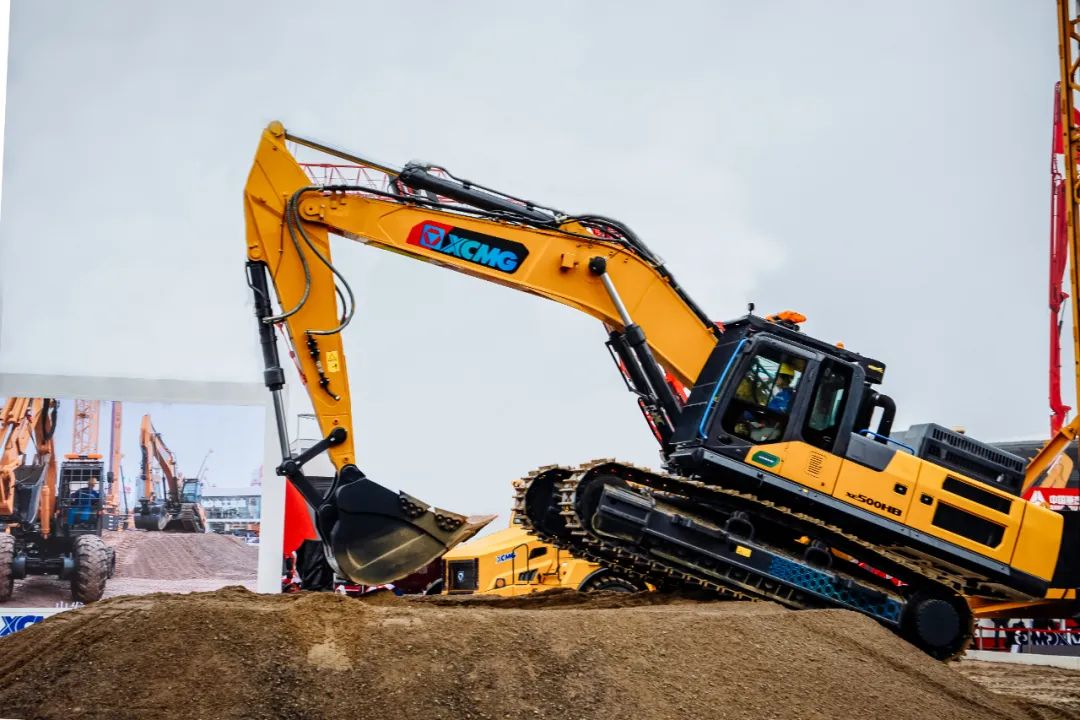

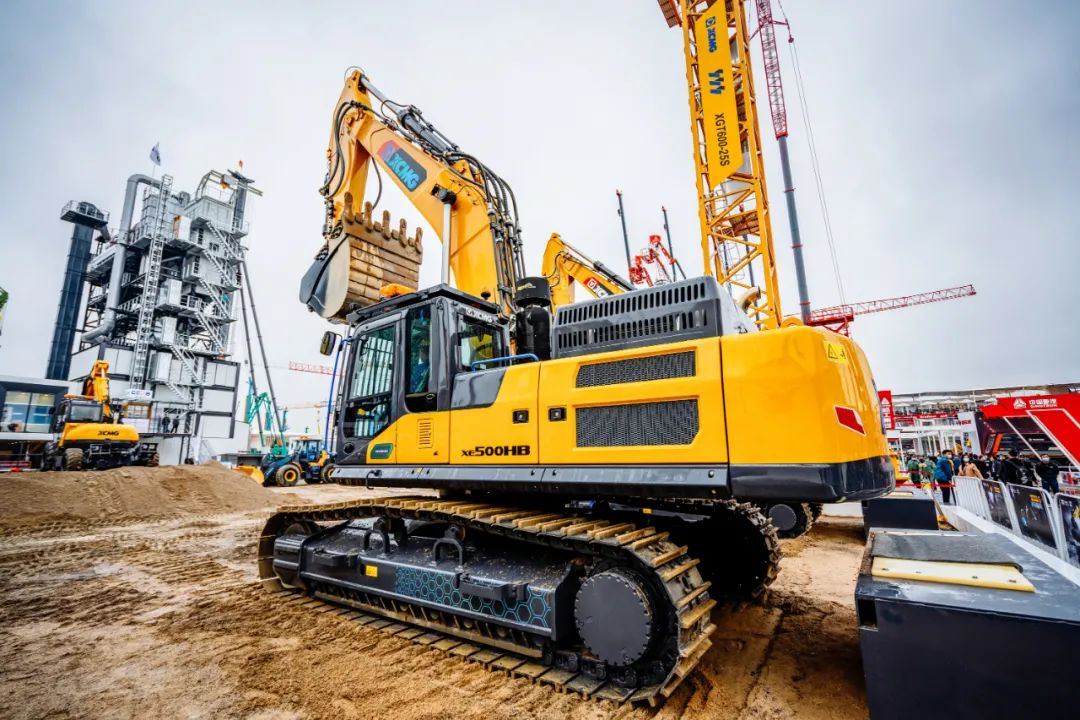

50 ton XCMG manufacturer XE500HB crawler excavator.
1.Products with the same tonnage have the highest energy efficiency ratio, the industry's first adaptive boom potential energy recovery and undisturbed utilization technology, and fuel consumption is reduced by more than 15% compared with products of the same tonnage;
2.XCMG XE500HB crawler excavator has the highest structural strength. In view of the heavy load conditions of the mine, the key parts adopt large castings and local variable cross-section structures. The bending and torsion resistance of the box section are increased by more than 30%, and the service life of the structural parts is greatly improved;
3.Original dual-system automatic switching technology, using the critical state fuzzy control method to realize the automatic switching between the energy recovery and reuse system and the original working system to ensure the operation requirements under different working conditions;
4.The self-developed energy recovery system components have passed the bench test verification, in which the motor has undergone more than 2 million durability tests, with long service life, reliability and durability;
5.The energy storage system adopts automatic pressure relief function, and the gas circuit adopts a double ball valve cut-off device, which can manually cut off the pressure of the accumulator according to the maintenance requirements, making the maintenance safer.
|
Sales model |
Unit |
XE500HB |
|
|
Operating weight |
Kg |
48500 |
|
|
Bucket capacity |
m³ |
2.3-3.1 |
|
|
Engine |
Model |
/ |
QSM11 |
|
No. of cylinders |
/ |
6 |
|
|
Output power |
kw/rpm |
280/2000 |
|
|
Maximum torque/speed |
N.m/rpm |
1898/1300 |
|
|
Displacement |
L |
11 |
|
|
Main performance |
Travel speed |
km/h |
5.4/3.2 |
|
Swing speed |
r/min |
9.2 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
85 |
|
|
Bucket digging force |
kN |
301 |
|
|
Arm digging force |
kN |
248 |
|
|
Maximum traction |
kN |
338 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×360 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Rotary system pressure |
MPa |
31 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
725 |
|
Hydraulic tank capacity |
L |
430 |
|
|
Engine oil capacity |
L |
38 |
|
|
Appearance size |
A Overall length |
mm |
11805 |
|
B Overall width |
mm |
3572 |
|
|
C Overall height |
mm |
3890 |
|
|
D Width of platform |
mm |
3095 |
|
|
E Track length |
mm |
5470 |
|
|
F Overall width of chassis |
mm |
3572 |
|
|
G Track width |
mm |
600 |
|
|
H Length to center of rollers |
mm |
4407 |
|
|
I Track gauge |
mm |
2740 |
|
|
J Counterweight clearance |
mm |
1335 |
|
|
K Min. ground clearance |
mm |
518 |
|
|
L Min. tail swing radius |
mm |
3800 |
|
|
M Track height |
mm |
1225 |
|
|
Working scope |
A Max. digging height |
mm |
9855 |
|
B Max. dumping height |
mm |
6890 |
|
|
C Max. digging depth |
mm |
7000 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6900 |
|
|
E Max. vertical wall digging depth |
mm |
4500 |
|
|
F Max. digging radius |
mm |
10855 |
|
|
G Min. swing radius |
mm |
4580 |
|
|
Standard configuration |
Length of boom |
mm |
6670 |
|
Length of arm |
mm |
2900 |
|
|
Bucket capacity |
m³ |
2.6 |
|
|
Optional configuration |
Length of boom |
m³ |
7060 |
|
Length of arm |
m³ |
3380/2600/2400 |
|
|
Bucket capacity |
m³ |
2.3、2.5、3.1 |
|
