Summary
- Model Number:QY25K5-II
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:47m
- Max. Lifting Load:25 ton
Specifications
- Weight:32865.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

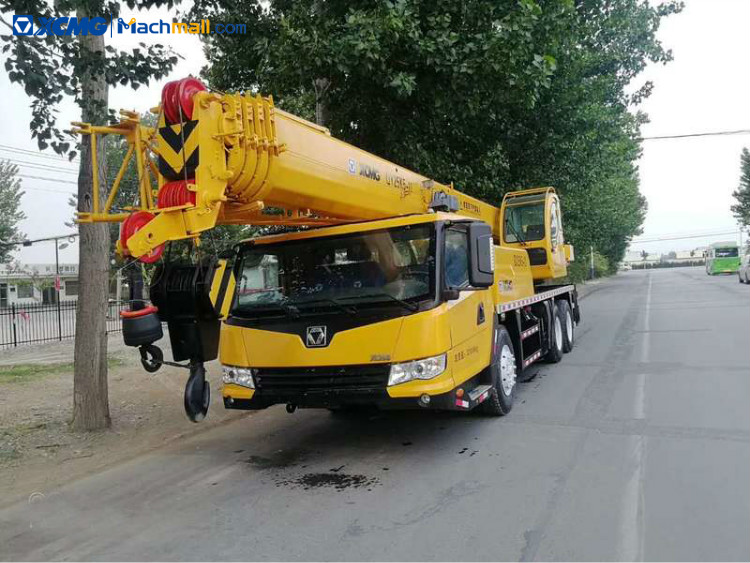

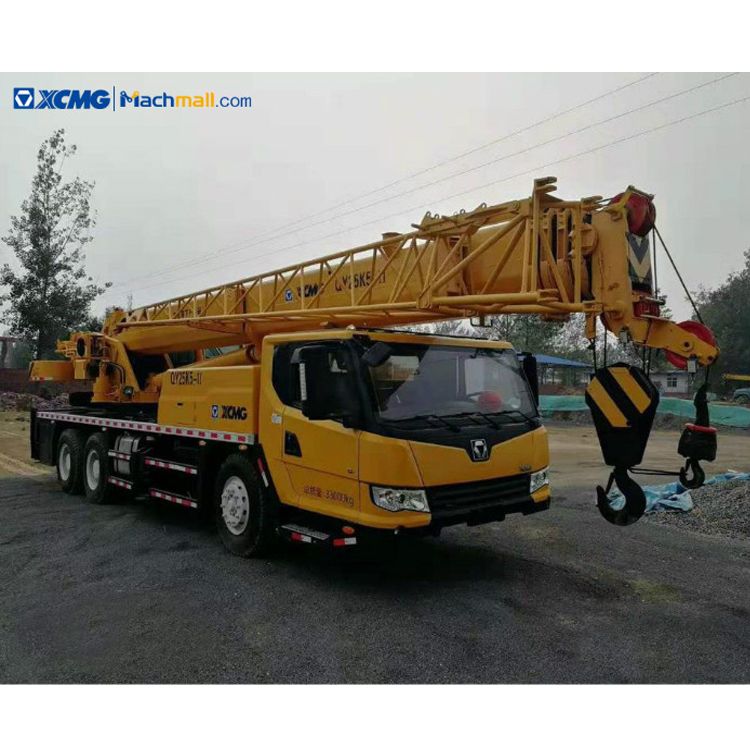

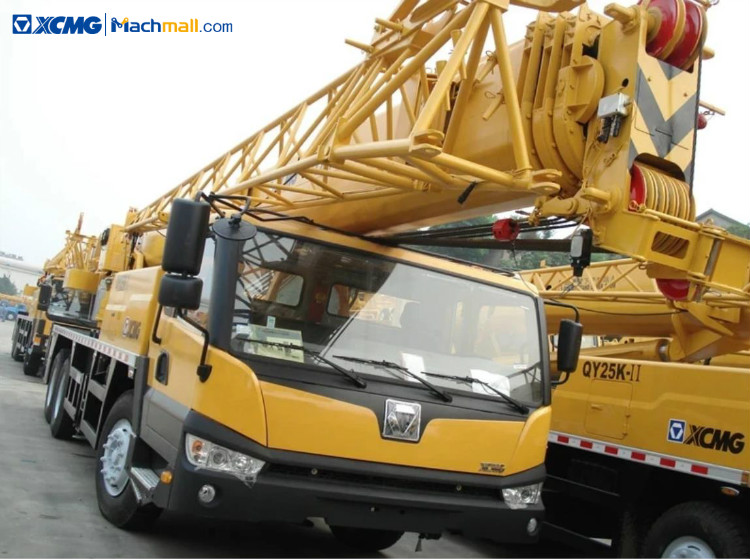

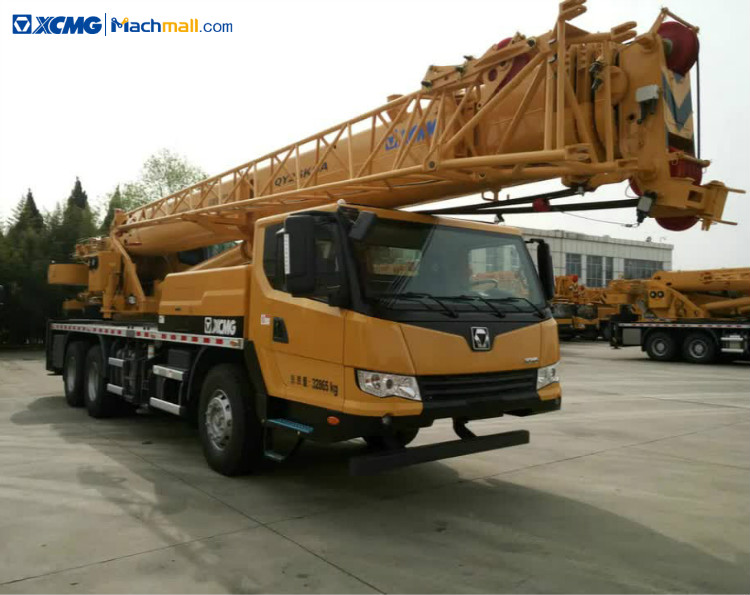

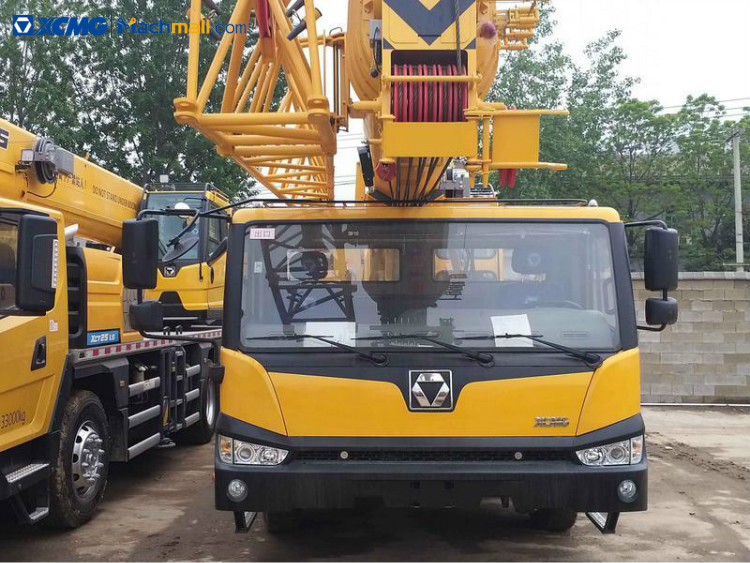

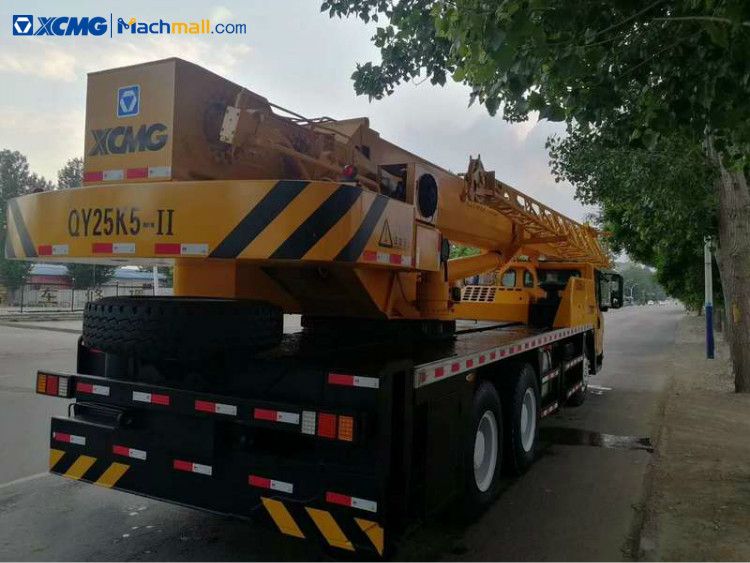

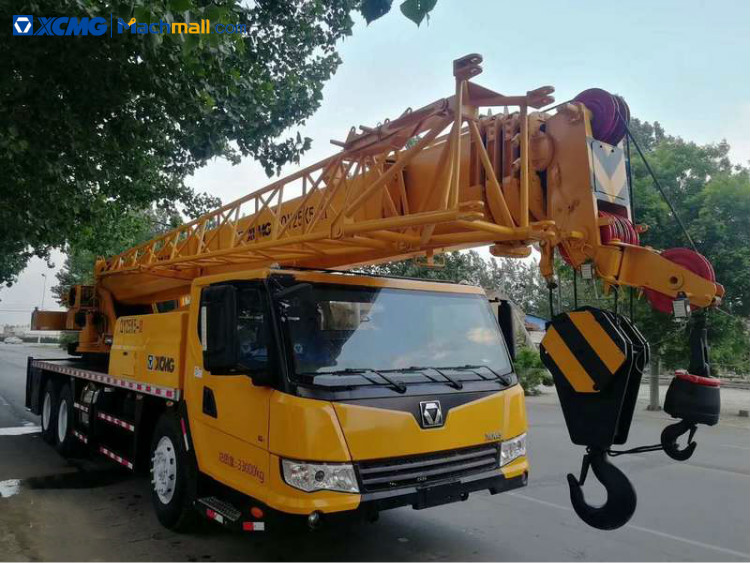

XCMG crane 25 tons 5 section boom 47m QY25K5-II.
XCMG crane 25 tons 47m 5 section boom QY25K5-II is the product with high reliability inheriting classical and advanced technology aboutdesign and manufacture truck crane of many years and based on mature technology.
Truck crane QY25k5-II theoperations of craneare very simple,convenient and flexible. Truck crane QY25k5-II is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
QY25k5-II crane performance characteristics:
1. Truck crane QY25k5-II adopts U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.

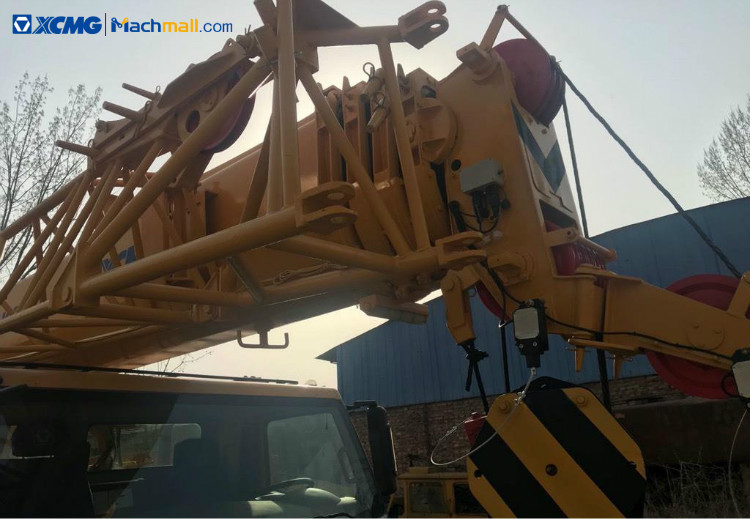

2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.
3. Truck crane QY25k5-II embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
4. Truck crane QY25k5-II with 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.
5.Meets the requirements of speed and reduces the energy consumption and system heat effectively.
|
Category |
Item |
Unit |
Parameter |
|
Outline Dimensions |
Overall length |
mm |
12680 |
|
|
Overall width |
mm |
2500 |
|
|
Overall height |
mm |
3400 |
|
|
Axle base |
mm |
4425+1350 |
|
|
Wheel base |
mm |
2074/1834/1834 |
|
Weight |
Total vehicle mass in travel configuration |
kg |
32865 |
|
Power |
Model |
|
SC9DF290Q3 |
|
|
Rated power |
kw/(r/min) |
213/2200 |
|
|
Rated torque |
N.m/(r/min) |
1200/1400 |
|
Travel Performance |
Max. travel speed |
km/h |
90 |
|
|
Min. turning diameter |
m |
22 |
|
|
Min. ground clearance |
mm |
275 |
|
|
Approach angle |
° |
11 |
|
|
Departure angle |
° |
12 |
|
|
Braking distance(at 30 km/h) |
m |
≤10 |
|
|
Max. grade ability |
% |
41 |
|
|
Oil consumption per 100km |
L |
≤32 |
|
Noise |
Exterior noise level in accelerating |
dB(A) |
88 |
|
|
Noise Level at seated position |
dB(A) |
90 |
