Summary
- Model Number:QY25K5-I
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:42.15m
- Max. Lifting Load:25 ton
Specifications
- Weight:31750.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

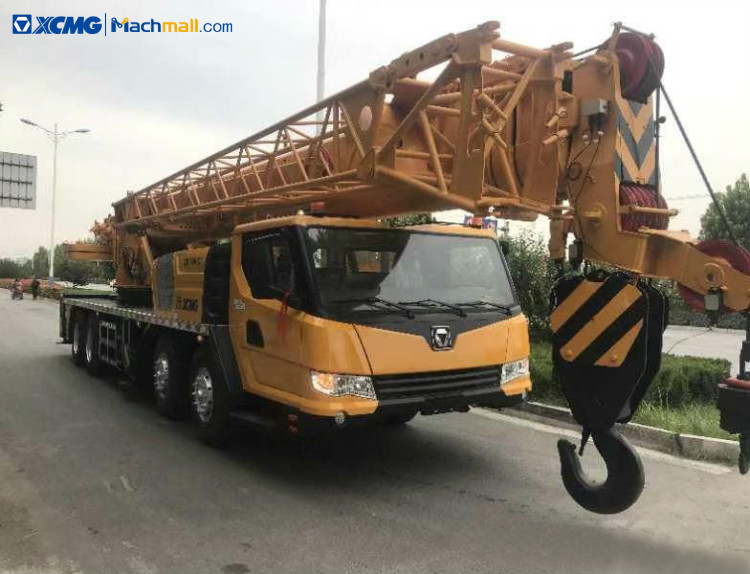

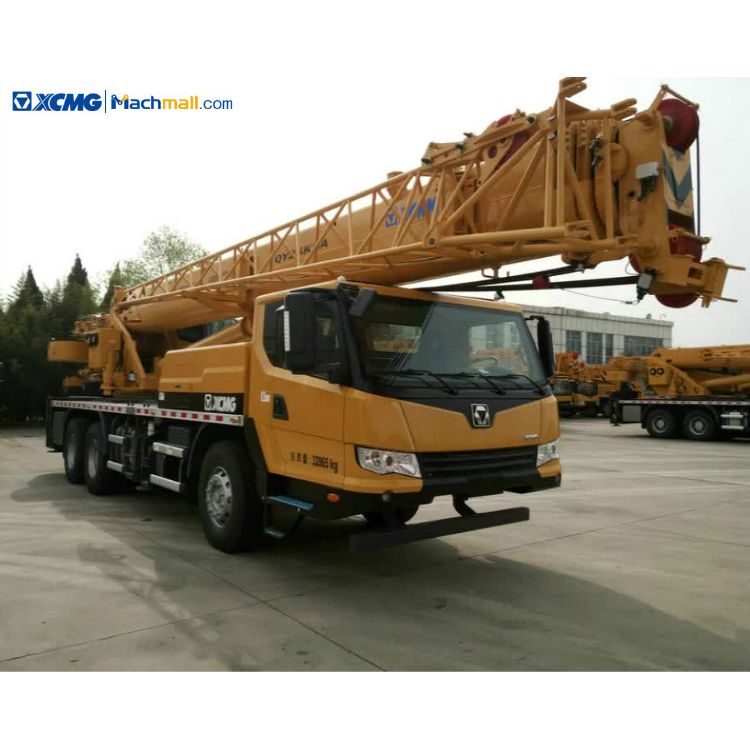

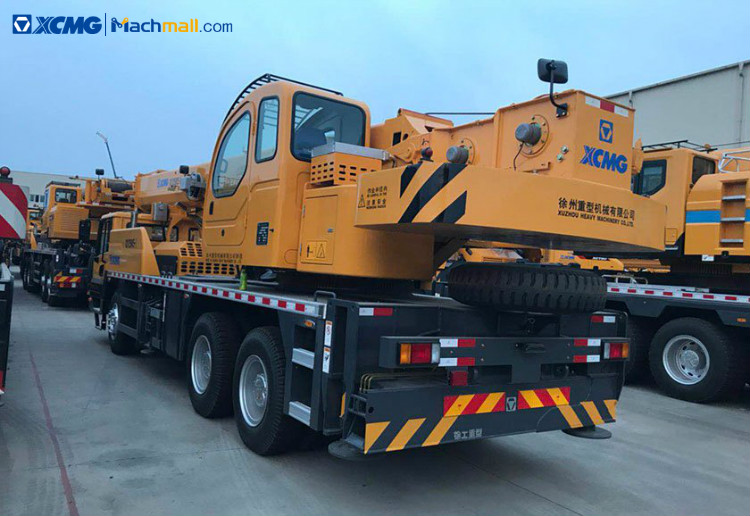

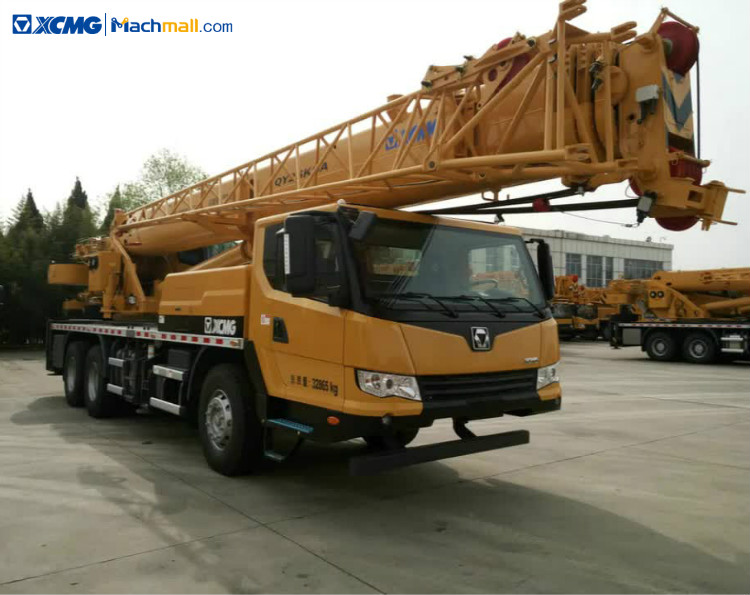

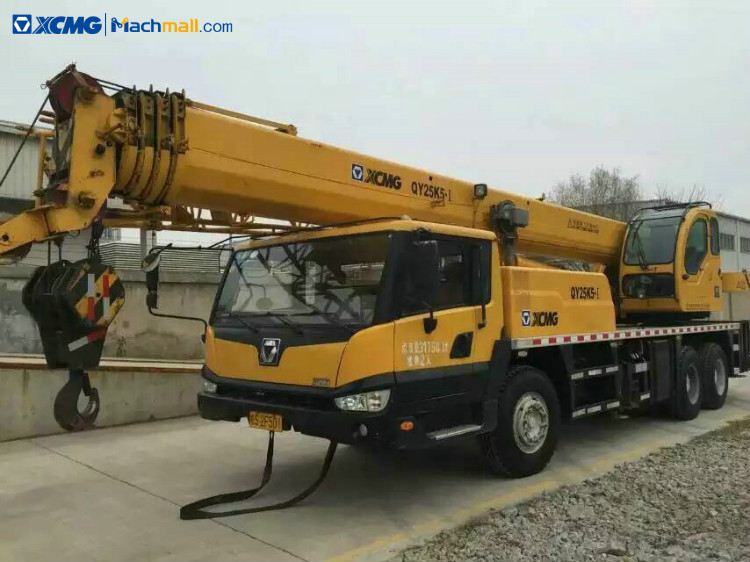

XCMG 25 tone crane QY25K5-I.
The operations of XCMG 25 tone crane QY25K5-I are very simple, convenient and flexible. It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
* Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
* The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
* The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
* The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
* Six unique technologies supply the quality assurance, and make the products keep a high value.
* The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
* The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
* Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
|
Description |
|
Unit |
Parameter value |
|
Overall length |
|
mm |
12300 |
|
Overall width |
|
mm |
2500 |
|
Overall Height |
|
mm |
3350 |
|
Wheel Base |
|
mm |
4425+1350 |
|
Track |
|
mm |
2074/1834/1834 |
|
Total vehicle mass in travel configuration |
|
kg |
31750 |
|
Axle load |
Front axle |
kg |
6550 |
|
|
Rear axle |
|
25200 |
|
Engine Model |
|
/ |
SC8DK280Q3 |
|
Engine rated power |
|
kw/(r/min) |
206/2200 |
|
Engine rated torque |
|
N.m/(r/min) |
1112/1400 |
|
Max. travel speed |
|
km/h |
80 |
|
Min. turning diameter |
|
m |
22 |
|
Min. ground clearance |
|
mm |
275 |
|
Max. grade ability |
|
% |
40 |
|
Approach angle |
|
° |
16 |
|
Departure angle |
|
° |
13 |
|
Braking distance (at 30 km/h, full load ) |
|
m |
≤10 |
|
Oil consumption per 100km |
|
L |
≤37 |
|
Exterior noise level during acceleration traveling |
|
dB (A) |
88 |
|
Noise level at seated position |
|
dB (A) |
90 |
