Summary
- Certification: CE/ISO9001
- Dimension(L*W*H):6115*2100*2810mm
- Weight: 7000kg
- Power(W):118kw
- Model Number:HBT6013K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Power Type: Diesel
Specifications
- weight:7000.000kg
- Condition:New
- Moving Type:Other
- Productivity: 40M3/H
- Engine: Weichai
- Max. output pressure:13Mpa
- Pressure of hydraulic system:32Mpa
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

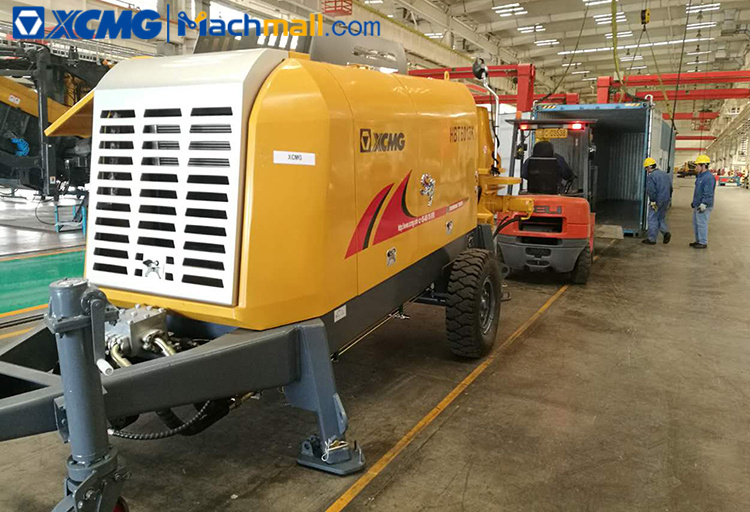

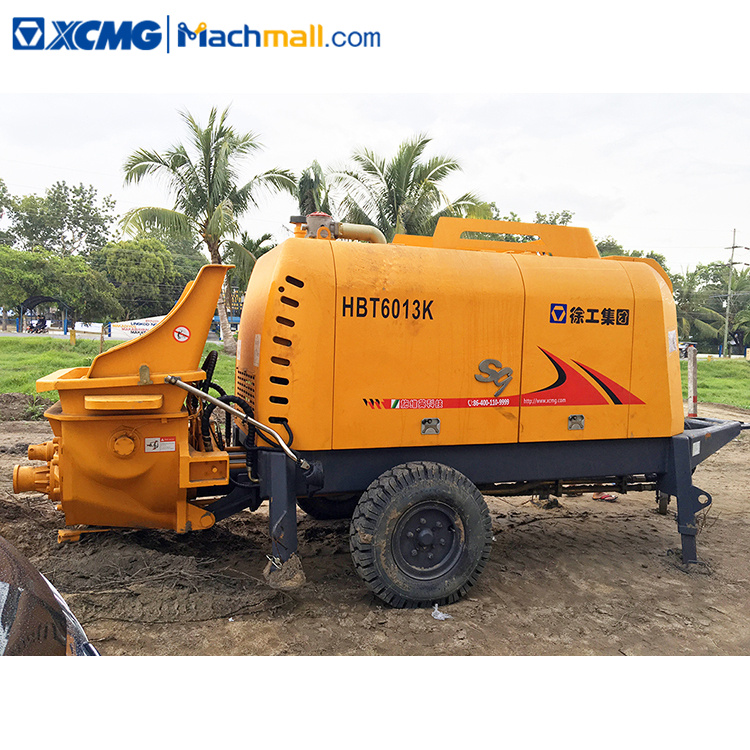

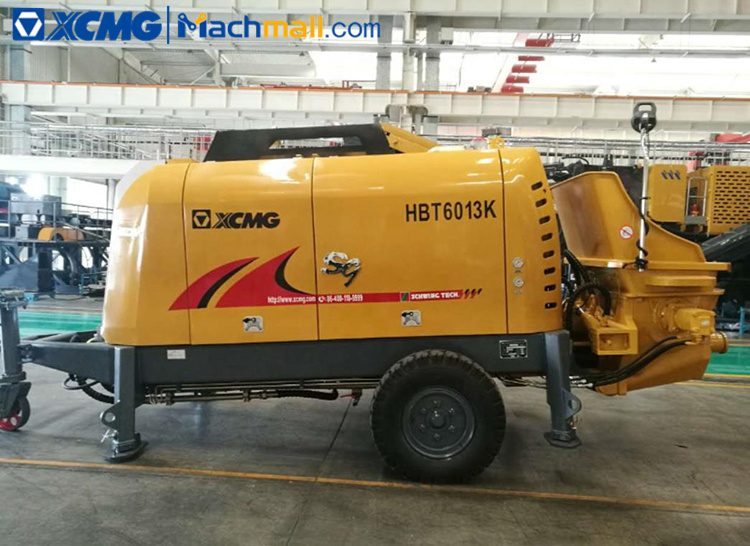

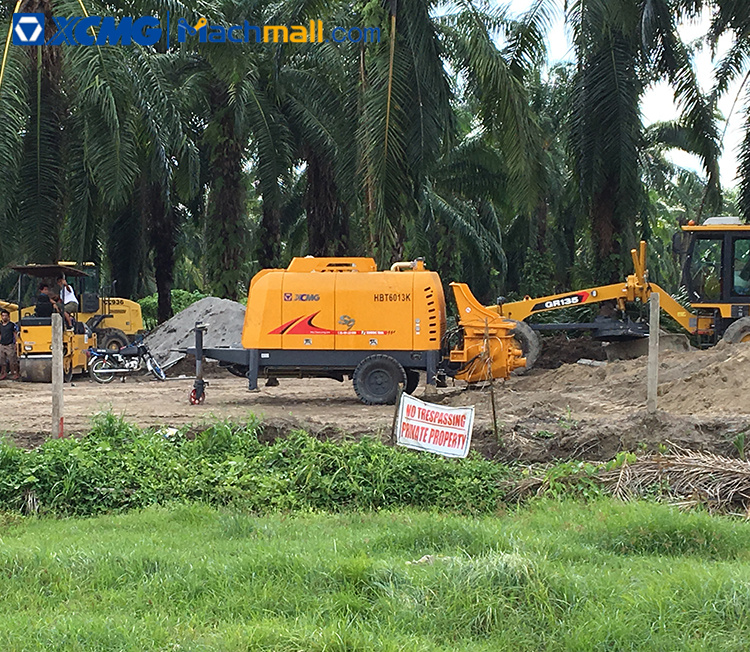

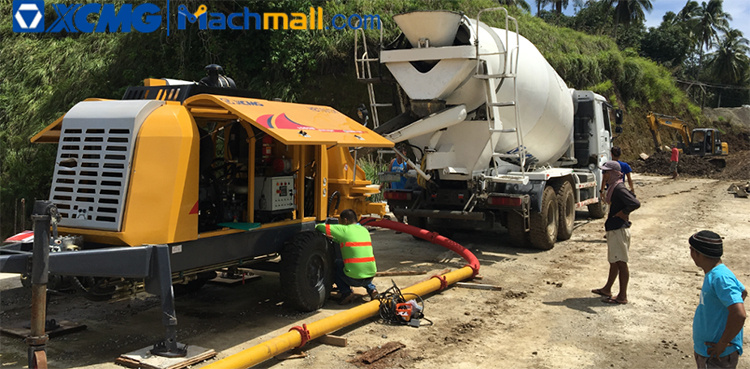

XCMG Official concrete pump trailer HBT6013K 40M3/H Productivity.
XCMG Official concrete pump trailer HBT6013K can monitor and store equipment’s running state in real time, realize production reappearance and timely remind the equipment of operation and maintenance.
Independently controlled electrical lubrication technology can realize grease supply intermittently during pumping and save grease consumption by 50% on the basis of ensuring lubrication effect.
Advantage:
1.automatic compensation of wear ring.
2.hydraulic system's air suction production.
Description |
|
Unit |
|
Parameter value |
Construction requirements |
|
|||
Overall performance
|
Overall dimensions |
mm |
6115×2100×2810 |
|
Total curb mass |
kg |
7000 |
||
Concrete delivery value |
m3/h |
65/40 |
||
Max. output pressure |
Mpa |
13 |
||
Pulling speed |
km/h |
Three-level road 8km/h |
||
|
|
Road above two-level16km/h |
||
Delivery distance(vertical/horizontal) |
m |
150/600 |
||
Hopper capacity/filling height |
m3/mm |
0.6/1370 |
||
Concrete slump range |
mm |
80-230 |
||
Concrete delivery cylinder diameter/stroke |
mm |
200/1400 |
||
Basic configuration |
|
|||
Power system
|
Main motor (diesel engine)
|
Model |
|
WP4G160E331 |
Rated power |
kw |
118 |
||
Rated rev |
r/min |
2200 |
||
Manufacturer |
|
WEICHAI |
||
Hydraulic system
|
Type |
|
|
Open type |
Pressure of hydraulic system |
Mpa |
|
32 |
|
Main oil pump
|
Model and type |
|
A11VLO130 |
|
Rated working flow |
L/min |
260 |
||
Manufacturer |
|
Rexroth |
||
Pumping oil cylinder diameter /stroke |
mm |
|
125/1400 |
|
Capacity of hydraulic oil tank |
L |
|
600 |
|
Mixing system |
|
Large torque at low speed |
||
Lubrication system |
|
Energy-saving type automatic centralized lubrication |
||
Cooling system |
|
Air cooling |
