Summary
- Dimension(L*W*H):12600×2530×4000mm
- Weight:35000kg
- Power(W):315000W
- Model Number:HB50V
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:35000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

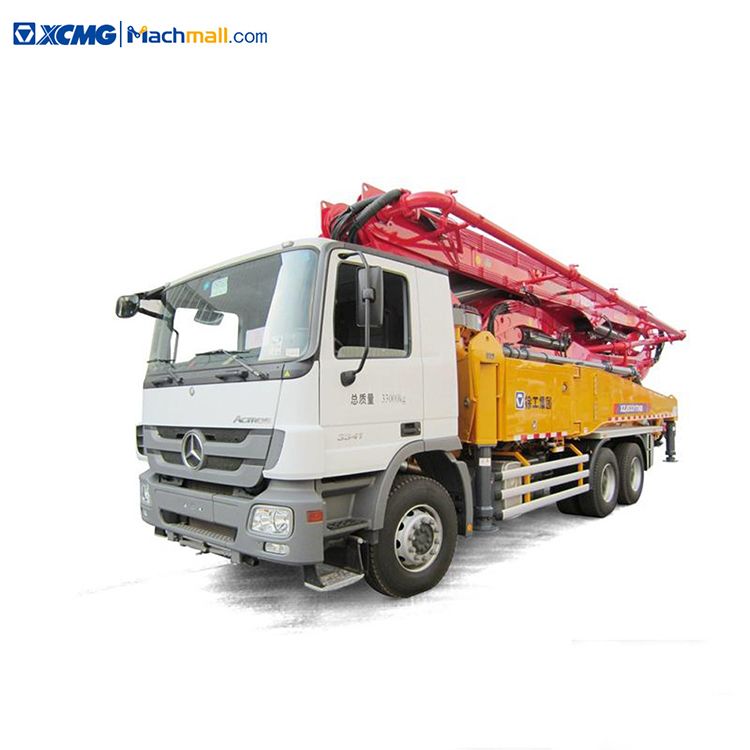

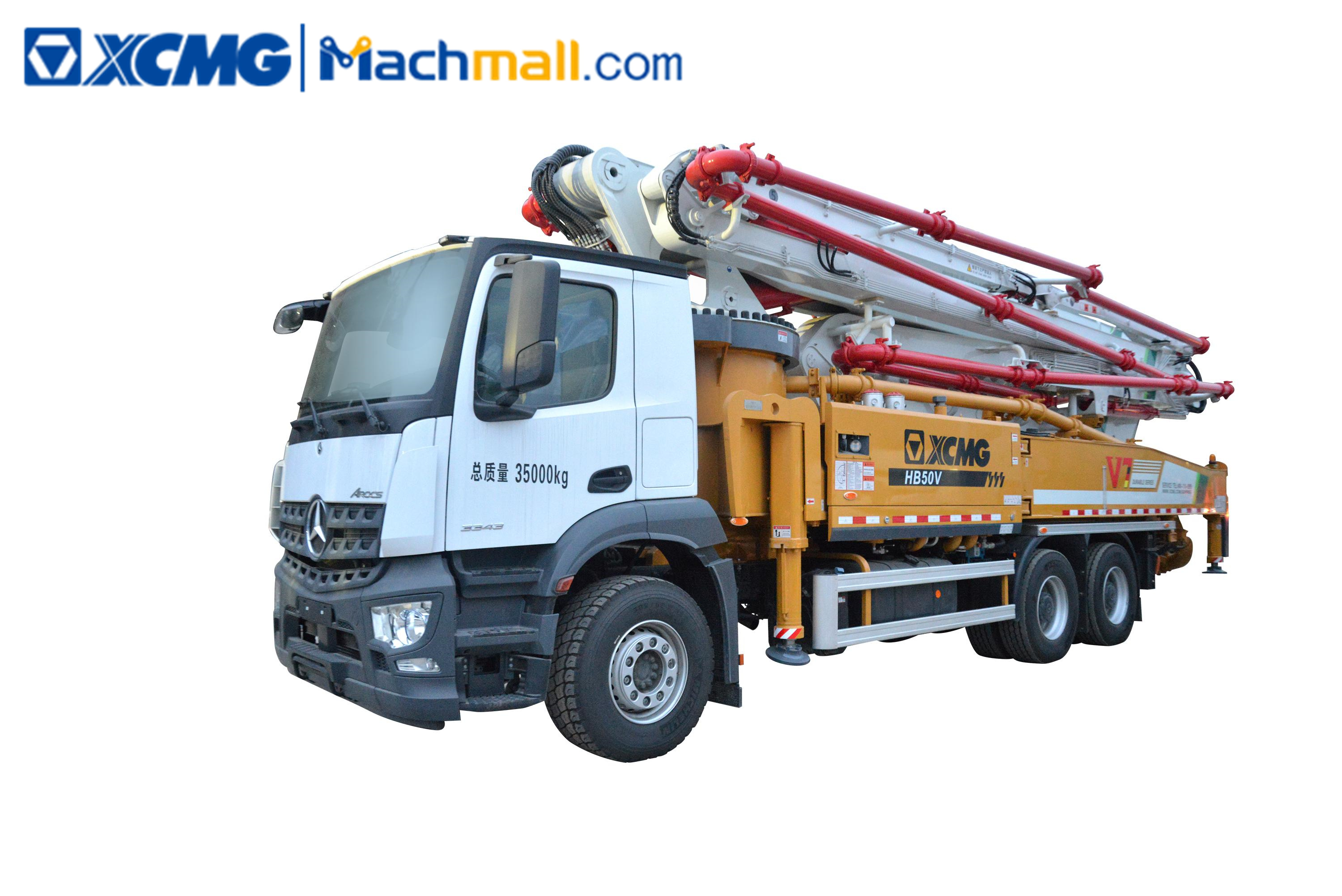

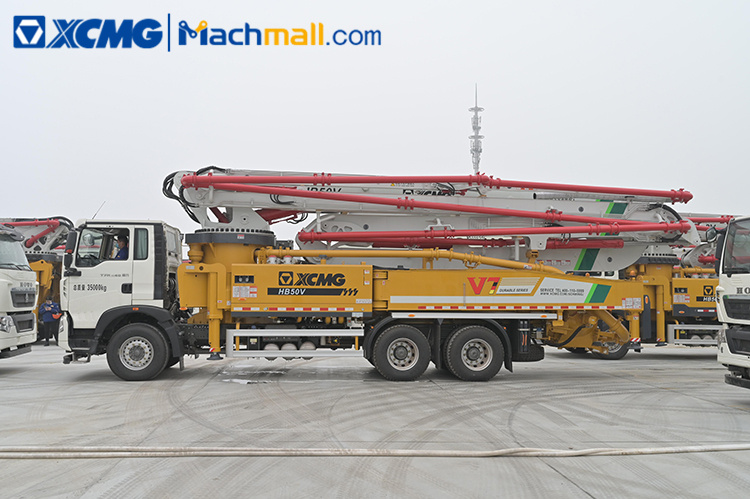

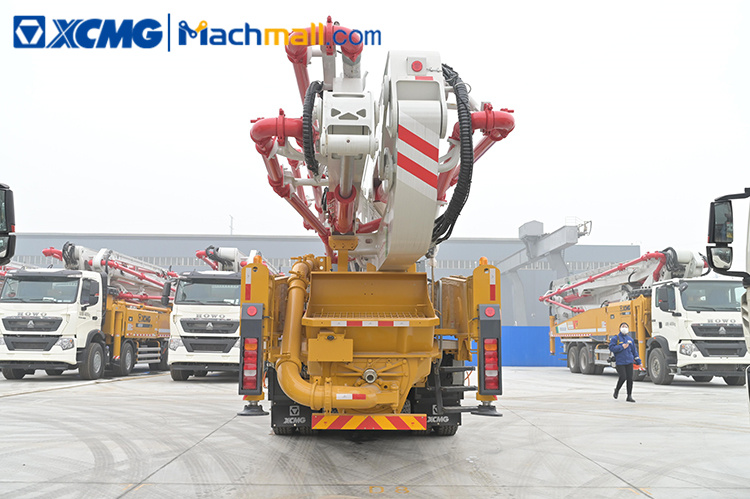

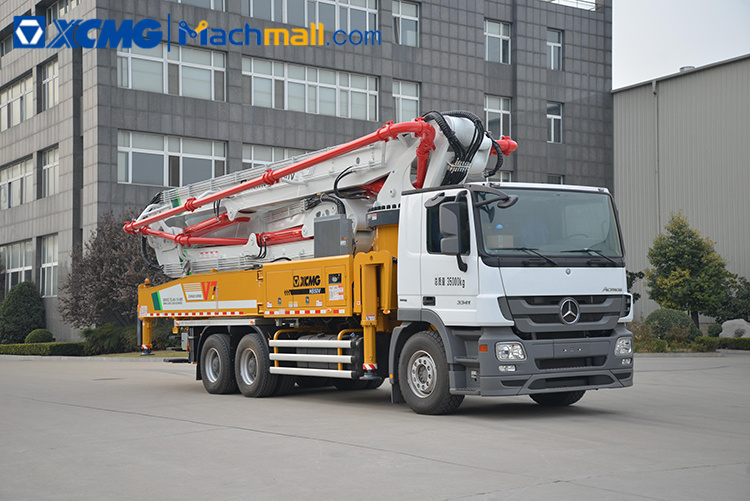

HB50V XCMG 50 meters china concrete pump with Benz chassis.
HB50V XCMG 50 meters china concrete pump with Benz chassis is equipped with Benz chassis, has specialty and acme originates from the top-level technology of SCHWING Germany.
HB50V XCMG 50 meters china concrete pump with Benz chassis is made by implementing the high standard of German-made realizes highly reliable and durable products.
Advantages and highlights:
1.All-around technical methods are used to make boom safer and more reliable.
2.A new generation of micro-control technology is used to make boom operation steadier and more accurate.

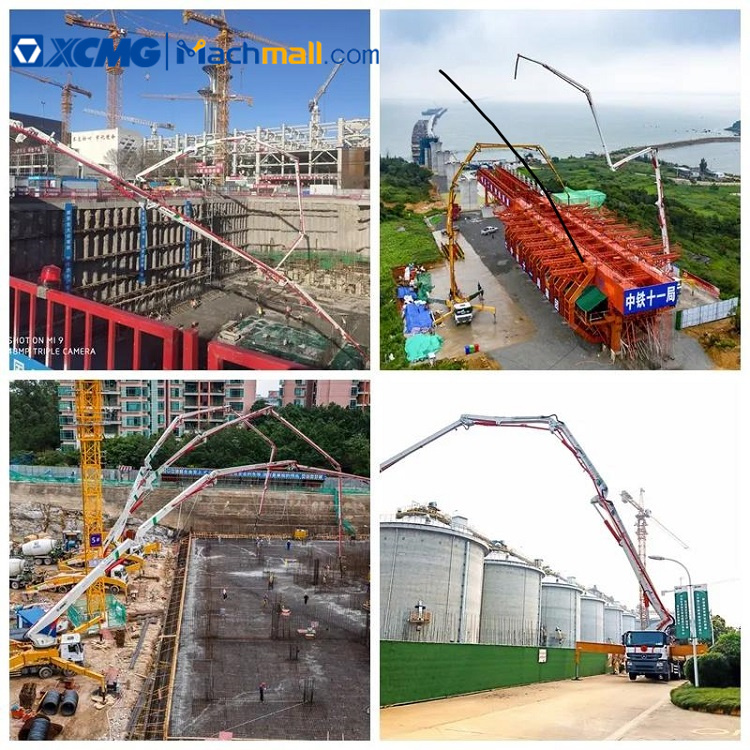

3.The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.
|
Category |
Item |
Unit |
HB50V |
|
Overall |
Outline dimension |
mm |
12600×2530×4000 |
|
|
Overall weight |
kg |
35000 |
|
|
Brand |
/ |
Benz |
|
Chassis |
Model |
/ |
AROCS3343 |
|
|
Wheelbase |
mm |
4800+1350 |
|
|
Max.power |
kW |
315 |
|
Engine |
Emission |
/ |
China V |
|
|
Theoretical |
m³/h |
170 |
|
Pumping system |
Concrete pumping pressure |
Mpa |
8 |
|
|
Theoretical pumping times |
Times/min |
23～26 |
|
|
Delivery cylinder diameter × stroke |
mm |
φ260×2000 |
|
Placing boom |
Reach height |
m |
49.1 |
|
|
Reach depth |
m |
34.4 |
|
|
Slewing radius |
m |
44.2 |
|
|
Slewing angle |
° |
±270 |
|
Others |
Transfer tuble |
/ |
Rock valve/S valve |
