Summary
- Rated Speed:2000rpm
- Max Digging Radius:10855mm
- Maximum Digging Depth:7000mm
- Maximum Digging Height:9855mm
- Bucket capacity:2.2~2.5m³
- Operating Weight:46900kg
- Model Number:XE470D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:46900.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

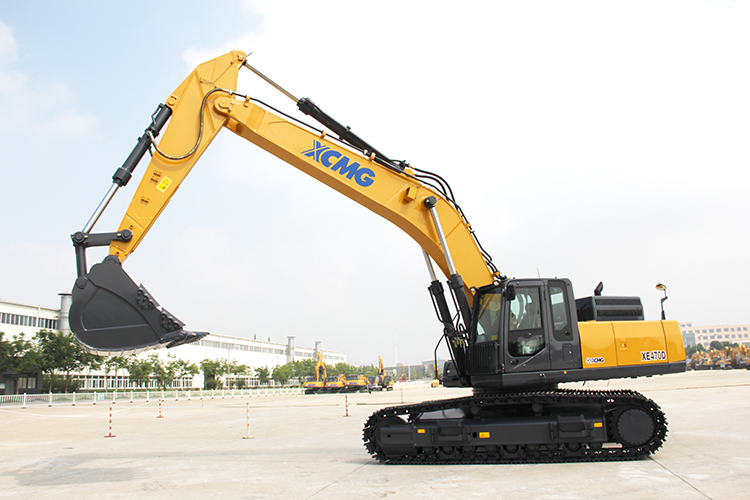

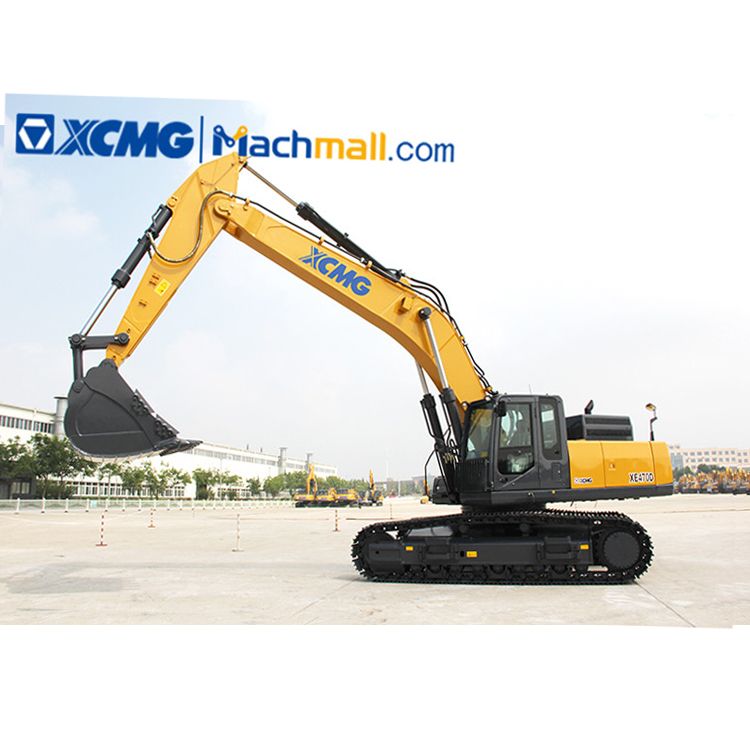

47 ton XCMG XE470D big crawler excavator machinery.
XCMG XE470D big crawler excavator is one of the leading models of large excavators launched by XCMG excavator department. XCMG XE470D big crawler excavator integrates the valuable experience gained by XCMG from years of research and development of excavator products, and adopts advanced design and manufacturing methods. Meanwhile, XCMG XE470D big crawler excavator adheres to the design concept of "high efficiency, high safety, low carbon and environmental protection", and has perfect mine operation ability.
1. Ecological and economical
* Professional customized engine greatly improves fuel economy.
* Hydraulic oil flow regeneration system ensures optimum machine performance.
* Independent cooling system automatically adjusts fan speed.
2. Multiple applications
* Different boom, arm and bucket combinations can adapt to as many working conditions as possible.
* Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismanting.
* Instantaneous pressurization function copes with complex working conditions.
3.Comfortable operating experience
* Air Conditioner and Heator ensure the appropriate temperature.
* Silicone rubber shock absorber is adopted in the cab.
* Air-suspending seat equipped with electric heating function.
* Integrated control panel and large display screen provide multiple information.
* ROPS and FOPS Cab can improve cab safety..
|
Model |
Unit |
XE470D |
|
|
Operating weight |
Kg |
46900 |
|
|
Bucket capacity |
m³ |
2.2-2.5 |
|
|
Engine |
Model engine |
/ |
QSM11-335 |
|
Injection |
/ |
√ |
|
|
Four strokes |
/ |
√ |
|
|
Water cooling |
/ |
√ |
|
|
Turbo-charging |
/ |
√ |
|
|
No. of cylinders |
/ |
6 |
|
|
Rated power/speed |
kw/rpm |
274/1800 |
|
|
Maximum torque/speed |
N.m/rpm |
1790/1400 |
|
|
Displacement |
L |
11 |
|
|
Main performance |
Travel speed |
km/h |
5.4/3.2 |
|
Swing speed |
r/min |
9 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
83 |
|
|
Bucket digging force |
kN |
287 |
|
|
Arm digging force |
kN |
221 |
|
|
Maximum tractive force |
kN |
338 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×360 |
|
Travel system pressure |
MPa |
34.3 |
|
|
Swing system pressure |
MPa |
28.4 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
725 |
|
Hydraulic tank capacity |
L |
430 |
|
|
Engine oil capacity |
L |
38 |
|
|
Appearance size |
Overall length |
mm |
11670 |
|
Overall width |
mm |
3582 |
|
|
Overall height |
mm |
3890 |
|
|
Width of platform |
mm |
2995 |
|
|
Total width of chassis |
mm |
3582 |
|
|
Track shoe width |
mm |
600 |
|
|
Wheel base of crawler |
mm |
4292 |
|
|
Track gauge |
mm |
2750 |
|
|
Counterweight clearance |
mm |
1324 |
|
|
Min. ground clearance |
mm |
519 |
|
|
Working range |
Max. digging height |
mm |
9855 |
|
Max. dumping height |
mm |
6890 |
|
|
Max. digging depth |
mm |
7000 |
|
|
Max. vertical wall digging depth |
mm |
4500 |
|
|
Max. digging radius |
mm |
10855 |
|
|
Min. swing radius |
mm |
4580 |
|
|
Standard |
Length of boom |
mm |
6670 |
|
Length of arm |
mm |
2900 |
|
|
Bucket capacity |
m³ |
2.5 |
|
