Summary
- Weight:12300kg
- Overall Dimension:10040*2490*2460mm
- Table Size:2400*900mm
- Max Lifting Height:22m
- Rated Loading Capacity:300/460kg
- Power:36.8kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS22
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:12300.000kg
- Condition:New
- Moving Type:Wheel
- Min. ground clearance:230mm
- Min. turning radius:6m
- Maximum traveling speed:6.3km/h
- Wheelbase:2500mm
- Engine rated power:36.8/(2700)kW/(r/min)
- Max. gradeability:45%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

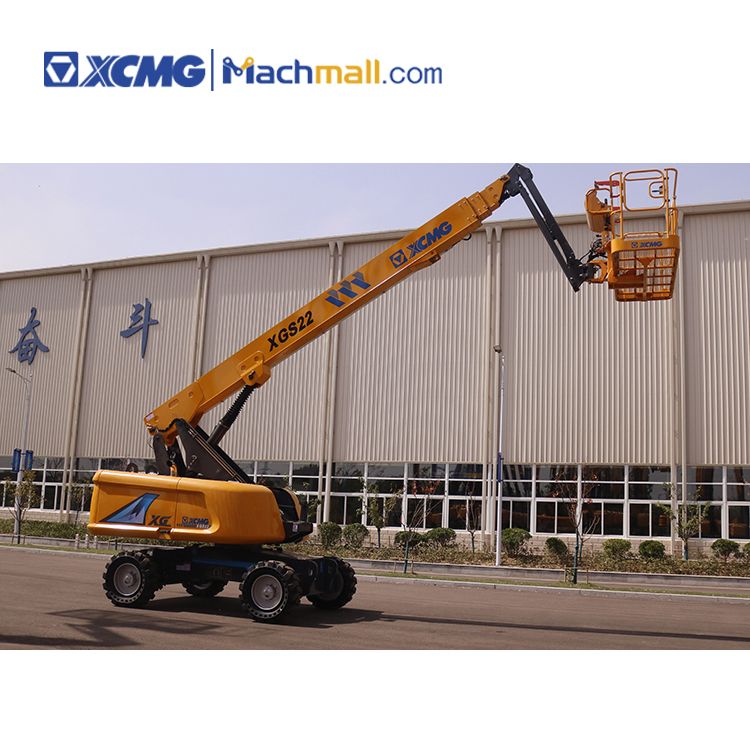

Official XCMG 22m aerial work platform XGS22.
XCMG aerial work platform XGS22 highlights with outstanding performance, efficiency, dynamics and easy operation. XCMG aerial work platform XGS22 is leading in the industry with maximum carrying capacity of 460kg, high operation height and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
1.XCMG aerial work platform XGS22 realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
2.XCMG aerial work platform XGS22 is excellent in drive and adaptability to road.
3.Making use of boom and making its work performance at leading edge.
4.XCMG aerial work platform XGS22 improves safety of extending mechanism and extends service life of steel rope.
5.Implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
|

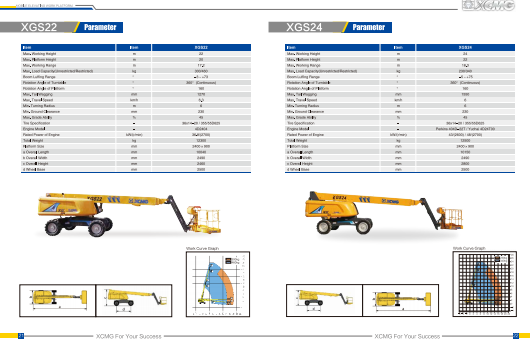

Item |
Unit |
XGS22 |
|
A whole machine length |
mm |
10040 |
|
B whole machine width |
mm |
2490 |
|
C whole machine height |
mm |
2460 |
|
D wheelbase |
mm |
2500 |
|
Max. Operation height |
m |
22 |
|
Max. Platform height |
m |
20 |
|
Max. Operation extend |
m |
16.6 |
|
Max. Load capacity |
kg |
300/460 |
|
Luffing range of boom |
° |
-3~+73 |
|
Rotation angle of turntable |
° |
360 |
|
Max. Tail swing |
mm |
1270 |
|
Platform size |
mm |
2400×900 |
|
Platform rotation angle |
° |
160 |
|
Whole machine weight |
kg |
12300 |
|
Max. traveling speed |
km/h |
6.3 |
|
Min. Turning radius |
m |
6 |
|
Min. Ground clearance |
mm |
230 |
|
Max. gradeability |
% |
45 |
|
Tire specification |
- |
Solid tire 36×14-20 Or Foam Tire 355/55D625 |
|
Engine model |
- |
Yuchai 4D2404 |
|
Rated engine power |
kW/(r/min) |
36.8/(2700) |
