40m official XCMG aerial work platform XGS40 price
Summary
- Weight:20600kg
- Overall Dimension:14060*2490*3000mm
- Table Size:2400*900mm
- Max Lifting Height:38.2m
- Rated Loading Capacity:230/340kg
- Power:55.5kW
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS40
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:20600.000kg
- Condition:New
- Moving Type:Wheel
- Min. ground clearance:320mm
- Min. turning radius:8.2/10.8/5.8/6.8m
- Maximum traveling speed:5km/h
- Wheelbase:3800mm
- Engine rated power:55.5/(2400)kW/(r/min)
- Max. gradeability:45%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
40m official XCMG aerial work platform XGS40.
XCMG aerial work platform XGS40 with compact driving size; maximum operation height 40.2m, maximum carrying capacity 340kg, maximum climbing degree 40%.
Advanced in the industry, and four-wheel driving; dual operation amplitude curves; industry-leading operation height, amplitude and carrying capacity; no more than 3m overall height for easier transferring; the machine is simple, efficient, safe and reliable, meeting demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.
Advantages and feature:
1. 2.4m wide platform, enough for carrying tools and materials.
2. 4WD and gradeability leading the industry; dual work-amplitude curve; work height and range.
3. 230kg and 340kg loading capacity for different working conditions.
4. Short crank arm, telescopic boom, 1.45m of horizontal extension and 135° of pitch range, excellent work performance.
5. Over-wide off-road foam tires are suitable not just for any soft road, also for others.
6. Axle balance system enables the vehicle to run on any rough road.
|

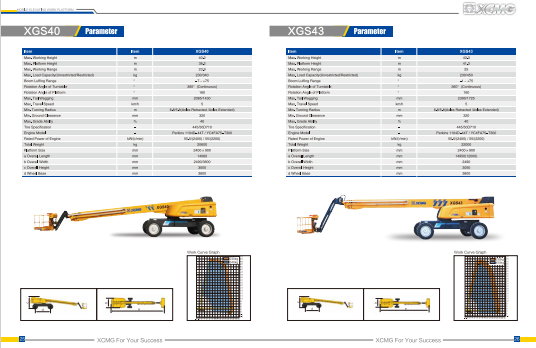

Item |
Unit |
Parameter |
|
a. Overall length of complete machine |
mm |
14060 |
|
b. Overall width |
mm |
2490/3800 |
|
c. Overall height |
mm |
3000 |
|
d. Wheelbase |
mm |
3800 |
|
Max. working height |
m |
40.2 |
|
Max. platform height |
m |
38.2 |
|
Max. working range |
m |
23.9 |
|
Max. carrying weight |
kg |
230/340 |
|
Luffing range of boom |
° |
-7 ~ +75 |
|
Slewing angle of turntable |
° |
360° |
|
Max. rearward slewing |
mm |
2085/1430 |
|
Platform size |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
20600 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius (With axle retracted/extended) |
m |
8.2/10.8 (Two-wheel steering) |
|
5.8/6.8 (Four-wheel steering) |
||
|
Min. ground clearance |
mm |
320 |
|
Max. gradeability |
% |
40 |
|
Tire specification |
- |
445/50D710 |
|
Engine model |
- |
Perkins 1104D-44T |
|
Engine rated power |
kW/(r/min) |
55.5/2400 |
