Summary
- Weight:27200kg
- Overall Dimension:19450*2490*3050mm
- Table Size:2400*900mm
- Max Lifting Height:58m
- Rated Loading Capacity:230/450kg
- Power:74.4KW
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS58
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:27200.000kg
- Condition:New
- Moving Type:Wheel
- Min. ground clearance:0.25m
- Min. turning radius:9.5/6.6m
- Maximum traveling speed:4.5km/h
- Wheelbase:5.22/4.59m
- Engine rated power:74.4/2300kW/(r/min)
- Max. gradeability:45%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

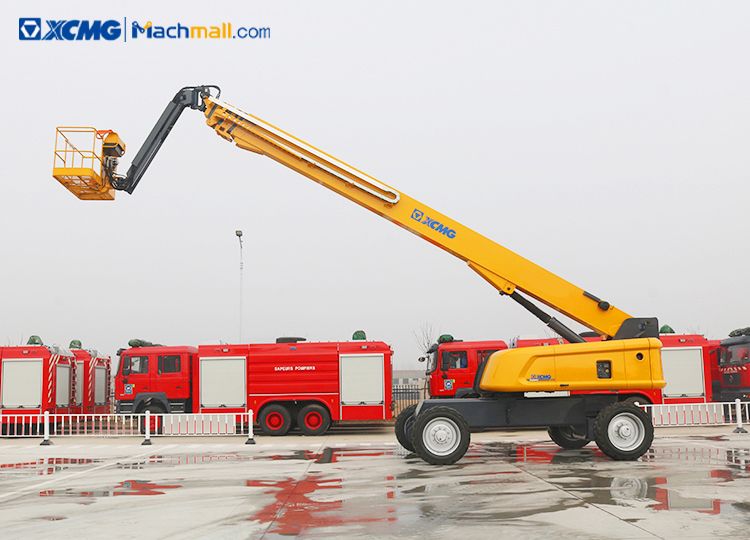

58m XCMG aerial work platform XGS58.
XCMG XG Series Aerial Work Platform:
XCMG XG series aerial work platform includes scissor lifts, articulated boom lifts, telescopic boom lifts. XGS telescopic boom lifts series cover 22m to 58m in height, with the characteristics of wide operating space coverage, safety, high efficiency and energy saving, accurate and stable operation, and are widely used in various aerial operations.
XCMG aerial work platform XGS58 Scope of Application:
It is suitable for high altitude work and material transportation, piping laying, installation of coverings, coating fireproof materials, painting paint, installation of elastic pillars, etc. It can reduce the time of scaffold construction and disassembly, realize the three-dimensional cross construction, reduce the construction cost and improve the construction efficiency.
XCMG aerial work platform XGS58 Highlights:
1. The working height is 58m and the maximum bearing weight is 230/450kg. The dual-load control system can automatically adjust the working range according to the load to meet the different bearing needs of users.
2. Three telescopic boom, a tower boom and a small flying boom is equipped to overcome obstacles and achieve wide range of operation.
3. Sensitive hydraulic system is loaded to achieve more accurate control.
4. Multiple safety designs are adopted to ensure the safety of construction personnel and machines.
Market of XCMG Aerial Work Platform:
XCMG’s aerial work platform has maintained a sound development trend of high speed and high quality for four consecutive years and has been ranked first among China.

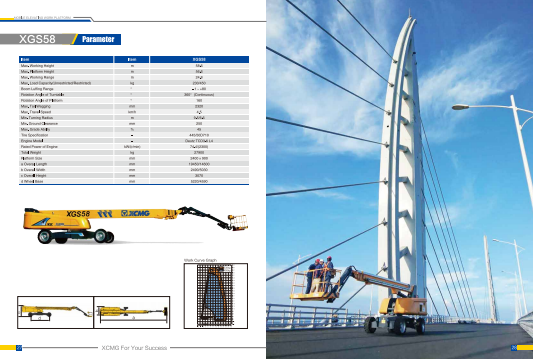

Item | Unit | Parameter |
Overall length (Transport status) | m | 19.45(14.6) |
Overall width (With shaft retracted/extended) | m | 2.49/5.03 |
Overall height | m | 3.05 |
Wheelbase | m | 5.22/4.59 |
Maximum working height | m | 58.6 |
Maximum platform height | m | 56.6 |
Maximum working range | m | 25.1 |
Maximum carrying weight | kg | 230 (unrestricted)/450 (restricted) |
Luffing range of boom | ° | -1 ~ 80 |
Slewing angle of turntable | ° | 360° |
Maximum tail swing | m | 2.32 |
Dimension of platform | m | 2.4×0.9 |
Slewing angle of platform | ° | 180 |
Overall weight | kg | 27200 |
Maximum traveling speed | km/h | 4.5 |
Minimum turning radius (With axle retracted/extended) | m | 9.5/6.6 (Four-wheel steering) |
Minimum ground clearance | m | 0.25 |
Maximum gradeability | % | 45 |
Specification of tire | - | 445/50D710 24-ply |
Engine model | - | Deutz TCD3.6 L4 |
Engine rated power | kW/(r/min) | 74.4/2300 |
