XCMG original manufacturer 16m XG1612HD aerial work platform for sale
Summary
- Weight:3350kg
- Overall Dimension:2840*1270*2600mm
- Table Size:2640*1120mm
- Max Lifting Height:16m
- Min Lifting Height:1.47m
- Rated Loading Capacity:230kg
- Power:4.5kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:XG1612HD
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:3350.000kg
- Condition:New
- Moving Type:Other
- Max. gradeability:25%
- Min. ground clearance:100/20mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

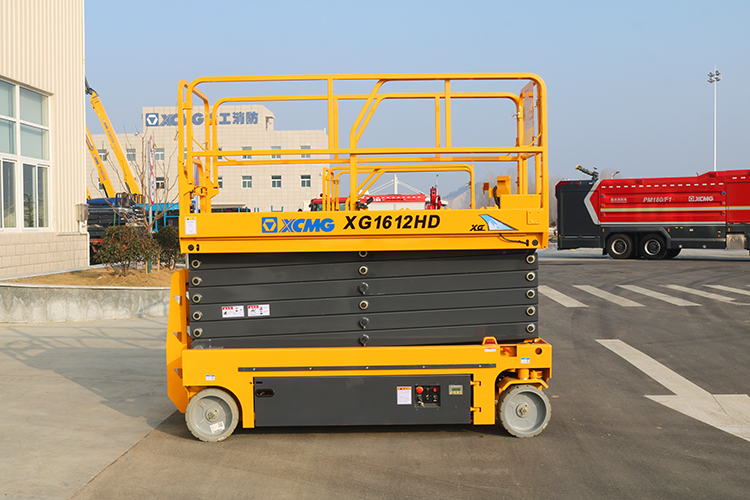

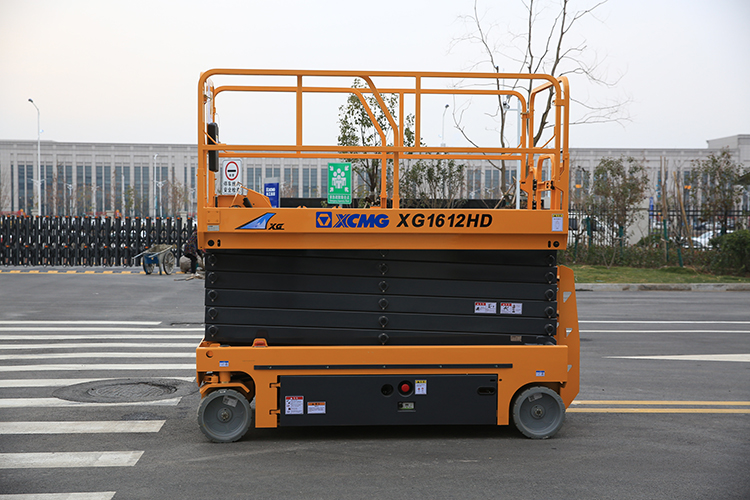

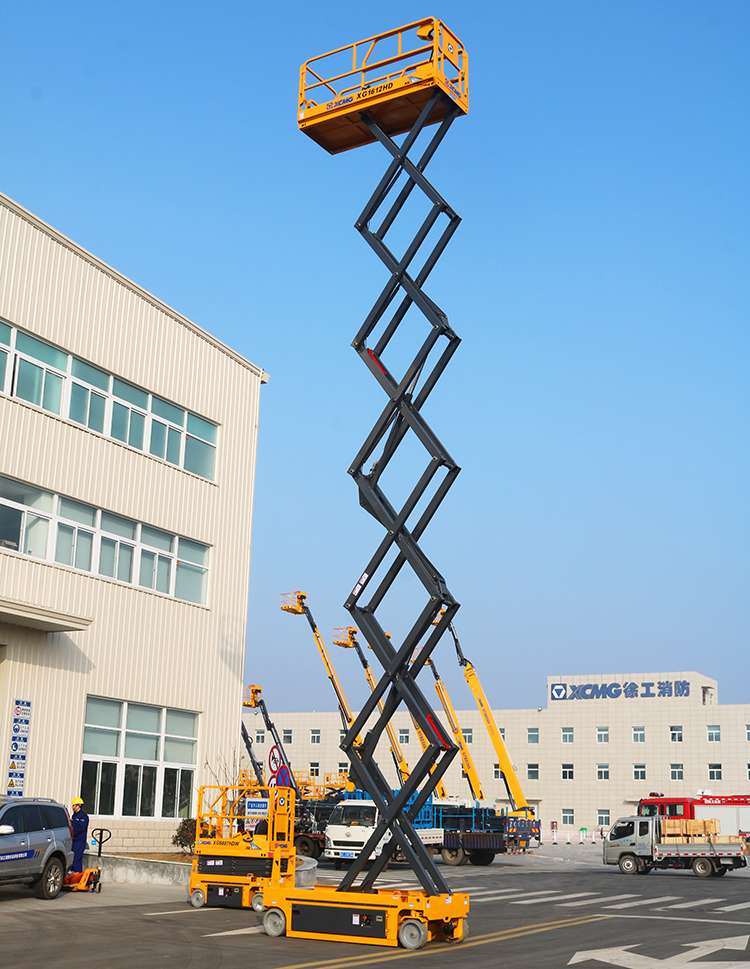

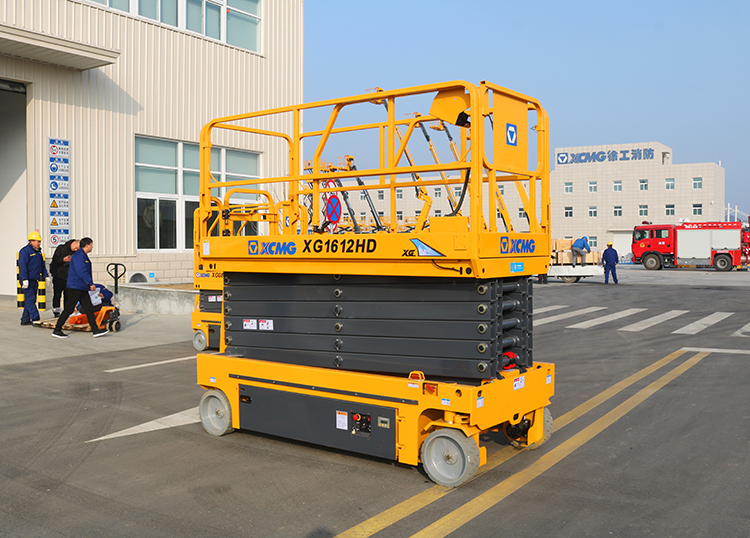

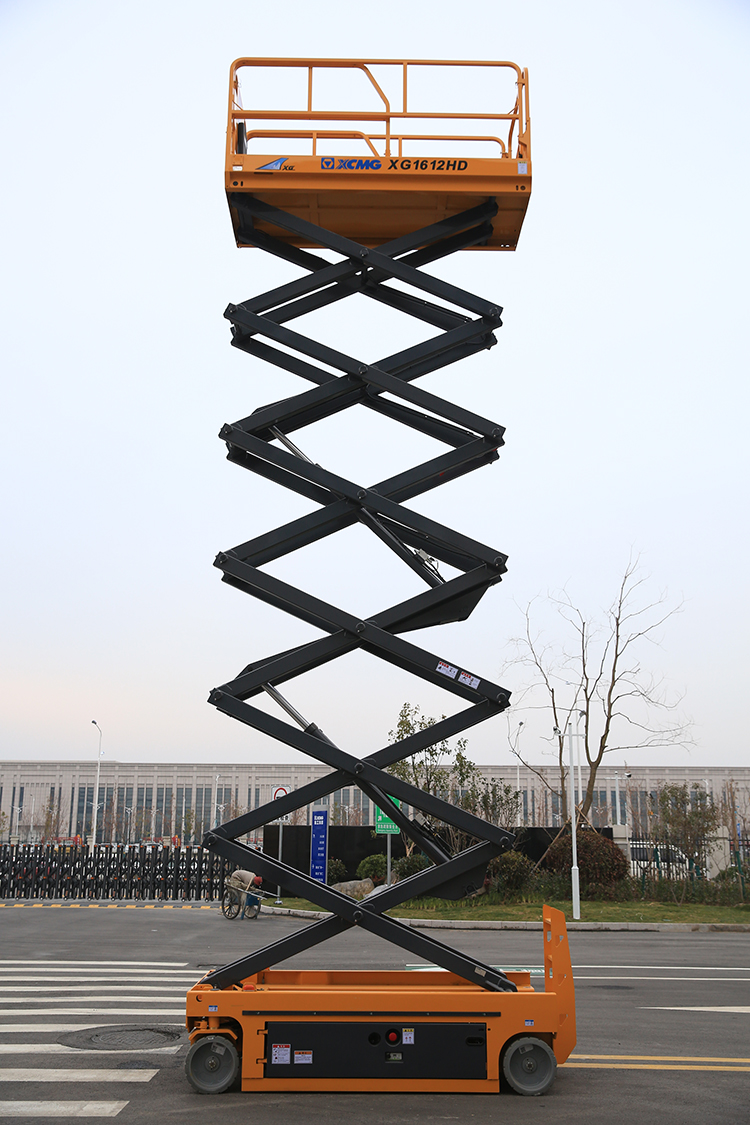

XCMG original manufacturer 16m XG1612HD aerial work platform.
XCMG aerial work platform XG1612HD developed by XCMG has the work height at 15.7m, the vehicle width at 1.27m, the rated load at 230kg, max. gradeability at 25%. XCMG aerial work platform XG1612HD features compact structure, advanced performance, completed safety devices, especially suitable for construction.
In addition. XCMG aerial work platform XG1612HD is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations.
Advantages and features:
1.Effective and energy-saving electric-drive system features zero emission and low noise, enabling this machine easily to work in enclosed environments.
2.XCMG XG1612HD aerial work platform meeting the customer needing for safety, reliability and intelligence.
3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier.
4."Zero Turning Radius "is unique and enable machine to corner in narrow room.
5.Max. payload at 230kg, leading the industry. Maximum traveling speed 3.2km/h and 25% gradeability make the driving easier.
|
Item |
Unit |
Parameter |
|
Dimension of machine Length (without ladder) |
mm |
2840 (2630) |
|
Dimension of machine Width |
mm |
1270 |
|
Dimension of machine Height (platform folded) |
mm |
2600 (2060) |
|
Wheelbase |
mm |
2240 |
|
Wheel track |
mm |
1123 |
|
Min ground clearance (Pit protector ascending/descending) |
mm |
100/20 |
|
Dimension of working platform Length |
mm |
2640 |
|
Dimension of working platform Width |
mm |
1120 |
|
Dimension of working platform Height |
mm |
1263 |
|
Dimension of working platform Extension length of the auxiliary platform |
mm |
900 |
|
Centroid position of machine Horizontal distance to front shaft |
mm |
1127 |
|
Centroid position of machine Height of centroid |
mm |
720 |
|
Total mass of machine |
kg |
3350 |
|
Max. height of platform |
m |
13.7 |
|
Min. height of platform |
m |
1.478 |
|
Max working height |
m |
15.7 |
|
Min turning radius (inner wheel/outer wheel) |
m |
0/2.65 |
|
Rated load |
kg |
230 |
|
Payload of extended platform |
kg |
115 |
|
Lifting time |
s |
65-82 |
|
Lowering time |
s |
61-80 |
|
Drive speed(lowered) |
km/h |
3.2 |
|
Drive speed(elevated) |
km/h |
0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning angle (side/forward and backward) |
° |
1.5/3 |
|
Lifting / traveling motor Model |
- |
- |
|
Lifting / traveling motor Rated power |
kW |
4.5 |
|
Lifting / traveling motor Manufacturer |
- |
- |
|
Battery Model |
- |
T1275/6-EV-100 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
300 |
|
Battery Manufacturer |
- |
Trojan/ Leoch |
|
Tire models |
- |
Traceless and solid /381×127 |
