12m official hydraulic XG1212HD XCMG aerial work platform for sale
Summary
- Weight:2900kg
- Overall Dimension:2477*1190*2480mm
- Table Size:2277*1120mm
- Max Lifting Height:12m
- Min Lifting Height:1.34m
- Rated Loading Capacity:320kg
- Power:4.5kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:XG1212HD
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:2900.000kg
- Condition:New
- Moving Type:Other
- Max. gradeability:25%
- Drive speed(lowered):3.2km/h
- Drive speed(elevated):0.8km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

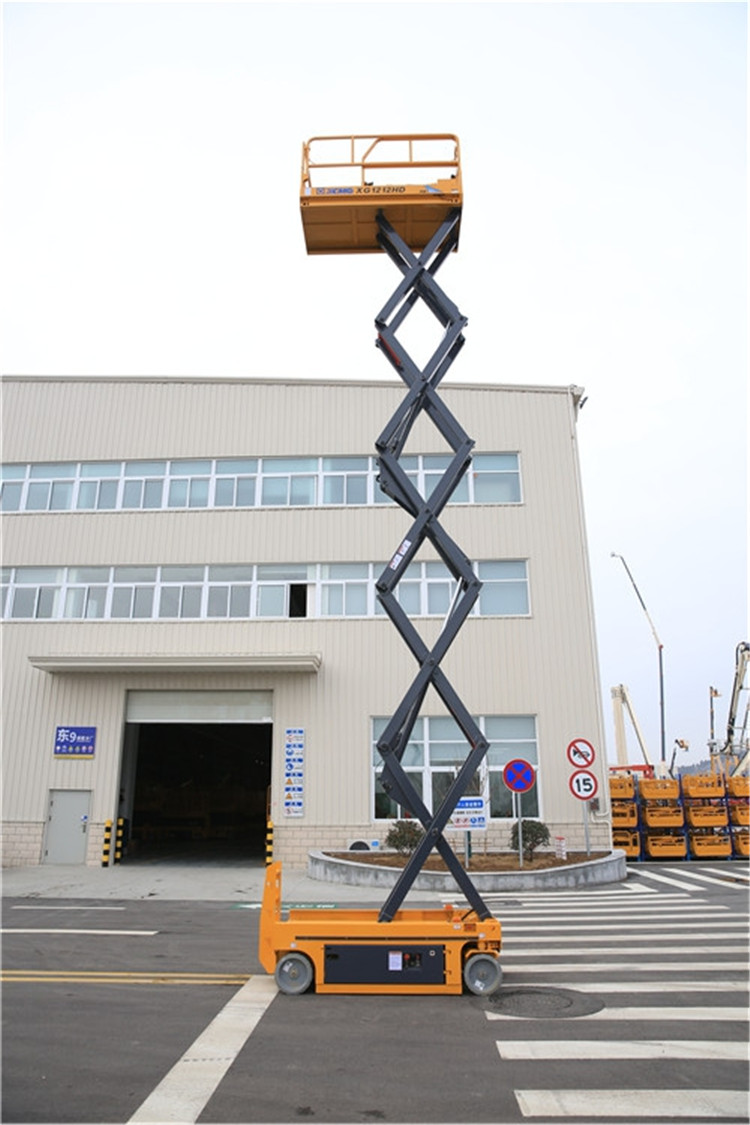

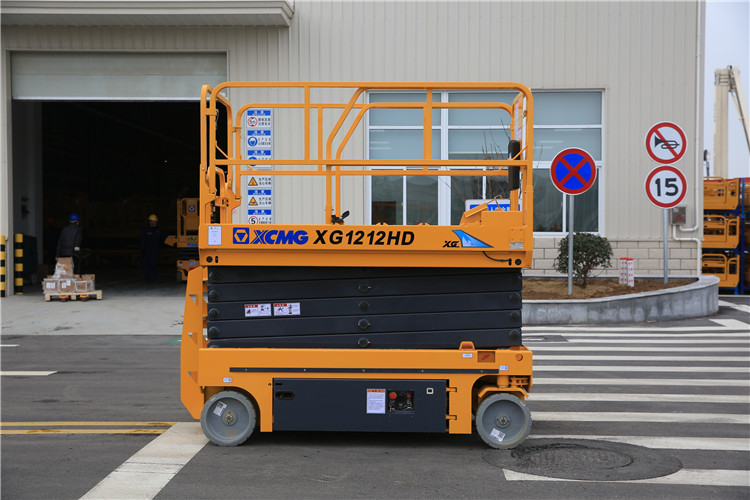

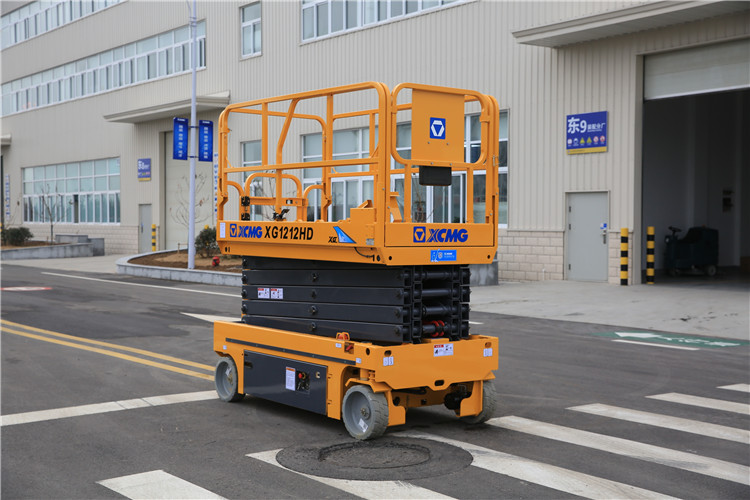

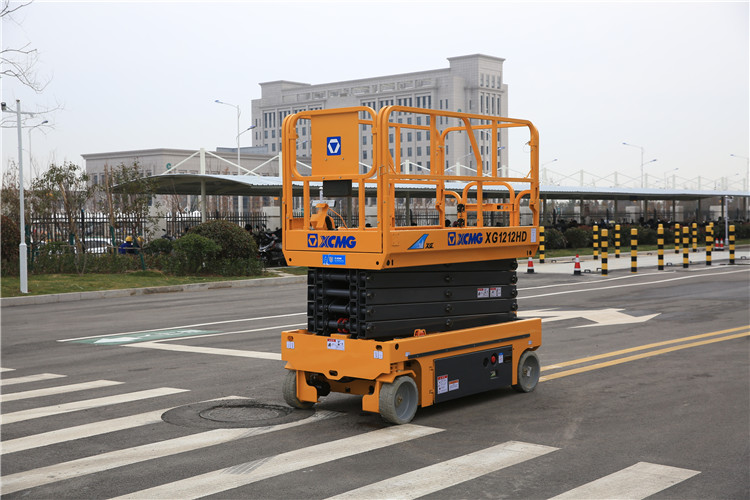

12m official hydraulic XG1212HD XCMG aerial work platform.
XCMG aerial work platform XG1212HD developed by XCMG has the work height at 12m, the vehicle width at 1.19m, the rated load at 320kg, max. gradeability at 25%.

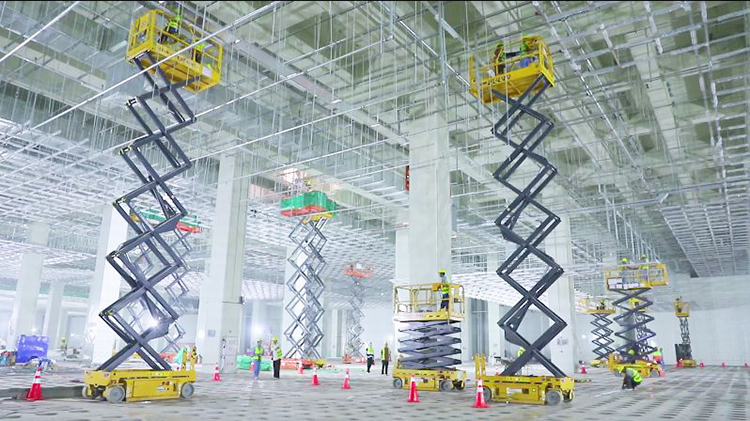

This kind of XCMG aerial work platform are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.
Advantages and features:
1.XCMG aerial work platform XG1212HD effective and energy-saving electric-drive system features zero emission and low noise.
2.features compact structure, advanced performance, completed safety devices.
3.Meeting the customer needing for safety, reliability and intelligence.
4."Zero Turning Radius "is unique and enable machine to corner in narrow room.
5.XCMG aerial work platform XG1212HD max. payload at 320kg, leading the industry. Maximum traveling speed 3.2km/h and 25% gradeability make the driving easier.
|
Item |
Unit |
Parameter |
|
Dimension of machine Length (without ladder) |
mm |
2477 (2267) |
|
Dimension of machine Width |
mm |
1190 |
|
Dimension of machine Height (platform folded) |
mm |
2480 (1930) |
|
Wheelbase |
mm |
1877 |
|
Wheel track |
mm |
1043 |
|
Min. ground clearance (Pit protector ascending/descending) |
mm |
100/20 |
|
Dimension of working platform Length |
mm |
2277 |
|
Dimension of working platform Width |
mm |
1120 |
|
Dimension of working platform Height |
mm |
1263 |
|
Extension length of the Dimension of working platform auxiliary platform |
mm |
900 |
|
Centroid position of machine Horizontal distance to front shaft |
mm |
950 |
|
Centroid position of machine Height of centroid |
mm |
663 |
|
Total mass of machine |
kg |
2900 |
|
Max. height of platform |
m |
10 |
|
Min. height of platform |
m |
1.34 |
|
Max. working height |
m |
12 |
|
Min. turning radius (inner wheel/outer wheel) |
m |
0/2.3 |
|
Rated load |
kg |
320 |
|
Payload of extended platform |
kg |
115 |
|
Lifting time |
s |
50-75 |
|
Lowering time |
s |
43-65 |
|
Drive speed(lowered) |
km/h |
3.2 |
|
Drive speed(elevated) |
km/h |
0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning angle (side/forward and backward) |
° |
1.5/3 |
|
Lifting / traveling motor Model |
- |
- |
|
Lifting / traveling motor Rated power |
kW |
3.3 |
|
Lifting / traveling motor Manufacturer |
- |
- |
|
Battery Model |
- |
T125/3-EV-225 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
240 |
|
Battery Manufacturer |
- |
Trojan/Leoch |
|
Tire models |
- |
Traceless and solid /381×127 |
