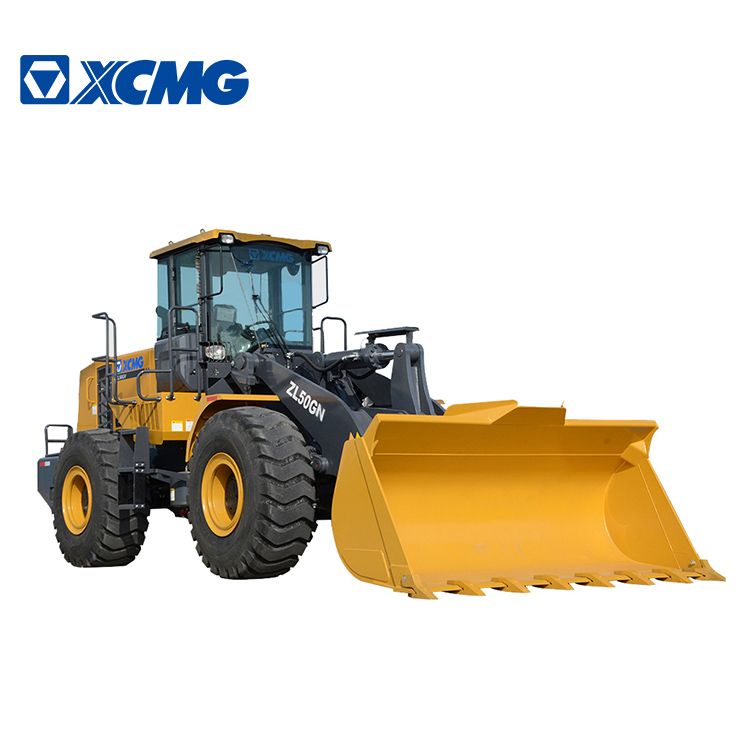

XCMG 5 ton wheel loader ZL50GN China rc loader wheel for sale
![](/app/topc/statics/images/close.png)
![XCMG 5 ton wheel loader ZL50GN China rc loader wheel for sale](/images/store/357636/item/ZL50GN-1 (1).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Rated Load:5000 kg
- Dimension(Long* Breadth * High):8225*3016*3515mm
- Type:Front Loader
- Place of Origin:Jiangsu, China
- Model Number:ZL50GN
- Brand Name:XCMG
- Certification:ISO/CE
Specifications
- weight:17500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

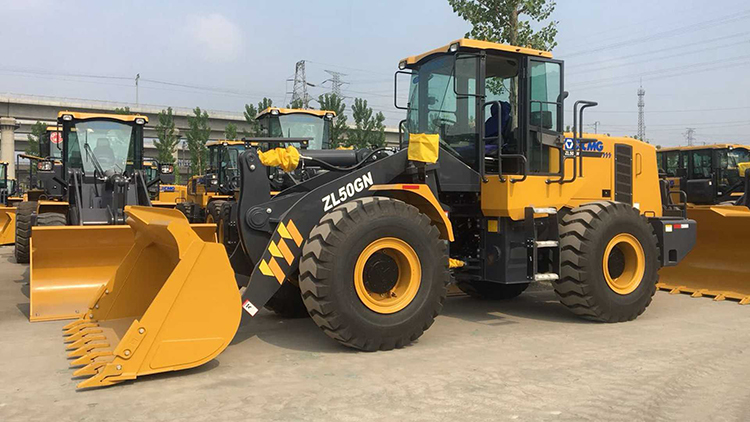

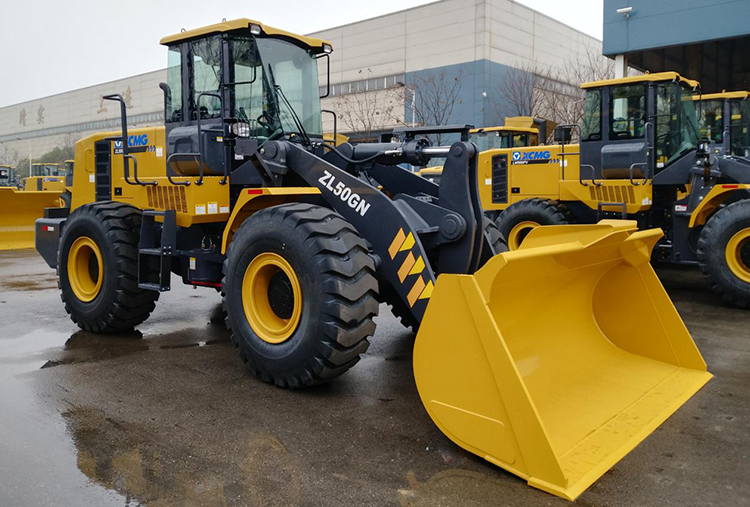

XCMG wheel loader ZL50GN 5 ton loader.
In recent years, XCMG made numerous breakthroughs in loader technology development and continuously make history in loader industry. Implementation of “service throughout full life cycle" brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.
Product Overview:
XCMG
wheel loader ZL50GN is the most popular model of China 5t wheel loader, Now
ZL50GN is upgrading to new model ZL50GV equipped with EURO III engine with
electric injector, new model will have high performance.
ZL50GN wheel loader is the latest cross-generation product developed ,the first-choice equipment for the production organization the fields of ports, mines, engineering constructions, and logistics.
Performance Highlights:
1.Heavy
load for the rocky condition; the working device and front and rear frame
feature thick board of high strength, reasonable distribution and strong carrying
capacity.
2.The
large rock bucket with capacity of 2.5m³ is improved in terms of the work
efficiency and adaptation. The bucket teeth adopt the structure of toolholder
and sleeve. The cutting blade and bucket edge are equipped with protection device,
featuring excellent abrasion resistance and shock resistance.
3.The
thickness of the front frame lug and baseboard is 70mm, and the thickness of
the up and down articulated board is 30mm. The machine is superior among the
products of same kind in terms of the structural strength and carrying
capacity.
4.160kN breakout force handle all kinds of materials with ease,≥3.5m high dumping capacity handle the severe conditions with ease.
Optional parts:
Grasping
grass pliers / Sliding fork / Standard bucket/ Side dumping / Light material
Blade bucket 3.5m3/4m3/4.5m3,2.5m3 Mine bucket.
Overall dimensions |
Overall length (bucket on the ground) |
8165 mm |
Overall width |
2850 mm |
|
Bucket width |
3016 mm |
|
Overall height |
3485 mm |
|
Wheel base |
3300 mm |
|
Tread |
2250 mm |
|
Min. ground clearance |
450 mm |
|
Specification |
Rated capacity |
5000 kg |
Bucket volume |
2.5 m3 (Bucket for rock) |
|
3 m3 (Standard bucket) |
||
3.5 m3 (Bucket for light material) |
||
4 m3 (Bucket for light material) |
||
Operating weight |
17500kg±300kg |
|
Traveling speeds |
ForwardⅠ/Reverse Ⅰ |
0~11.5/0~16.5 km/h |
Forward Ⅱ/Reverse Ⅱ |
0~38 km/h |
|
Forward Ⅲ/Reverse Ⅲ |
||
Forward Ⅳ/Reverse Ⅳ |
||
Max. tractive force |
165±5kN |
|
Max. climbing gradient |
30 º |
|
Max. dumping angle |
45 º |
|
Max. dumping height |
≥3100 mm (main cutting edge) |
|
Dumping reach |
≥1100 mm (main cutting edge) |
|
Dumping angle of bucket |
≥45 º |
|
Max. Breakout force |
Breakout force of bucket |
170 KN |
Breakout force of lifting |
134 KN |
|
Maximum digging depth |
40 mm (the bucket bottom is level) |
|
Lifting time of boom |
≤6 s |
|
Total cycling time |
≤11 s |
|
Min. Turning radius |
Outside of the bucket |
7300 mm |
Center of the tyre |
6400 mm |
|
Turning angle of the chassis |
35 º |
|
Oscillating angle of the rear axle |
±12 º |
