XCMG official factory 14.5L sprinkler cleaning truck XZJ5250GSSD5 road spray cleaning truck price
Specifications
- Weight:25000.000kg
- Condition:New
- Moving Type:Other
- Tank Volume:14.5L
- Sprinkling Area (m):>16m
- Dimensions (L x W x H) (mm):9760*2500*2990mm
- Working speed: 5~20km/h
- Sprinkling width:≥16m
- Sprinkling capacity:0.2~2.0L/m2
- Nozzle Flush System Pressure:≥300kPa
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

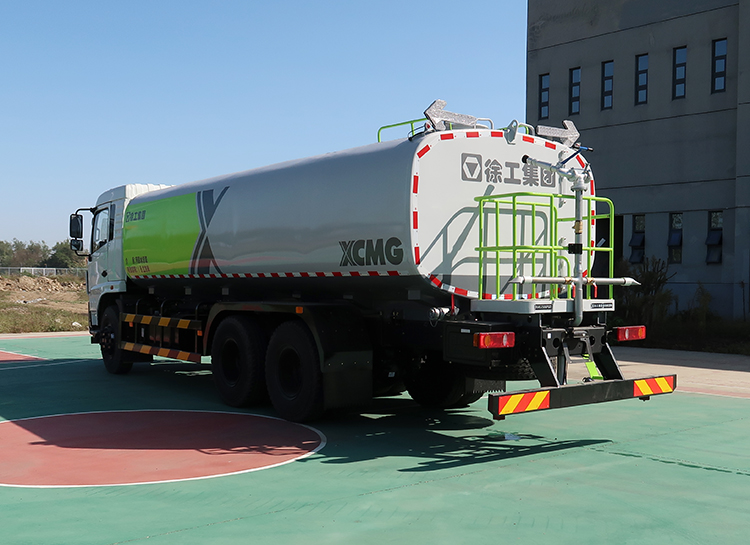

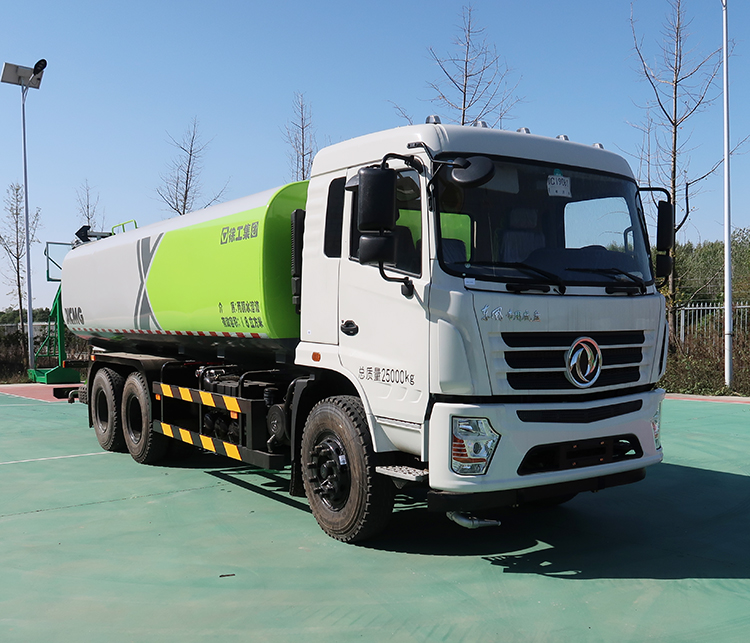

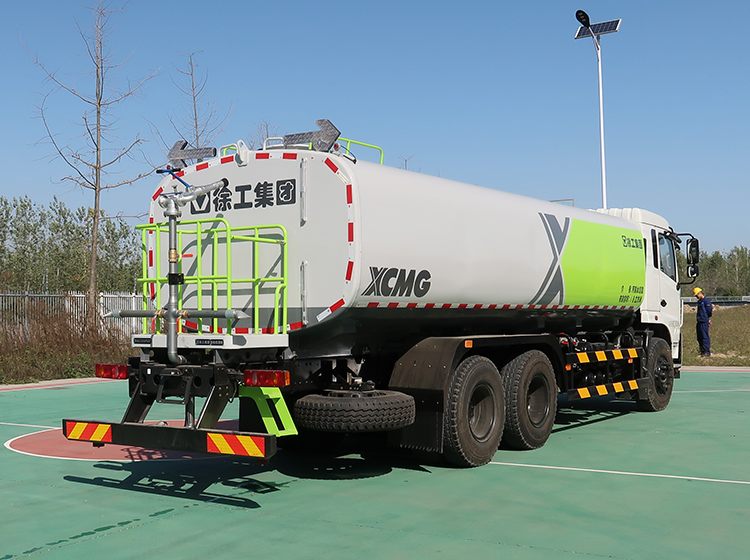

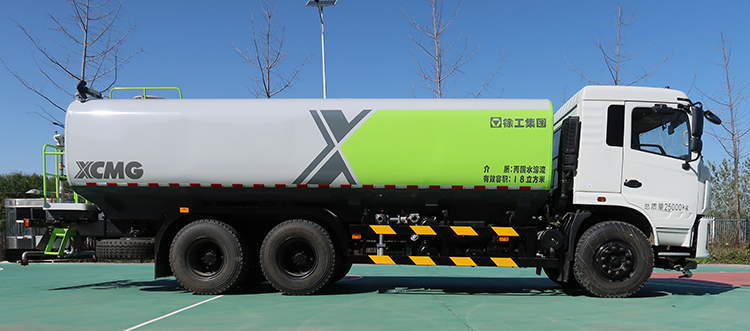

14.5L sprinkler cleaning truck XZJ5250GSSD5 road spray
cleaning truck.
XZJ5250GSSD5
green sprayer is suitable for all kinds of road surface, Sprinklers are not
only suitable for sprinkling, spraying, cooling, dusting, flushing dust and
dirt, but also for pavement maintenance, landscaping and emergency firefighting.
The sprinklers produced by our company are mainly composed of automobile
chassis, tank body, water pump, ball valve, water pipeline and sprinkler.
The
water pump, power take-off box and water circuit switching components are all
national standard products, with good performance and reliable work. When the
water is sprinkled, the pressure is high, the flow rate is high, the fuel
consumption is low, and the music horn switch is turned on during operation.
The beautiful music will work happily with you.
Performance Characteristics:
*

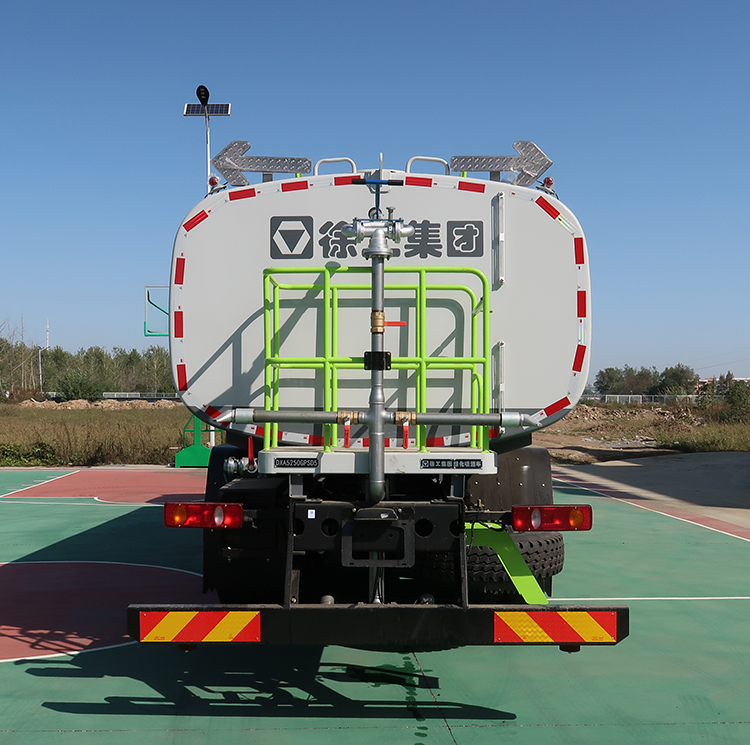

The truck has a variety of sprinklers, the front is equipped with a duckbill
nozzle or a round head nozzle, and a cylindrical sprinkler and a side spray
shower head are arranged at the back to meet the needs of front, back and side
spray. The truck's rear working platform also has a sprinkler.
*
The sprinkler can have a variety of spray modes such as DC, heavy rain,
moderate rain, drizzle, and foggy adjustment. It can also be rotated 360
degrees for pesticide spraying. These properties greatly enhance vehicle
suitability and improve vehicle utilization.
|
Project |
Content |
XZJ5250GSSD5 |
|
Chassis parameters |
Model |
EQ1250GLJ |
|
Engine power (Kw) |
180 |
|
|
Wheelbase (mm) |
4350+1300 |
|
|
Approach / departure angle |
18°/12° |
|
|
Vehicle parameters |
Maximum total mass (Kg) |
25000 |
|
L × W × H (mm) |
9760 * 2500 * 2990 |
|
|
Curing quality Kg |
10990 |
|
|
|
Effective volume of tank (m3) |
14.5 |
|
Working speed (km/h) |
5～20 |
|
|
Sprinkling width (m) |
≥16 |
|
|
Sprinkling capacity (L/ m2) |
0.2～2.0 |
|
|
Nozzle Flush System Pressure (kPa) |
≥300 |
|
|
Gun flushing flow rate (L/min) |
≥60 |
|
|
Spray gun range (m) |
35`38 |
|
|
Self-priming height (m) |
6.5 |
|
|
Water tank body thickness (mm) |
4 |
|
|
Water tank head thickness (mm) |
5 |
|
|
Spray water flow rate (L/min) |
250-400 |
|
|
Washing water flow rate (L/min) |
400-800 |
|
|
Tank material |
Q235A |
|
|
Pump head (m) |
110 |
|
|
Pump flow rate (m3/h) |
50 |
