![XCMG official sprinkler cleaning truck XZJ5180GSSD5 road sanitation cleaning machinery for sale XCMG official sprinkler cleaning truck XZJ5180GSSD5 road sanitation cleaning machinery for sale](http://www.machmall.com/images/store/357636/item/XZJ5180GSSD5-1.jpg_l.jpg)

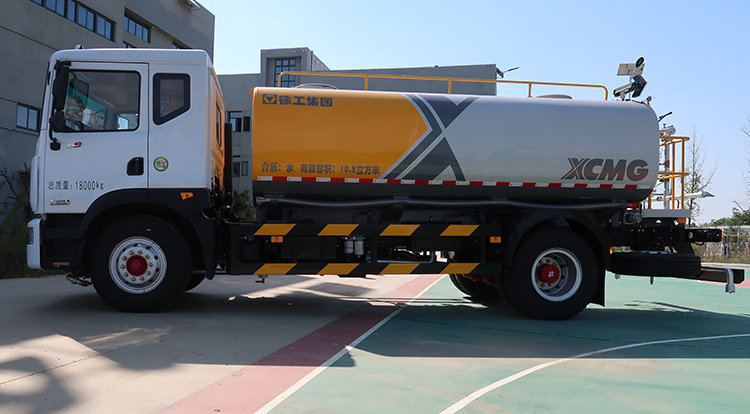

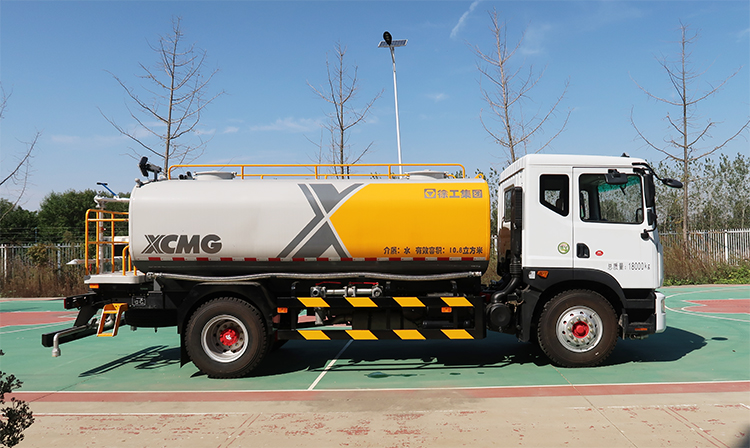

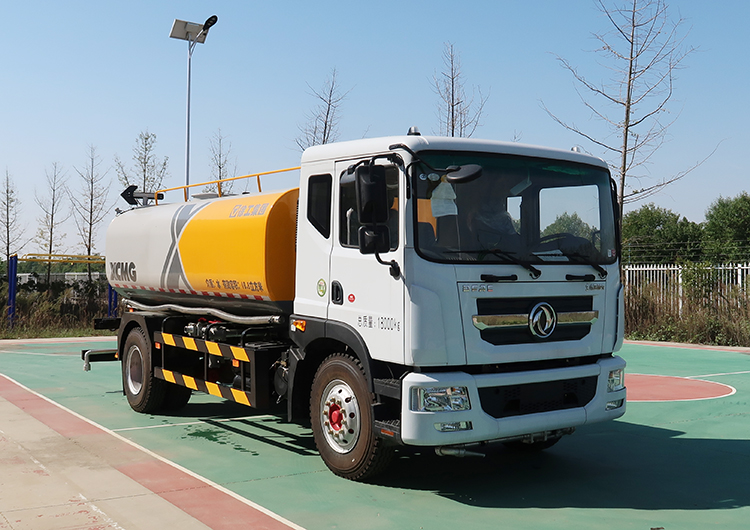

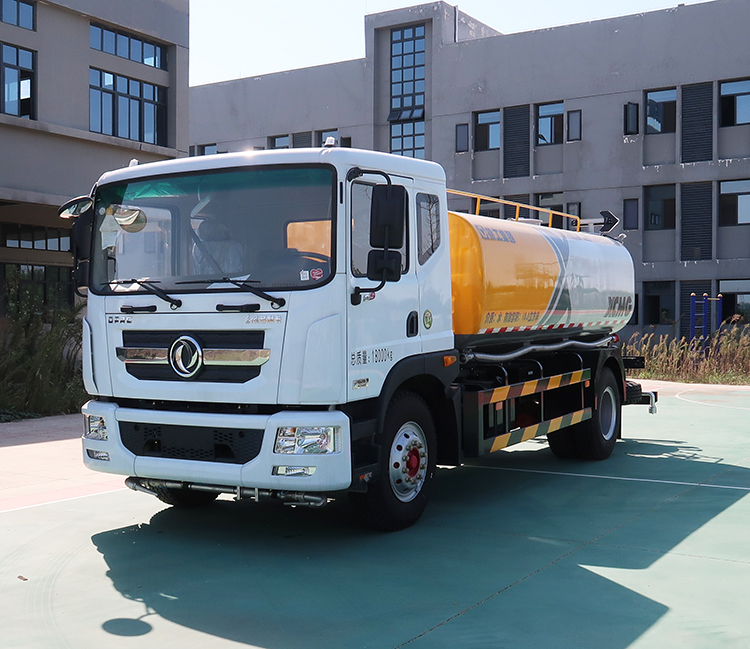

XCMG official sprinkler cleaning truck XZJ5180GSSD5 road sanitation cleaning machinery for sale
![](/app/topc/statics/images/close.png)
![XCMG official sprinkler cleaning truck XZJ5180GSSD5 road sanitation cleaning machinery for sale](http://www.machmall.com/images/store/357636/item/XZJ5180GSSD5-1.jpg)
![](/app/topc/statics/images/close.png)
Specifications
- weight:18000.000kg
- Condition:New
- Moving Type:Other
- Tank Volume:10.8m3
- Working speed:5~20km/h
- Sprinkling width:≥16m
- Sprinkling capacity:0.2~2.0L/ m2
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
sprinkler cleaning truck XZJ5180GSSD5 road sanitation
cleaning machinery.
XZJ5250GSSD5
green sprayer is suitable for all kinds of road surface, Sprinklers are not
only suitable for sprinkling, spraying, cooling, dusting, flushing dust and
dirt, but also for pavement maintenance, landscaping and emergency firefighting.
The sprinklers produced by our company are mainly composed of automobile
chassis, tank body, water pump, ball valve, water pipeline and sprinkler.
The
water pump, power take-off box and water circuit switching components are all
national standard products, with good performance and reliable work. When the
water is sprinkled, the pressure is high, the flow rate is high, the fuel
consumption is low, and the music horn switch is turned on during operation.
The beautiful music will work happily with you.
Performance Characteristics:
*

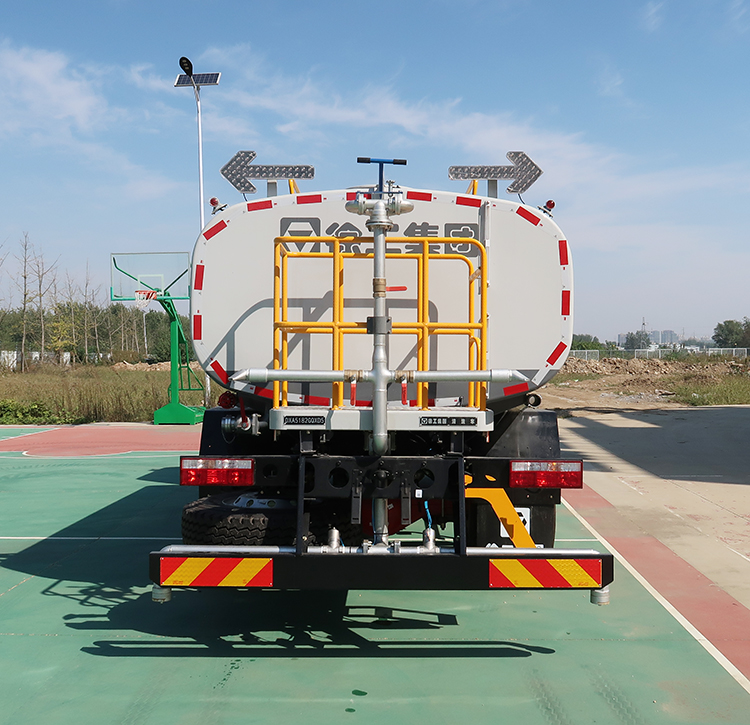

The truck has a variety of sprinklers, the front is equipped with a duckbill
nozzle or a round head nozzle, and a cylindrical sprinkler and a side spray
shower head are arranged at the back to meet the needs of front, back and side
spray. The truck's rear working platform also has a sprinkler.
*
The sprinkler can have a variety of spray modes such as DC, heavy rain,
moderate rain, drizzle, and foggy adjustment. It can also be rotated 360 degrees
for pesticide spraying. These properties greatly enhance vehicle suitability
and improve vehicle utilization.
project |
description |
parameter |
|
Model |
EQ5180GLVJ |
Power(kw) |
140 |
|
Wheelbase(mm) |
4500 |
|
Vehicle parameters |
Maximum total mass(kg) |
18000 |
L×W×H(mm) |
8450×2500×3150 |
|
Curing quality(kg) |
7305 |
|
Operating performance parameters Tank |
effective volume(m3) |
11(Actual 12.73 m3) |
Working speed(km/h) |
5~20 |
|
Sprinkling width(m) |
≥16 |
|
Sprinkling capacity(L/ m2) |
0.2~2.0 |
|
Nozzle Flush System Pressure(kPa) |
≥300 |
|
Gun flushing flow rate(L/min) |
≥60 |
|
Spray gun range(m) |
≥25 |
|
Self-priming height(m) |
6.5 |
|
Opposite flush width(m) |
24 |
