XCMG official manufacturer XZJ5140JGKD4 17m Bridge Inspection Truck for Sale
Summary
- Model Number:XZJ5140KGKD4
- Brand Name:XCMG
- Place of Origin:China
- Certification:ISO9001
- Dimension(L*W*H):9790x2480x3750mm
- Weight:13535kg
Specifications
- Weight:31000.000kg
- Condition:New
- Moving Type:Wheel
- Max Operating Height:16.7m
- Max. aerial horizontal working range:8m
- Max. lowering depth:26.3m
- Max. low latitude horizontal working range:2m
- Rated load of platform:200kg
- Overall dimensions of platform:1.2×0.8×1.1m
- Rotation range of 1st slewing organization:0~360°
- Max. Walking speed:13 m/min
- Chassis model:DF5160XXYBX1A(Standard China IV)/DL5140XXYB5(Standard China V)
- Max.net power of engine:210Ps(155kw)
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG
official manufacturer XZJ5140JGKD4 17m Bridge Inspection Truck.
1.
Bridge inspection truck is a special vehicle, which supply work platform for
person while working, it can be equipped with bridge detector, used for mobile
inspection and maintenance work. Bridge inspection truck can be divided into
bucket type.
2.

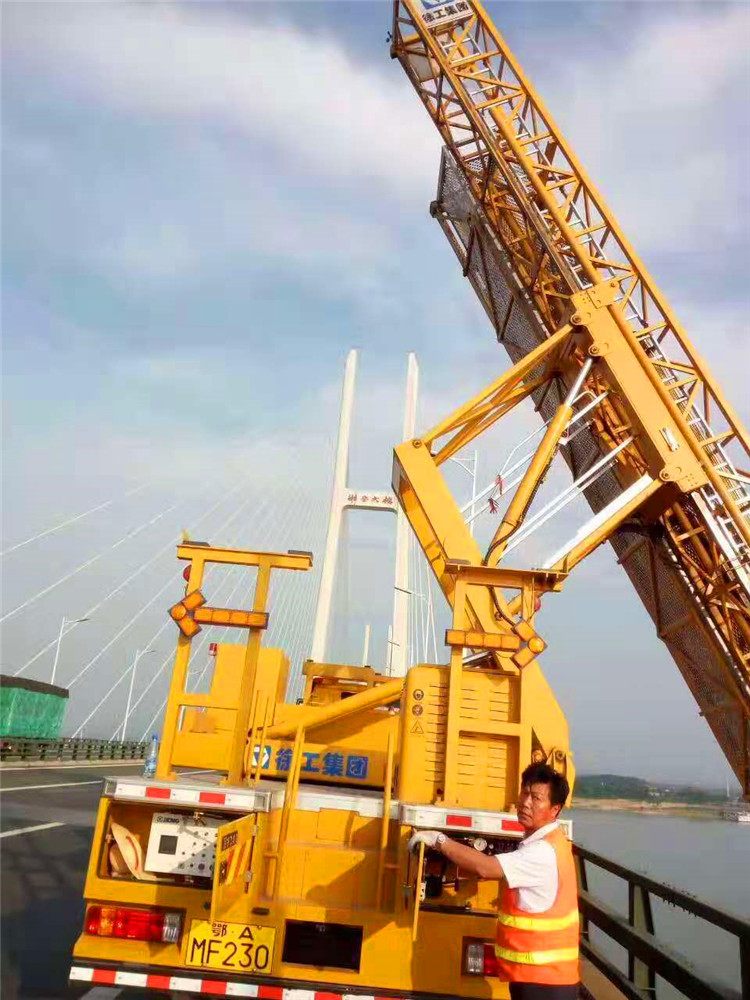

Under-bridge access equipment type according to working equipment.
under-bridge
access equipment type use access platform, with good stability and big carrying
capacity, it is convenient for personnel entering the platform from bridge or
return to bridge.
3.

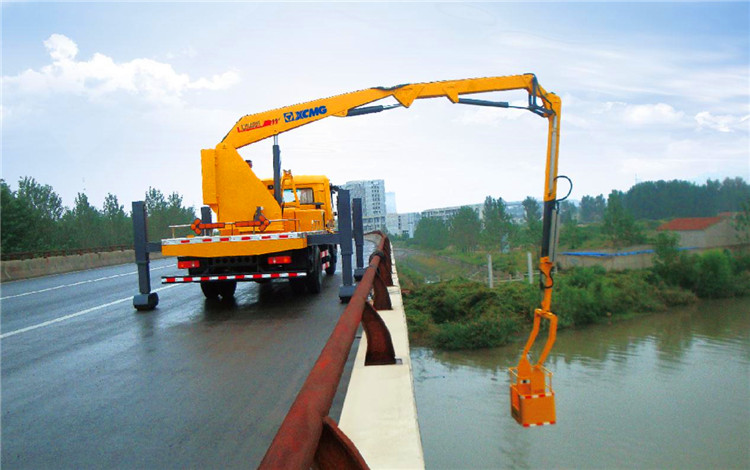

bucket-type aerial platform, with compact structure, work is flexible, almost
is not subject to the limit of bridge structure, it not only an inspect under
bridge but also can inspect the upper structure outside the bridge, sometimes
it can be used as an Aerial work platform.
|
Description |
Unit |
Parameter value |
|
Overall length of unit |
mm |
9790 |
|
Overall width of unit |
mm |
2480 |
|
Overall height of unit |
mm |
3750 |
|
Total weight of unit |
kg |
13535/14195 |
|
Max. Operating Height |
m |
16.7 |
|
Max. aerial horizontal working range |
m |
8 |
|
Max. lowering depth |
m |
6 |
|
Max. low latitude horizontal working range |
m |
2 |
|
Overall dimensions of platform |
m |
1.1×0.8×1.1 |
|
Rated load of platform |
kg |
200 |
|
Rotation range of 1st slewing organization |
° |
0~360 |
|
Max. walking speed |
m/min |
≥13 |
|
Chassis model |
Dong Feng DFL5160XXYBX1A (State IV)/DFL5140XXYB5 (State V) |
|
|
Max.net power of engine |
210Ps (155kW) |
|
