![XCMG Official HDD horizontal directional drill machine XZ420E made in China XCMG Official HDD horizontal directional drill machine XZ420E made in China](http://www.machmall.com/images/store/357636/item/XZ420E (2).jpg_l.jpg)

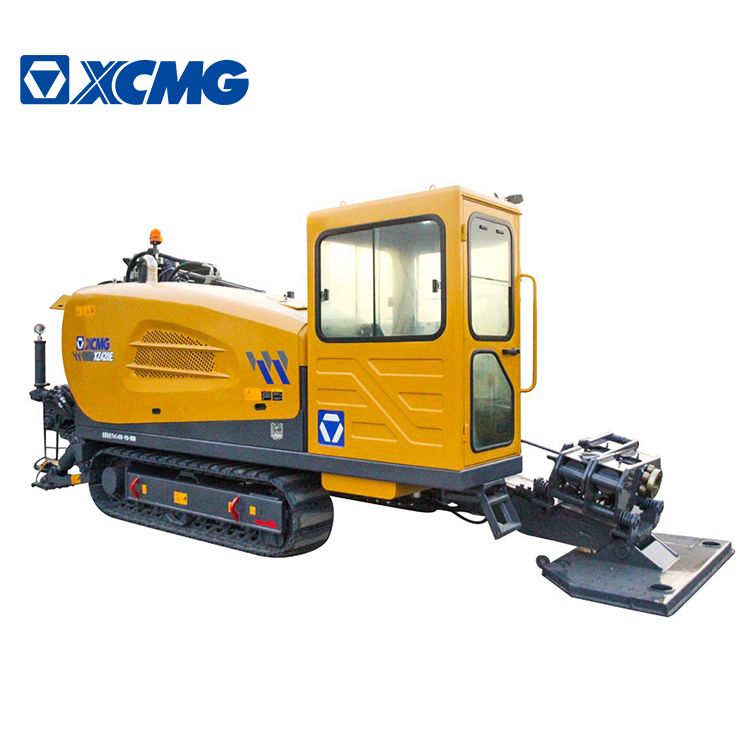

XCMG Official HDD horizontal directional drill machine XZ420E made in China
![](/app/topc/statics/images/close.png)
![XCMG Official HDD horizontal directional drill machine XZ420E made in China](/images/store/357636/item/XZ420E (2).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Weight:11000kg
- Power(W):179kw
- Model Number:XZ420E
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- weight:11000.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official HDD horizontal
directional drill machine XZ420E.
1.Hydraulic pilot control, provide comfortable
operating performance and flexible regulation, first-class brand of hydraulic
components to ensure the reliability of the machine hydraulic system.
2.Rack and pinion sliding, to ensure the stability of the carriage and the
reliability of drive operational. Carriage floating, XCMG proprietary patented
Carriage floating, floating vice technology can greatly protect the drill pipe
thread, the service life of the drill pipe 30% increase.
3.High-speed sliding systems, piston motor to achieve high and low sliding
speed of carriage, increasing the ability to adapt the machine working
conditions, promote construction efficiency.
4.The whole machine adopts protection technology such as proportional
wire-controlled walking, seat switch, logic interlock, electrical shock
protection and , short time Plus20% force, meet the CE safety certification
requirements.
5.Sliding, rotating system multiple output, modular common rail fuel
system and electronic control module, system energy saving, high efficiency of
construction, efficiency increased by 15%.
6.Support the diverse needs of customers, the machine can be increased
with cab, air conditioner, cold start, mud antifreeze, automatic loading rod,
electrical shock protection automatic thread oil daub etc, reduce the working
strength, improve the construction efficiency.
Description |
Unit |
XZ420E |
|
Engine |
Manufacturers |
Dongfeng Cummins |
|
Model |
QSC8.3-C240 |
||
Rated Power |
kW /(r/min) |
179 / 2200 |
|
Thrust-Pull |
Type |
Piston Motor+
Reduction Box |
|
Max thrust-pull
force |
kN |
420/500 |
|
Max thrust-pull
speed |
m/min |
42 |
|
Rotation |
Type |
Piston Motor+
Reduction Box |
|
Torque |
N·m |
18500 |
|
Max spindle
speed |
r/min |
145 |
|
Loader Crance |
/ |
/ |
|
Max inclination
angle |
° |
20 |
|
Pipe |
Diameter × Length |
mm×mm |
φ83×3000 |
Mud pump |
Max Flow rate |
L/min |
400/450 |
Max pressure |
MPa |
8 |
|
Weight |
kg |
11000 |
uMore horizontal directional drill
