XCMG HDD Drilling Rig XZ360E China horizontal directional drilling machine price for sale
Summary
- Certification:CE/ISO9001
- Weight:10.5t
- Model Number:XZ360E
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:10500.000kg
- Condition:New
- Moving Type:Other
- Max thrust-pull speed:32m/min
- Max thrust-pull force:370/370KN
- Weight:10500kg
- Max spindle speed:140r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

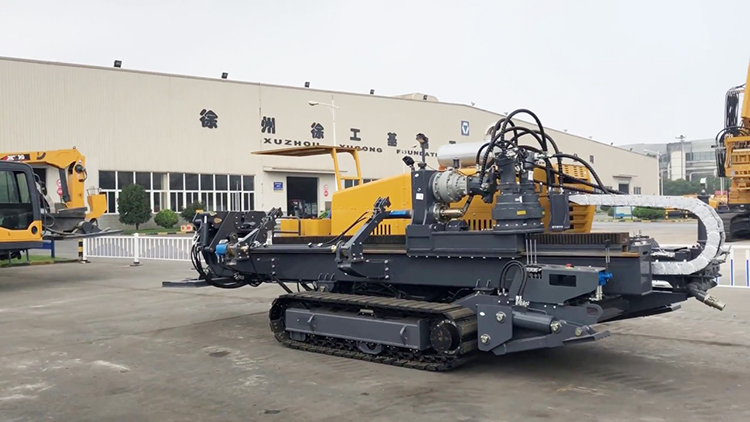

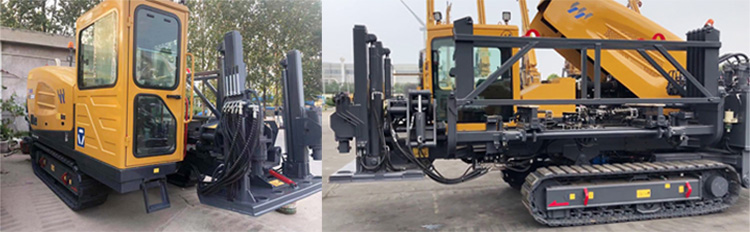

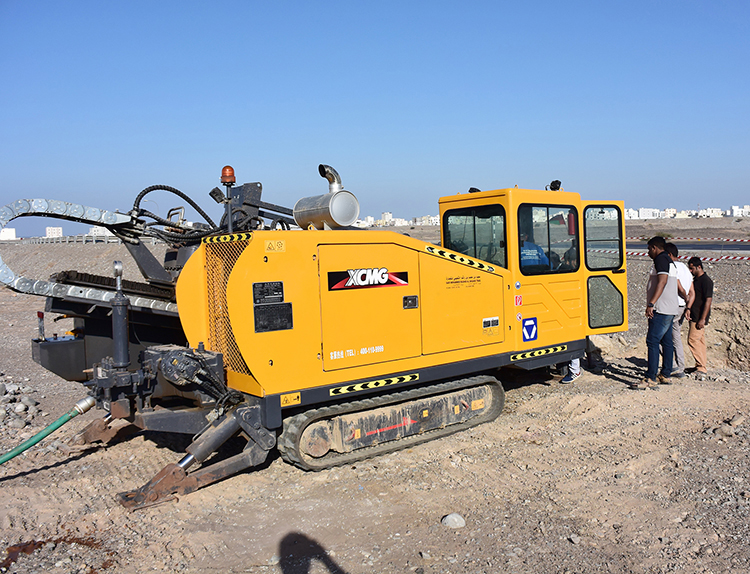

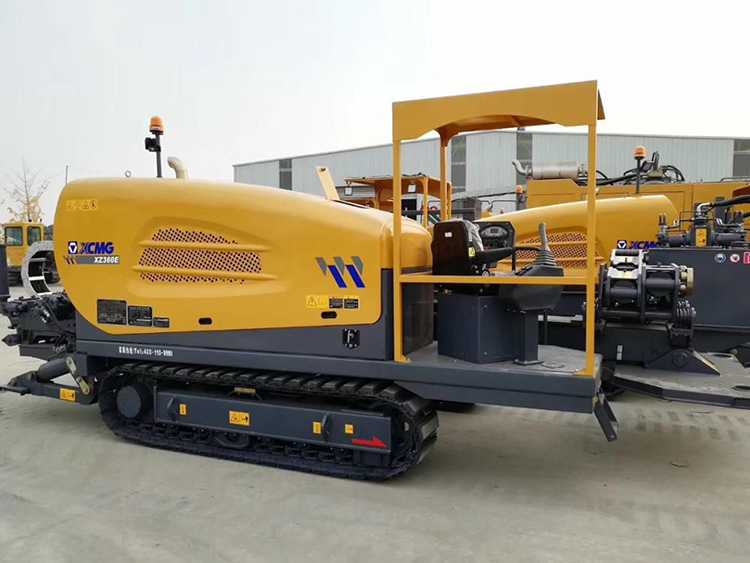

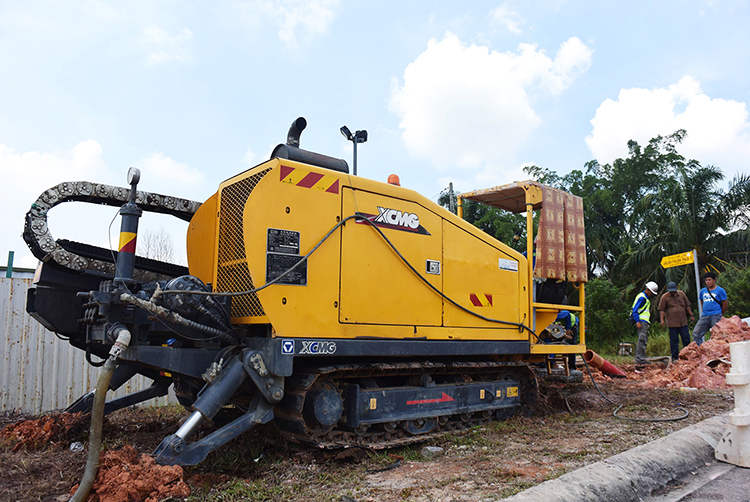

XCMG HDD Drilling Rig XZ360E China horizontal directional drilling machine.
XZ360E horizontal directional drilling rig, which adopts various advanced technologies and the proprietary technologies of the company, supports the diverse needs of customers, efficient automation construction, reduce construction costs and labor intensity.
Advantages and features:
1, Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2, Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3, High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4, Optional full-automatic pipe loader, drilling box can accommodate 40 piece of drill pipes(φ73), ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
5, Support the diverse needs of customers, the machine can option configuration with the automatic (semi automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices.
|
Description |
Unit |
Parameter value |
||
|
Engine |
Manufacturers |
Dongfeng Cummins |
||
|
China III |
Model |
QSB5.9-C210 |
||
|
Rated Power |
kW /(r/min) |
154 / 2200 |
||
|
China II |
Model |
6BTAA5.9-C205 |
||
|
Rated Power |
kW /(r/min) |
153/ 2200 |
||
|
China III |
Model |
QSB6.7-C220 |
||
|
EU Stage IIIA |
Rated Power |
kW /(r/min) |
164/2200 |
|
|
Thrust-Pull |
Type |
Pinion and rack drive |
||
|
Max thrust-pull force |
kN |
370/370 |
||
|
Max thrust-pull speed |
m/min |
32 |
||
|
Rotation |
Type |
four motor |
||
|
Torque |
N·m |
13200 |
||
|
Max spindle speed |
r/min |
140 |
||
|
Max inclination angle |
° |
20 |
||
|
Pipe |
Diameter × Length |
mm×mm |
Φ73/83×3000 |
|
|
Mud pump |
Max Flow rate |
L/min |
400 |
|
|
Max pressure |
MPa |
8 |
||
|
Weight |
kg |
10500 |
||
