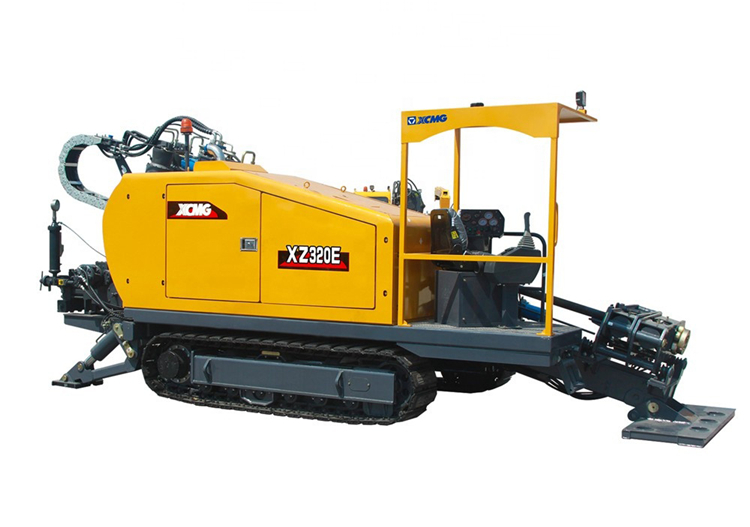

XCMG Official XZ320E HDD China Small New Horizontal Directional Drilling Machine Price
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):6200×2280×2450mm
- Weight:10t
- Power(W):154KW
- Model Number:XZ320E
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:10000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official XZ320E HDD
Machine Horizontal Directional Drilling Machine.
1,
Hydraulic pilot control, provide comfortable operating performance and flexible
regulation, first-class brand of hydraulic components to ensure the reliability
of the machine hydraulic system.
2,
Carriage and clamp using double floating patented technology can greatly
protect the drill pipe thread, increase the service life of the drill pipe.
3,
High-speed sliding systems, piston motor to achieve high and low sliding speed
of carriage, increasing the ability to adapt the machine working conditions,
promote construction efficiency.
4,
Optional full-automatic pipe loader, drilling box can accommodate 40 piece of
drill pipes(φ73), ensure one time reached 120 meters, efficient automation
construction, reduce construction costs and labor intensity.
5, Support
the diverse needs of customers, the machine can option configuration with the
automatic (semi automatic) full-automatic pipe loader, automatic anchoring
system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud
throttling and other devices.
|
Description |
Unit |
XZ320E |
||
|
Engine |
Manufacturers |
Dongfeng Cummins |
||
|
China III |
Model |
QSB5.9-C210 |
||
|
Rated Power |
kW /(r/min) |
154 / 2200 |
||
|
China II |
Model |
6BTAA5.9-C205 |
||
|
Rated Power |
kW /(r/min) |
153/ 2200 |
||
|
China III |
Model |
QSB6.7-C220 |
||
|
EU Stage IIIA |
Rated Power |
kW /(r/min) |
164/2200 |
|
|
Thrust-Pull |
Type |
Pinion and rack drive |
||
|
Max thrust-pull force |
kN |
345/345 |
||
|
Max thrust-pull speed |
m/min |
36 |
||
|
Rotation |
Type |
four motor |
||
|
Torque |
N·m |
12600 |
||
|
Max spindle speed |
r/min |
140 |
||
|
Loader Crance |
/ |
/ |
||
|
Max inclination angle |
° |
20 |
||
|
Pipe |
Diameter × Length |
mm×mm |
Φ73×3000 |
|
|
Mud pump |
Max Flow rate |
L/min |
320 |
|
|
Max pressure |
MPa |
8 |
||
|
Weight |
kg |
10500 |
||
