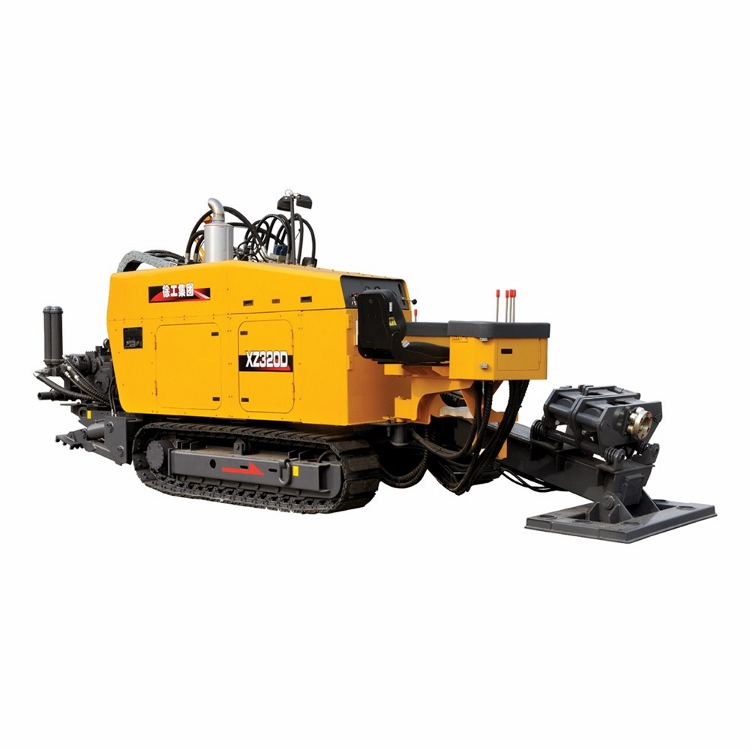

XCMG hdd machine 320kn XZ320D horizontal directional drilling machine price
![](/app/topc/statics/images/close.png)
![XCMG hdd machine 320kn XZ320D horizontal directional drilling machine price](http://www.machmall.com/images/store/357636/item/OAS XZ320D.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):6500×2250×2450mm
- Power(W):154KW
- Model Number:XZ320D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Power Type:Diesel
Specifications
- weight:10500.000kg
- Condition:New
- Moving Type:Other
- Weight:10500kg
- Certification:ISO9001
- Place of Origin:CHINA
- Type:Horizontal Directional Drill
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

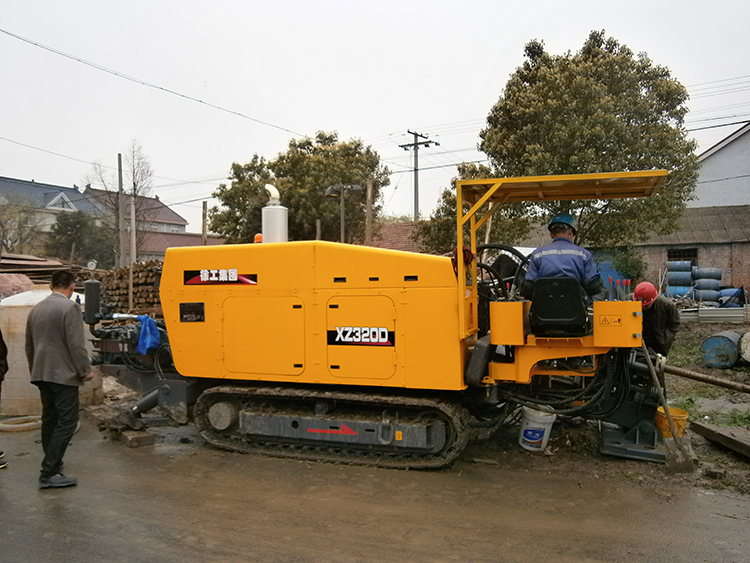

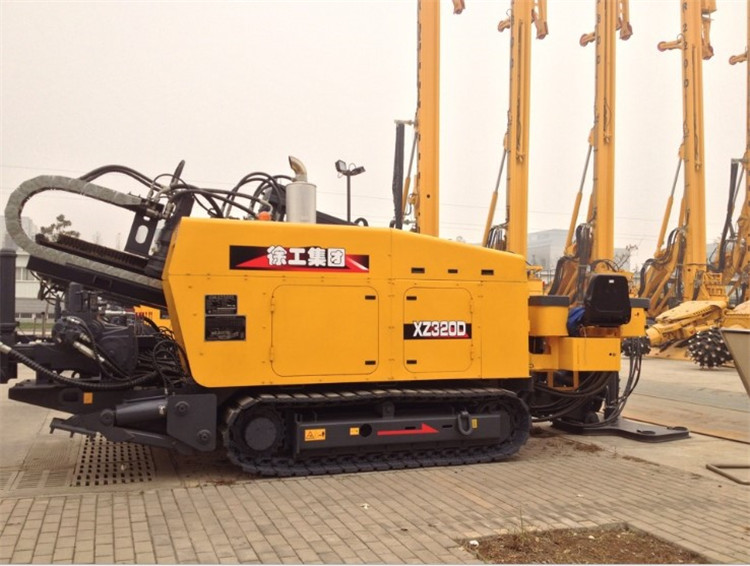

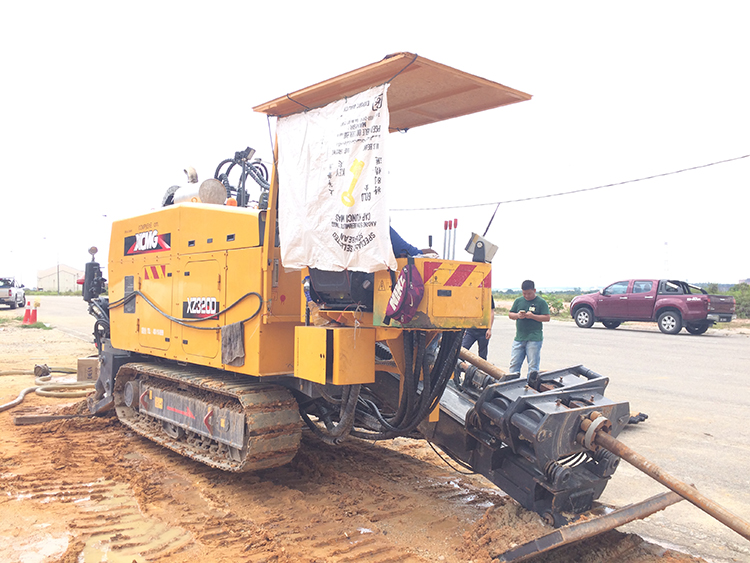

XCMG Official XZ320D HDD Machine Horizontal Directional Drilling Machine.
XZ320D horizontal directional drilling rig with the integral and aesthetic design adopts various advanced technologies and the proprietary technologies of the company, and its main performance parameters and control technologies have reached the international advanced level. The main components of hydraulic system, electrical system and transmission system are of top-grade domestic and international brand, and high reliability.
Technical Characteristics:
1. High power:
160/140kW high horsepower engine is adopted to ensure that the drilling rig can complete pipe laying operations under all kinds of complicated geological conditions.
2. Two-speed unit head:
the unit head operates at a low speed during driling and pullback to ensure smooth construction; and it can slide at an accelerating speed to reduce auxiliary time and improve work efficiency when the removable drill rod reciprocates with no-load.
3. Steel crawler equipped with rubber crawler plate:
it has a minimal impact on roads, lawns and scenic spots.
4. Floating- -type vise:
it applies the proprietary floating-type vise of the company, which can effectively extend the service life of the drill rod.
5. Rotatable control console:
it widens the visual field and reduces the fatigue of the operator to make the drilling rig operation more simple and comfortable.
Description | Unit | XZ320D | ||
Engine | Manufacturers | Dongfeng Cummins | ||
China III | Model | QSB5.9-C210 | ||
Rated Power | kW /(r/min) | 154 / 2200 | ||
China II | Model | 6BTAA5.9-C205 | ||
Rated Power | kW /(r/min) | 153/ 2200 | ||
Thrust-Pull | Type | Pinion and rack drive | ||
Max thrust-pull force | kN | 320/320 | ||
Max thrust-pull speed | m/min | 22 | ||
Rotation | Type | Four motor | ||
Torque | N·m | 12000 | ||
Max spindle speed | r/min | 0~140 | ||
Max inclination angle | ° | 20 | ||
Pipe | Diameter × Length | mm×mm | Φ73×3000 | |
Mud pump | Max Flow rate | L/min | 320 | |
Max pressure | MPa | 8 | ||
Weight | kg | 10500 |
