XCMG 225kn HDD XZ200 china small horizontal directional drilling machine with cummins engine price
![](/app/topc/statics/images/close.png)
![XCMG 225kn HDD XZ200 china small horizontal directional drilling machine with cummins engine price](http://www.machmall.com/images/store/357636/item/XZ200 2.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):6200x2250x2400mm
- Weight:8.5t
- Power(W):112KW
- Model Number:XZ200
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:8500.000kg
- Condition:New
- Moving Type:Other
- Dimension LxWxH:6200x2250x2400mm
- Max.thrust-pull force:225kN
- Max. spindle speed:160r/min
- Max. thrust-pull speed:26m/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

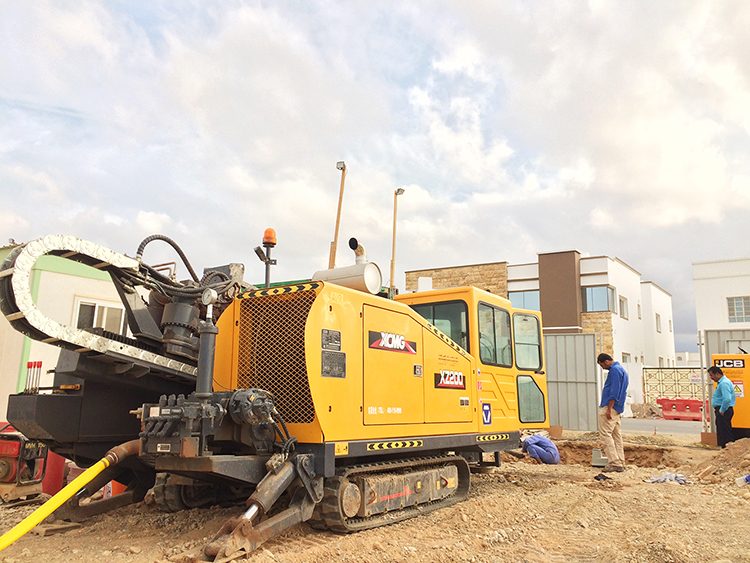

225kn HDD XZ200 china small horizontal directional drilling machine.
XZ200 horizontal directional drilling rig, which has compact structure and attractive appearance, adopts various advanced technologies and the proprietary technologies of the company, and its main performance parameters and control technologies have reached the world advanced level. The main components of hydraulic system, electrical system and transmission system are of top-grade domestic and international brand, and high reliability.
Technical Characteristics:
* Strong power:
112kW horsepower engine is adopted to ensure that the drilling rig can complete pipe laying operations under all kinds of complicated geological conditions.
* Two-speed unit head:
The unit head operates at a low speed during drilling and pullback to ensure smooth construction; and it can slide at an accelerating speed to reduce auxiliary time and improve work efficiency when the removable drill rod reciprocates with no-load.
* Rubber crawler:
It has a minimal impact on roads, lawns and scenic spots.
* Floating-type vise:
It applies the proprietary floating-type vise of the company, which can effectively extend the service life of the drill rod.
* Rotatable control desk:
It widens the visual field and reduces the fatigue of the operator to make the drilling rig operation simpler and more comfortable.
* Automatic handling device of drill rod:
This can improve efficiency, and reduce the operators' labor intensity and the number of construction personnel.
* Automatic anchoring:
Hydraulic drive mode is applied, and the drilling and pullback of anchor is controlled by the oil cylinder and low-speed high torque motor; the operation is easy and convenient.
description |
unit |
XZ200 |
Dimension LxWxH |
mm |
6200x2250x2400 |
Overall weight |
t |
8.5 |
Engine model |
6BTAA5.9-C150 |
|
Engine power |
KW |
112 |
Thrust-pull mode |
Rack and pinion |
|
Max.pullback/thrusting |
KN |
200/200 |
Max.spindle torque |
N.m |
6350 |
Spindle speed |
r/min |
0-155 |
Spindle traveling speed |
m/min |
0-26 |
Max.backreaming diameter |
mm |
600 |
Pipe length(single) |
m |
3 |
Pipe diameter |
mm |
60 |
Entry angle |
0 |
10-22 |
Max.mud flow rate |
L/min |
200/250 |
Max.mud pressure |
bar |
80 |
