XCMG Official XZ1600 Horizontal Directional Drill (HDD)
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Usage
Model Number
Brand Name
Place of Origin
Power Type
Type
Engineering & Construction Machinery
ISO9001
12700×2700×3500mm
30000kg
242kw
--
--
XZ1600
XCMG
China
Diesel
Horizontal Directional Drill
+ Add a Product
+ Add a Product
Summary
- Certification:ISO9001
- Dimension(L*W*H):12700×2700×3500mm
- Weight:30000kg
- Power(W):242kw
- Model Number:XZ1600
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Horizontal Directional Drill
Specifications
- Weight:30000.000kg
- Condition:New
- Moving Type:Crawler
- Max.thrust-pull force:1650kN
- Max. thrust-pull speed:35m/min
- Max. spindle speed:90r/min
- Max. inclination angle:16
- Max. torque:75000N •m
- engine model(China III EU Stage IIIA ):QSL8.9
- rated power(China III EU Stage IIIA ):484 kW (242×2)/(2100 r/min)
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

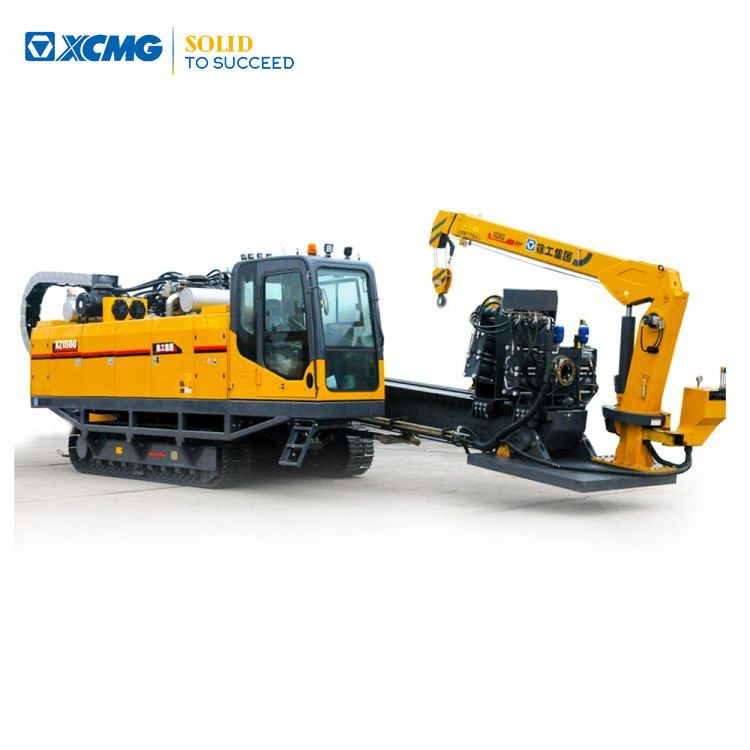

XZ1600 Horizontal Directional Drill
1、Numerical meter display the working torque, push or pull force and so on parametric in working conditions. Electronic sensor has rapid reaction and can show overload immediately. It also endures accuracy and delay of the traditional hydraulic meter’s indication. It solve the matter to depend the operator to calculate the torque and force by the equipment’s switch directive.
2、Dual-engines are used. The HDD has all the motion on the condition of any engine starting. Multi-condition technology of adjusting the travel speed combining with the multi-speed control of rotation and push or pull make HDD be suitable to the complex geology. You can use one engine in the condition of small pipe diameter in order to reduce the fuel consume. So it is inexpensive in construction.
3、The HDD adopt the patent of rotation tooth. It is easy to achieve in clipping the pipe. It is reliable in clamping.
4、The HDD’s rotation adopt closed hydraulic system and it’s push or pull adopt load sensitivity technology. The main part of hydraulic and electric and transmission are made of world first-class brand products, good performance, good reliability.
5、Cab’s 45 ° rotation enhances comfortable operation.
|
Description |
Unit |
Parameter value |
|
|
Engine |
Manufacturers |
Cummins |
|
|
Model |
QSL8.9 |
||
|
Rated Power |
kW /（r/min） |
484 / 2100 |
|
|
Thrust-Pull |
Max thrust-pull force |
kN |
1650 |
|
Max thrust-pull speed |
m/min |
35 |
|
|
Rotation |
Torque |
N·m |
75000 |
|
Max spindle speed |
r/min |
90 |
|
|
Loader Crance |
Max. Lifting weight |
t |
3.2 |
|
Loading capacity |
t·m |
6.4 |
|
|
Max inclination angle |
° |
16 |
|
|
Travel
driving |
Type |
Steel crawler self-propelled |
|
|
Traveling speed |
Km/h |
1.5 |
|
|
Pipe |
Diameter × Length |
mm×mm |
Φ127×6000 |
|
Weight |
kg |
30000 |
|
