XCMG official 600m truck mounted deep water well drilling rig XSL6/320 for sale
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):4500*2300*8500mm
- Weight:130000kg
- Usage:Water Well
- Model Number:XSL6/320
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
- Power Type:Diesel
- Type:Deep Water Well Drilling Rig
Specifications
- Weight:130000.000kg
- Condition:New
- Moving Type:Other
- Drilling depth:600m
- Max. lifting capacity:320kN
- Max. feeding capacity:100kN
- Max. lifting speed:25m/min
- Max. torque:13400N·m
- Hoisting capacity:30kN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 600m truck mounted deep water well drilling rig
XSL6/320.
XSL series deep water well drilling rig uses full
hydraulic control and the top drive to drive the rotation of drilling tools
with very high drilling efficiency. Reasonable overall layout uses the
tractor-mounted or all terrain chassis for transportation.

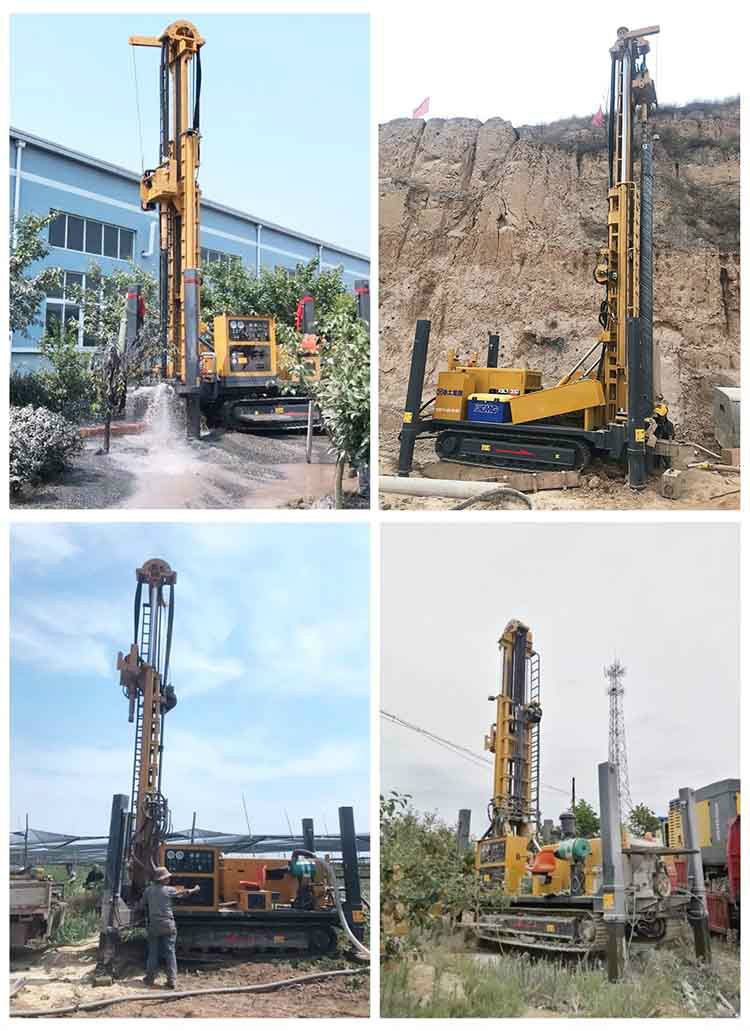

Very flexible in difficult roads, it can be widely used
in many fields such as resource exploration of hydrology wells, coalbed
methane, shallow layer of shale gas, terrestrial heat, etc., and can also be
used for coal-mine gas exploitation or salvage work.

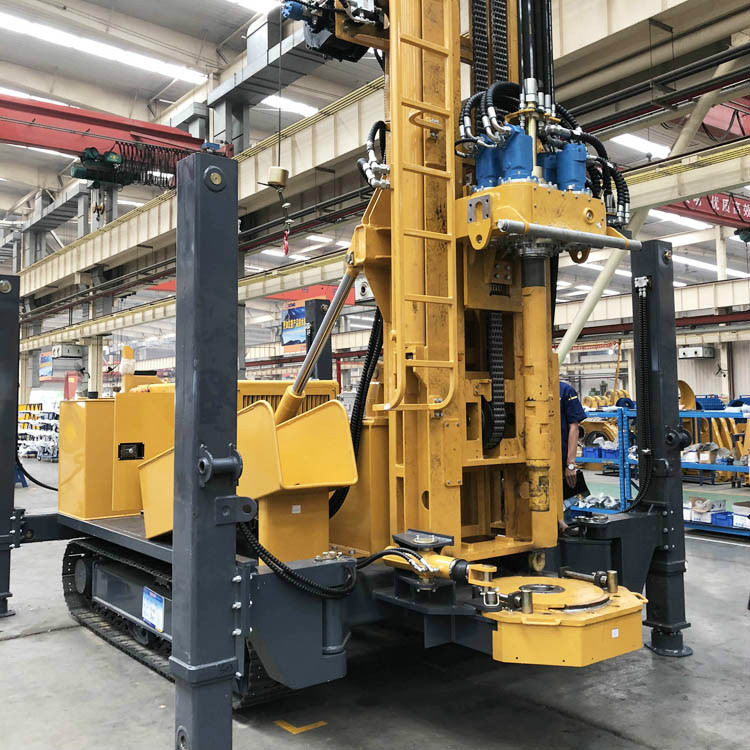

The top-mounted driving head principal shaft has a great
drift diameter, which is suitable for many kinds of construction work such as
slurry drilling, air drilling, and air foam drilling, meeting the demands of
well-drilling in different terrain strata.
Performance Characteristics:
1.Mature and reliable hydraulic top drive power head with
large bearing capacity and good sealing effect.
2.The gap adjustable telescopic drill collar can meet the
requirements of long casing construction and has high work efficiency.
3.Unique hydraulic matching technology for high system
efficiency.
4.Integrated visualization pressurizes and pressurize
decompression feed system for fine adjustment of drilling pressure according to
drilling depth.

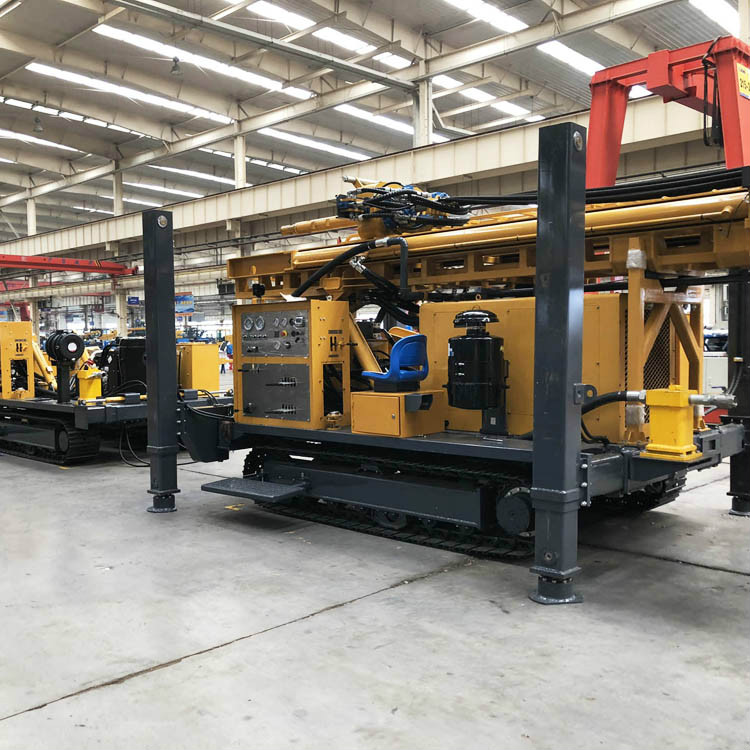

5.Four hydraulic high supporting legs are provided to
achieve rapid leveling of the rig without lifting.
6.The swing-type centering device provides a wide working
space when working.
|
Parameter |
Units |
XSL6/320 |
|
|
Drilling capacity |
Max. drilling depth |
m |
600(Φ89) |
|
Max. drilling diameter |
mm |
450 |
|
|
Feeding system |
Max. lifting capacity |
kN |
320 |
|
Max. feeding capacity |
kN |
100 |
|
|
Max. lifting speed |
m/min |
25 |
|
|
Max. feeding speed |
m/min |
35 |
|
|
Stroke |
mm |
5000 |
|
|
Top drive |
Max. torque |
N·m |
13400 |
|
Speed |
r/min |
0-500 |
|
|
I.D |
mm |
76 |
|
|
Floating distance |
mm |
70 |
|
|
Max. tilting angle |
o |
/ |
|
|
Deck engine |
Type |
/ |
CUMMINS 6BTAA5.9-C180 |
|
Rated power |
kW |
132 |
|
|
Main winch |
Hoisting capacity |
kN |
30 |
|
Tool winch |
Hoisting capacity |
kN |
45 |
|
Breakout device |
Max. breakout torque |
kN |
25000 |
|
Vise clamping range |
m/min |
Customized |
|
|
Mud pump |
Max. flow |
L/min |
/ |
|
Max. pressure |
MPa |
/ |
|
|
Foam pump |
Max. flow |
L/min |
/ |
|
Max. pressure |
MPa |
/ |
|
|
Mud pipe |
I.D |
mm |
55 |
|
Max. pressure |
MPa |
15 |
|
|
Chassis |
Drive mode |
/ |
Crawler Chassis |
|
Rated power |
kW |
/ |
|
|
Highest speed |
km/h |
2.5 |
|
|
Max. climbing gradient |
% |
45 |
|
|
Working dimension |
mm |
4500x2300x8500 |
|
|
Transportation dimension |
mm |
8500x2300x3300 |
|
|
Weight |
t |
13 |
|
