XCMG 400m portable water drilling rig machine XSL4/200 for sale
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):6540*2000*2630mm
- Weight:105000kg
- Power(W):97KW
- Model Number:Water Well
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Power Type:Diesel
- Type:Deep Water Well Drilling Rig
Specifications
- Weight:105000.000kg
- Condition:New
- Moving Type:Crawler
- Max. drilling depth:400m
- Drive mode:Crawler Chassis
- Engine type:Cummins
- Rated speed:2200r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

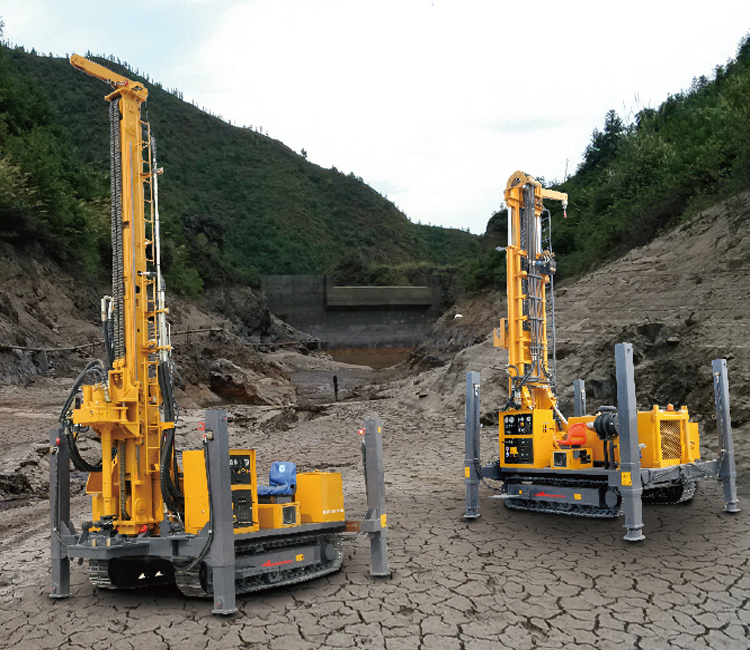

XCMG 400m portable water drilling rig machine XSL4/200.
XSL series water well drill rig uses full hydraulic control and the top
drive to drive the rotation of drilling tools with very high drilling
efficiency. Reasonable overall layout uses the tractor-mounted or all terrain
chassis for transportation with good maneuverability.
Very flexible in difficult roads, it can be widely used in many fields
such as resource exploration of hydrology wells, coalbed methane, shallow layer
of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas
exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter,
which is suitable for many kinds of construction work such as slurry drilling,
air drilling, and air foam drilling, meeting the demands of well-drilling in
different terrain strata.
Performance Characteristics:
1.With large bearing capacity and good sealing effect.
2.Meet the requirements of long casing construction and has high work
efficiency.
3.Unique hydraulic matching technology for high system efficiency.
4.Fine adjustment of drilling pressure according to drilling depth.
5.Achieve rapid leveling of the rig without lifting.
6.Provides a wide working space when working.
Parameter | Units | XSL4/200 | |
Drilling capacity | Max drilling depth | m | 400 |
Max drilling diameter | mm | Φ400 | |
Engine | Model | / | QSB3.9-C130 |
Rated power | kW | 97 | |
Rated speed | r/min | 2200 | |
Feeding system | Lifting force | kN | 200 |
Speed of fast lifting | m/min | 30 | |
Crowd force | kN | 100 | |
Speed of fast putting down | m/min | 60 | |
Power unit Stroke | mm | 6600 | |
Power unit | Torque | Nm | 9200/4600 |
Rotating speed | r/min | 140/72 | |
Principal axis Hole diameter | mm | Φ55 | |
Tool winch | Lifting force | kN | 15 |
system | Travel speed | km/h | 2.5 |
Grade ability | % | 21 | |
Legs stroke | mm | 1600 | |
Drilling rods diameter | / | mm | Φ89/Φ102 |
Dimension | Length × Width ×Height | mm | 6540×2000×2630 |
Work dimension | Length × Width ×Height | mm | 4900×3350×9300 |
Overall weight | / | t | 10.5 |
