XCMG truck mounted water well drilling rig XSL4/200 China 400m deep rig machine price
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):6540*2000*2630mm
- Weight:105000kg
- Power(W):97KW
- Usage:Water Well
- Model Number:XSL4/200
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
- Power Type:Diesel
- Type:Deep Water Well Drilling Rig
Specifications
- Weight:105000.000kg
- Condition:New
- Moving Type:Other
- Max. drilling depth:400m
- Drive mode:Crawler Chassis
- Engine type:Cummins
- Rated speed:2200r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG truck mounted water well drilling rig XSL4/200 China
400m deep rig machine.

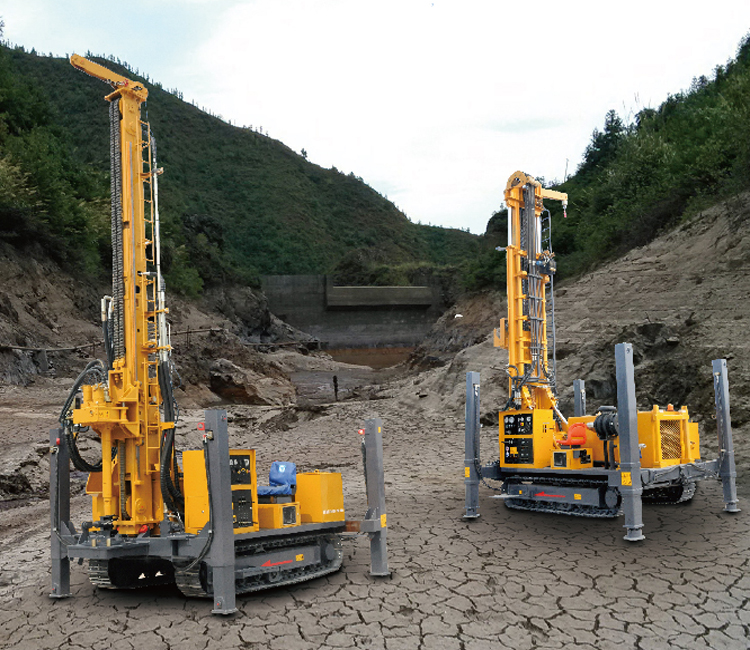

XSL series deep water well drilling rig uses full
hydraulic control and the top drive to drive the rotation of drilling tools
with very high drilling efficiency. Reasonable overall layout uses the
tractor-mounted or all terrain chassis for transportation with good
maneuverability.
Very flexible in difficult roads, it can be widely used
in many fields such as resource exploration of hydrology wells, coalbed
methane, shallow layer of shale gas, terrestrial heat, etc., and can also be
used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great
drift diameter, which is suitable for many kinds of construction work such as
slurry drilling, air drilling, and air foam drilling, meeting the demands of
well-drilling in different terrain strata.
Performance Characteristics:
1.With large bearing capacity and good sealing effect.
2.Meet the requirements of long casing construction and
has high work efficiency.
3.Unique hydraulic matching technology for high system
efficiency.
4.Fine adjustment of drilling pressure according to
drilling depth.
5.Achieve rapid leveling of the rig without lifting.
6.Provides a wide working space when working.
|
Parameter |
Units |
XSL4/200 |
|
|
Drilling capacity |
Max drilling depth |
m |
400 |
|
Max drilling diameter |
mm |
Φ400 |
|
|
Engine |
Model |
/ |
QSB3.9-C130 |
|
Rated power |
kW |
97 |
|
|
Rated speed |
r/min |
2200 |
|
|
Feeding system |
Lifting force |
kN |
200 |
|
Speed of fast lifting |
m/min |
30 |
|
|
Crowd force |
kN |
100 |
|
|
Speed of fast putting down |
m/min |
60 |
|
|
Power unit Stroke |
mm |
6600 |
|
|
Power unit |
Torque |
Nm |
9200/4600 |
|
Rotating speed |
r/min |
140/72 |
|
|
Principal axis Hole diameter |
mm |
Φ55 |
|
|
Tool winch |
Lifting force |
kN |
15 |
|
system |
Travel speed |
km/h |
2.5 |
|
Grade ability |
% |
21 |
|
|
Legs stroke |
mm |
1600 |
|
|
Drilling rods diameter |
/ |
mm |
Φ89/Φ102 |
|
Dimension |
Length × Width ×Height |
mm |
6540×2000×2630 |
|
Work dimension |
Length × Width ×Height |
mm |
4900×3350×9300 |
|
Overall weight |
/ |
t |
10.5 |
