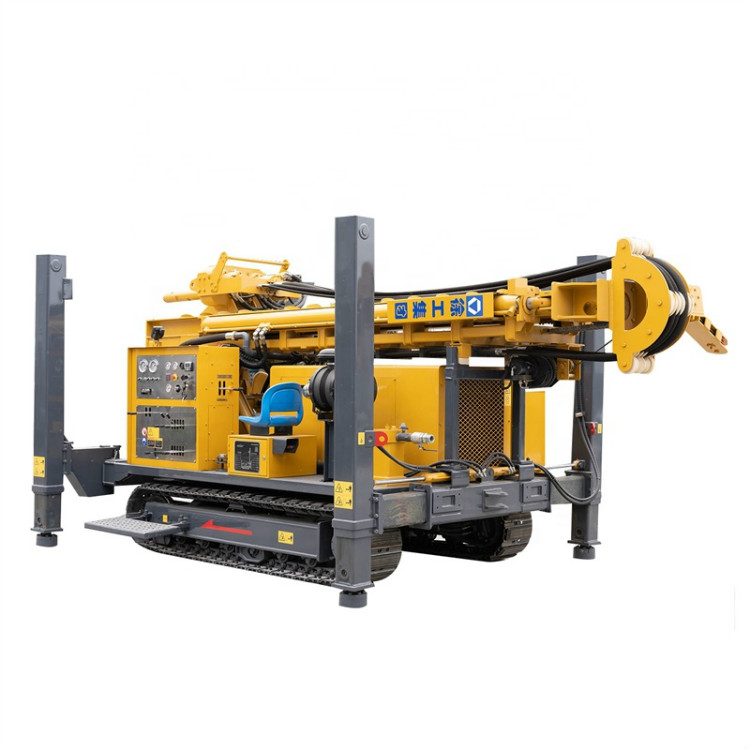

XCMG Official 400 Meter Water Well Drilling Rig XSL4/200 China Water Well Drilling Rig Machine for Sale
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):6540×2000×2630
- Weight:10.5t
- Usage:Water Well
- Model Number:XSL4/200
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Deep (Water) Well Drilling Rig
Specifications
- Weight:10500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 10.5ton Water Well Drilling Rig XSL4/200.
XSL series deep(water) well drilling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
Performance Characteristics:
* Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.
* The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work efficiency.
* Unique hydraulic matching technology for high system efficiency.
* Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of drilling pressure according to drilling depth.
* Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without lifting.
* The swing-type centering device provides a wide working space when working.
Parameter | Units | XSL4/200 | |
Drilling capacity | Max drilling depth | m | 400 |
Max drilling diameter | mm | Φ400 | |
Engine | Model | / | QSB3.9-C130 |
Rated power | kW | 97 | |
Rated speed | r/min | 2200 | |
Feeding system | Lifting force | kN | 200 |
Speed of fast lifting | m/min | 30 | |
Crowd force | kN | 100 | |
Speed of fast putting down | m/min | 60 | |
Power unit Stroke | mm | 6600 | |
Power unit | Torque | Nm | 9200/4600 |
Rotating speed | r/min | 140/72 | |
Principal axis Hole diameter | mm | Φ55 | |
Tool winch | Lifting force | kN | 15 |
system | Travel speed | km/h | 2.5 |
Grade ability | % | 21 | |
Legs stroke | mm | 1600 | |
Drilling rods diameter | / | mm | Φ89/Φ102 |
Dimension | Length × Width ×Height | mm | 6540×2000×2630 |
Work dimension | Length × Width ×Height | mm | 4900×3350×9300 |
Overall weight | / | t | 10.5 |
