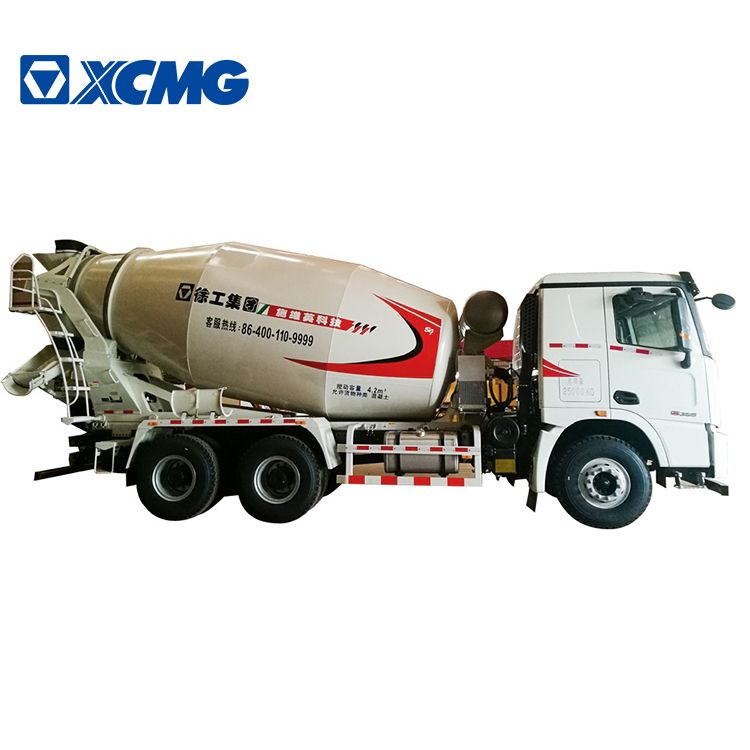

XCMG Official XSC3303 Cement Mixer Mobile Self Loading Concrete Mixer Truck Price for Sale
![](/app/topc/statics/images/close.png)
![XCMG Official XSC3303 Cement Mixer Mobile Self Loading Concrete Mixer Truck Price for Sale](/images/store/357636/item/G10K 1 (6).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:ISO/CE9001
- Dimension(L*W*H):8390×2500×3900MM
- Weight:11700KG
- Power(W):206KW
- Model Number:XSC3303
- Brand Name:XCMG
- Place of Origin:JiangSu,China
Specifications
- weight:11700.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official XSC3303 Cement Mixer Mobile Self Loading Concrete Mixer Truck.
1.Efficial Mixing Technology
Large rise angle is designed at front cone to provide stronger mixing capacity and more uniform mixing, with a concrete slump change at all stages of ≤ 5%;Unique continuous trace design is used for transitional blade to ensure that mixing drum has no axial dead angle, with a lower residual rate of below 0.4%;SCHWING’s large-bend arc-shaped blade design is used at rear cone to provide better concrete fluidity, with charging and discharging speed increased by 10%.
2.Tank Technology of Large Capacity and Low Angle
SCHWING’s blade design of variable height is used for mixing drum, together with optimized guide pipe, to provide stronger material sealing capacity and higher filling rate, thus improving the loading capacity of the tank by 6%;Low dip angle is designed, with the angle 5% lower than that of its counterparts and the stability improved by 18% under equivalent loading capacity.
3.Comprehensive Improvement of Key Parts’ Reliability
Optimized matching of drum body and blade steel plate realizes equivalent service life of mixing system;Feed hopper and chute are made of multilayer high-strength wear-resistant liner plate, with the service life increased by 50%.The combined design of two bent arc-shaped rear beams and triangle stayed beam structure is used for rear support to provide super-strong bearing capacity, with fatigue life increased by 30%, sturdy and durable;The adoption of hydraulic parts of famous brands and transmission shaft of long service life improves the system’s reliability by once.
4.Application of Schwing’s Advanced Manufacturing Technology
Special cutting, rolling and assembly equipments are used for the manufacturing of mixing drum to provide higher accuracy in form and position, better drum performance and higher overall stability.Domestically initiative cold pressing spring-back compensation technology is used for spiral blade to provide higher blade molding accuracy and more reliable quality.Structural parts adopt the painting technology of twice ball blasting + twice priming paint + twice finish paint, more durable.
CATEGORY |
ITEM |
UNIT |
XSC3303 |
XSC3305 |
XSC3307 |
Performance of mixing drum |
Rev. |
r/min |
0~14 |
0~14 |
0~14 |
Charging speed |
m³/min |
≥3 |
≥3 |
≥3 |
|
Discharging speed |
m³/min |
≥2 |
≥2 |
≥2 |
|
Residual ratio of discharging |
% |
<0.4% |
<0.4% |
<0.4% |
|
Hydraulic system |
Oil pump |
|
World-famous brand |
||
Motor |
|
World-famous brand |
|||
Speed reducer |
|
World-famous brand |
|||
Water supply |
Volume of water tank |
L |
450 |
450 |
450 |
Overall vehicle |
Chassis model |
|
ZZ1255N3243E1 |
ZZ1255N3243E1 |
ZZ1255N3243E1 |
Curb mass |
Kg |
11700 |
12600 |
12600 |
|
Drive type |
|
6×4 |
6×4 |
6×4 |
|
Wheel base |
mm |
3225+1350 |
3225+1350 |
3225+1350 |
|
Tire |
|
11.00R20 |
11.00R20 |
11.00R20 |
|
PTO way |
|
Flywheel |
|||
Outline dimensions |
mm |
8390×2500×3900 |
8700×2500×3965 |
8700×2500×3965 |
|
Engine |
Model |
|
MC07.28-50 |
MC07.31-50 |
MC07.34-50 |
Rated power |
kW |
206 |
228 |
248 |
|
Fuel |
|
Diesel |
Diesel |
Diesel |
|
Emission standard |
|
China V |
China V |
China V |
