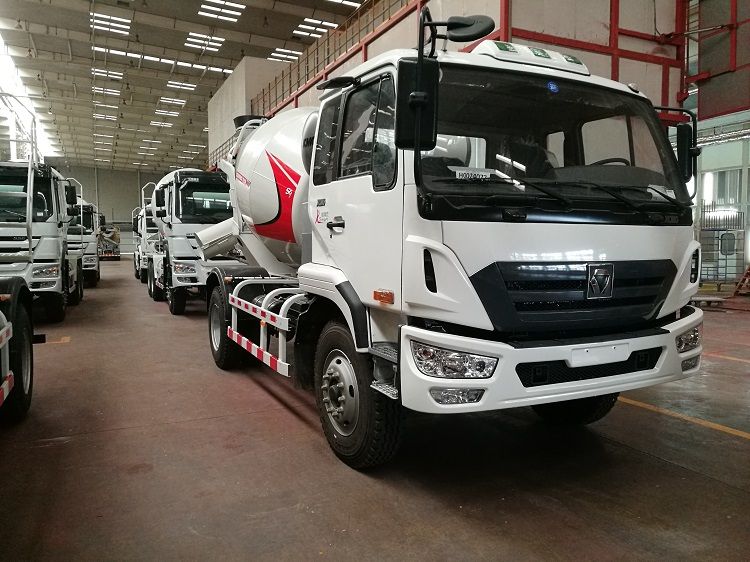

XCMG Official Mobile Concrete Truck Mixer XSC2301 Concrete Mixer Truck Best Price For Sale
![](/app/topc/statics/images/close.png)
![XCMG Official Mobile Concrete Truck Mixer XSC2301 Concrete Mixer Truck Best Price For Sale](/images/store/357636/item/XSC (6).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:ISO/CE9001
- Dimension(L*W*H):7490×2550×3310MM
- Weight:8360KG
- Power(W):105000W
- Model Number:XSC2301
- Brand Name:XCMG
- Place of Origin:JiangSu,China
Specifications
- weight:8360.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official
Mobile Concrete Truck Mixer XSC2301 Concrete Mixer Truck.
1.Efficial
Mixing Technology
Large rise angle
is designed at front cone to provide stronger mixing capacity and more uniform
mixing, with a concrete slump change at all stages of ≤ 5%;Unique continuous
trace design is used for transitional blade to ensure that mixing drum has no
axial dead angle, with a lower residual rate of below 0.4%;SCHWING’s large-bend
arc-shaped blade design is used at rear cone to provide better concrete
fluidity, with charging and discharging speed increased by 10%.
2.Tank
Technology of Large Capacity and Low Angle
SCHWING’s blade
design of variable height is used for mixing drum, together with optimized
guide pipe, to provide stronger material sealing capacity and higher filling
rate, thus improving the loading capacity of the tank by 6%;Low dip angle is
designed, with the angle 5% lower than that of its counterparts and the
stability improved by 18% under equivalent loading capacity.
3.Comprehensive
Improvement of Key Parts’ Reliability
Optimized
matching of drum body and blade steel plate realizes equivalent service life of
mixing system;Feed hopper and chute are made of multilayer high-strength
wear-resistant liner plate, with the service life increased by 50%.The combined
design of two bent arc-shaped rear beams and triangle stayed beam structure is
used for rear support to provide super-strong bearing capacity, with fatigue
life increased by 30%, sturdy and durable;The adoption of hydraulic parts of
famous brands and transmission shaft of long service life improves the system’s
reliability by once.
4.Application of
Schwing’s Advanced Manufacturing Technology
Special cutting,
rolling and assembly equipments are used for the manufacturing of mixing drum
to provide higher accuracy in form and position, better drum performance and
higher overall stability.Domestically initiative cold pressing spring-back
compensation technology is used for spiral blade to provide higher blade molding
accuracy and more reliable quality.Structural parts adopt the painting
technology of twice ball blasting + twice priming paint + twice finish paint,
more durable.
CATEGORY |
ITEM |
UNIT |
XSC2301 |
XSC2303 |
XSC3309 |
Performance of mixing drum |
Rev. |
r/min |
0~14 |
0~14 |
0~14 |
Charging speed |
m³/min |
≥3 |
≥3 |
≥3 |
|
Discharging speed |
m³/min |
≥2 |
≥2 |
≥2 |
|
Residual ratio of discharging |
% |
<0.4% |
<0.4% |
<0.4% |
|
Hydraulic system |
Oil pump |
World-famous brand |
|||
Motor |
World-famous brand |
||||
Speed reducer |
World-famous brand |
||||
Water supply |
Volume of water tank |
L |
450 |
450 |
450 |
Overall vehicle |
Chassis model |
NXG3181D5NAX |
NXG3180D5NAX |
NXG3251D5WCX |
|
Curb mass |
Kg’ |
8360 |
10000 |
15600 |
|
Drive type |
4×2 |
4×2 |
6×4 |
||
Wheel base |
mm |
3800 |
4200 |
4000+1400 |
|
Tire |
10.00R20 |
11.00R20 |
12.00R20 |
||
PTO way |
Flywheel |
||||
Outline dimensions |
mm |
7490×2550×3310 |
7970×2525×3660 |
9885×2500×4000 |
|
Engine |
Model |
YC4EG140-50 |
YC6JA180-50 |
WP10.350E53 |
|
Rated power |
kW |
105 |
132 |
257 |
|
Fuel |
Diesel |
Diesel |
Diesel |
||
Emission standard |
China V |
China V |
China V |
